| Brand Name: | YZY |
| Model Number: | YVT0800PKM-S1 |
| MOQ: | 500 pcs |
| Price: | $11.68-14.5/pieces |
| Payment Terms: | T/T |
1024(H)×600(V) Landscape | 30‑PIN MIPI | 500cd/m² |‑20~+60℃ Automotive & Industrial Grade Display Panel

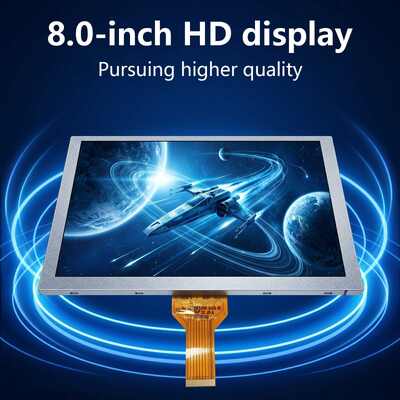

Product Front View
YVT0800PKM‑S1 is an 8.0‑inch normally‑black transmissive a‑Si TFT‑LCD module, landscape resolution 1024(H)×600(V). Adopt RGB vertical‑stripe pixel arrangement, support 16.7M colors with 30‑pin MIPI interface.
With 500cd/m² typical brightness and 1000 contrast ratio. Working temp ‑20℃~+60℃, storage temp ‑30℃~+70℃, suitable for automotive and industrial embedded equipment.
Mechanical Outline Dimension Drawing
| Model Number | YVT0800PKM‑S1 |
| Screen Size | 8.0 inch |
| Resolution | 1024(H) × 600(V) Landscape |
| Interface | 30‑PIN MIPI |
| Brightness(Typ.) | 500 cd/m² |
| Operating Temperature | ‑20℃ ~ +60℃ |
Optical Characteristics & Power‑on Timing Diagram
This module passes complete industrial reliability tests including temperature cycle, vibration, shock and ESD test, to adapt harsh working environment for vehicle and industrial equipment.
Products are inspected according to MIL‑STD‑105E sampling standard before delivery, to guarantee stable quality for mass‑order projects.
Suitable for car‑mounted display, vehicle HMI, industrial control panel and embedded testing instrument.
Welcome inquiry for datasheet, sample and bulk quotation. Please share your project requirements, we will reply you promptly.
