| Brand Name: | YZY |
| Model Number: | YVT1010PKR-S1 |
| MOQ: | 500 |
| Price: | $12.5-15.2/pieces |
| Payment Terms: | T/T |
1024×600 | RGB 24‑bit | ‑20~+70℃ Wide Temp Industrial TFT LCD Panel

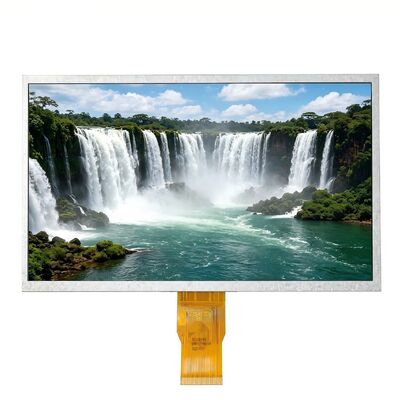

Product Front View
Product Back View
YVT1010PKR‑S1 is a 10.1‑inch Normally‑Black transmissive TFT‑LCD module, equipped with HX8282‑A11+HX8696 driver IC and 42 pieces white LED backlight. It supports 1024×RGB×600 resolution and 16.7M display colors with RGB 24‑bit parallel interface.
This industrial‑grade screen features full‑direction viewing angle, operating temperature ‑20℃ ~ +70℃, storage temperature ‑30℃ ~ +80℃. Passed strict vibration, shock, high‑low temperature reliability tests and meets RoHS requirement, perfect for industrial embedded equipment.
| Model | YVT1010PKR‑S1 |
| Screen Size | 10.1 inch |
| Resolution | 1024 × RGB × 600 |
| Module Size | 235.00(W) × 143.00(H) × 5.20(T) mm |
| Active Area | 222.72(W) × 125.28(H) mm |
| Display Color | 16.7M Colors |
| LCD Type | Normally Black, Transmissive |
| Backlight | 42‑pcs White LED, Typical 140mA |
| Interface | RGB 24‑bit |
| Operating Temp | ‑20℃ ~ +70℃ |
| Storage Temp | ‑30℃ ~ +80℃ |
| Standard | RoHS Compliant |
Optical Characteristics Reference Diagram
YVT1010PKR‑S1 10.1‑inch TFT‑LCD screen is widely used for industrial HMI panels, embedded control devices, test & measuring instruments, vehicle‑mount terminals, smart cabinet, medical auxiliary display, POS equipment, vending machines and self‑service kiosk display solutions.
Welcome to send inquiry for YVT1010PKR‑S1. We are able to offer complete datasheet, sample testing service, bulk order quotation and customized display solution.
Please send over your technical requirements via platform message. Our professional sales team will reply you promptly during working days.
