| Brand Name: | YZY |
| Model Number: | YVO1400VQE-Y2 |
| MOQ: | 500 pcs |
| Price: | $33 / Piece |
| Payment Terms: | T/T |
Designed for embedded systems, industrial control terminals and customized display integration.
|
14.0"
Display Size
|
1920 × 1080
Resolution
|
30 Pin
eDP Interface
|
350 Nits
Typical Brightness
|

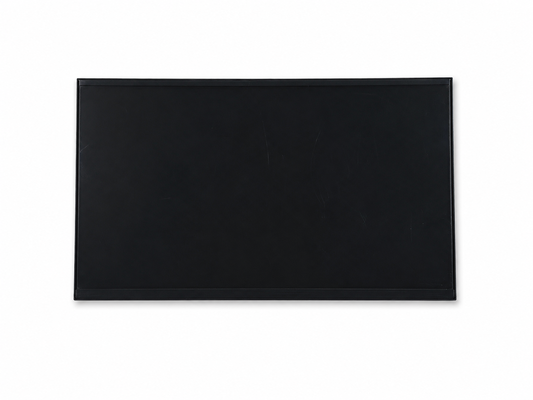

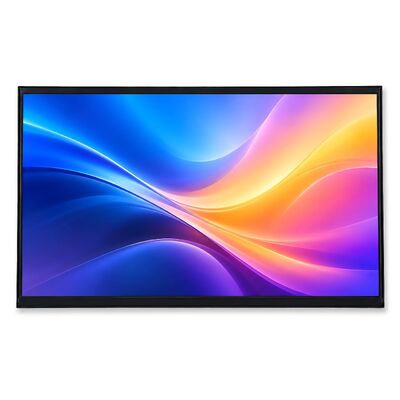

This 14.0-inch TFT LCD module combines 1920 × 1080 full HD resolution, a 30-pin eDP 1.2 interface, 2-lane signal transmission and 350 cd/m² typical brightness. It is suitable for embedded devices, HMI equipment, industrial control and customized electronic systems.
|
Full HD Resolution
Supports 1920 × 1080 native resolution with a 309.31 × 173.99 mm active area.
|
30-Pin eDP 1.2 Interface
2-lane eDP interface with 2.7 Gbps link rate for embedded and OEM integration.
|
|
350 Nits LED Backlight
Typical luminance of 350 cd/m² for clear display performance in indoor equipment applications.
|
Wide Viewing Characteristics
FFS normally black display with wide horizontal and vertical viewing angles.
|
|
MECHANICAL STRUCTURE

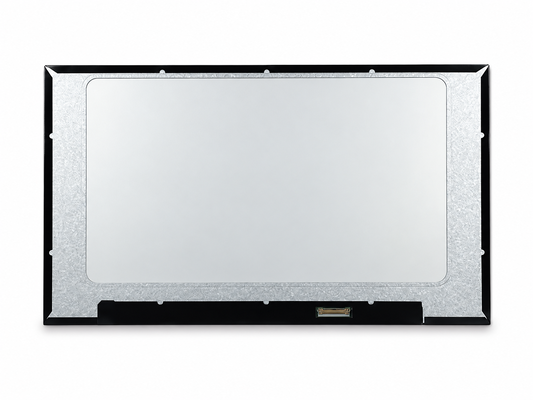

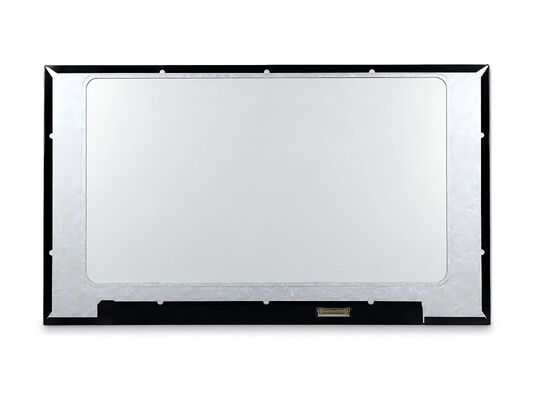

Back-Folded PCB StructureThe module uses a back-folded PCB structure, helping reduce the overall installation depth while keeping the display area compact and clean. The eDP connector and related circuitry are arranged on the rear side according to the terminal layout, making the module suitable for embedded integration and customized equipment design. |
|
SIGNAL INTERFACE
30-Pin eDP 1.2The module uses a 30-pin eDP interface with 2-lane signal transmission. It is designed for embedded systems requiring full HD display output.
|
|
| Parameter | Specification |
| Model | YVO1400VQE-Y2 |
| Display Size | 14.0 inch |
| Resolution | 1920 × 1080 |
| LCD Type | TFT LCD |
| Display Mode | FFS, Normally Black |
| Interface | eDP 1.2 |
| eDP Lanes | 2 Lane |
| Pin Count | 30 Pin |
| Link Rate | 2.7 Gbps |
| Brightness | 350 cd/m² Typ. |
| Minimum Brightness | 300 cd/m² Min. |
| Contrast Ratio | 1200:1 Typ. |
| Viewing Angle | Wide Viewing |
| Display Colors | 16.7M |
| Color Depth | 6bit + 2FRC |
| Color Gamut | 45% NTSC |
| Surface Treatment | Anti-Glare |
| Active Area | 309.31 × 173.99 mm |
| Outline Size | 315.81 × 186.07 × 3.0 mm Max. (W/O PCB) |
| Outline with PCB | 315.81 × 186.07 × 5.2 mm Max. |
| Weight | 285 g Typ. |
| Power Supply | 3.3V Typ. |
| Backlight | Bottom-Edge Single LED Lighting Bar |
| LED Driver | Built-In |
| EDID | On-board EDID |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Please check the size direction, active area and PCB position before mechanical integration.
Suitable for display integration in various electronic and control equipment.
| HMI Equipment | Industrial Control Terminal | Testing Equipment | Embedded Display System |
LCD compatibility depends on brightness, pin assignment, mechanical dimensions, power requirements and embedded configuration.
Send us your interface, mechanical requirements and project quantity for technical evaluation.
