YVO2150VQL-01 large-format TFT LCD module for industrial control terminals, monitoring equipment and customized display integration.

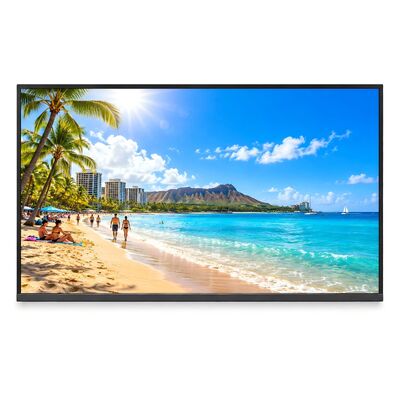

PRODUCT DISPLAY
21.5 Inch · 1920 × 1080 FHD · Active Matrix TFT LCD
21.5"
Display Size
1920 × 1080
FHD Resolution
30 Pin
LVDS Interface
89°
Viewing Angle Typ.
YZY DISPLAY | LCD MODULE SOLUTION
YVO2150VQL-01 Full HD TFT LCD Module
The YVO2150VQL-01 is a 21.5-inch Full HD TFT LCD module supplied by YZY Display, featuring 1920 × 1080 resolution, a 30-pin LVDS interface and an integrated LED backlight assembly. YZY Display supplies the assembled LCD module for equipment manufacturers and display system integrators.
The module supports 16.7 million display colors, a 1500:1 typical contrast ratio and wide viewing angles of 89° in four directions. Its 12.3 mm typical outline depth and 3H hard-coated surface are suitable for integration into industrial control terminals, process monitoring equipment and custom monitor assemblies.
The LCD panel and LED backlight are supplied as an assembled module. A compatible LVDS controller and LED backlight driving circuit are required for system operation.
DISPLAY FEATURES
Key Product Features
21.5" Full HD Display
1920 × 1080 resolution and 16.7 million display colors for graphical interfaces, equipment displays and monitoring systems.
30-Pin LVDS Interface
LVDS signal connection supporting two pixels per clock for integration with compatible display controller boards.
Integrated LED Backlight
Supplied as an assembled TFT LCD module with an integrated LED backlight unit and dedicated backlight power connection.
Wide Viewing Angle
89° typical viewing angles in four directions, 1500:1 typical contrast ratio and SR16 surface treatment with 3H coating.
MODULE CONSTRUCTION
Slim Module Profile
The YVO2150VQL-01 features a typical 485 × 283.5 × 12.3 mm module outline. The side-view image shows its panel profile for customer-designed housings and equipment integration.
LED BACKLIGHT ASSEMBLY
Integrated LED Backlight & Power Connection

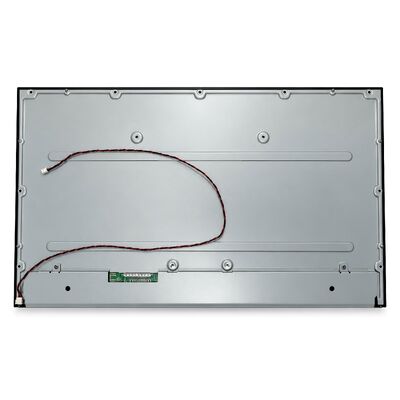

YZY Display supplies the LCD module with an assembled LED backlight unit. The rear view shows the metal back structure and the dedicated LED backlight power connection.
Separate LCD and Backlight Power
The LCD electronics operate with a 5.0V typical VDD supply. The LED backlight requires a compatible driving circuit and separate backlight power connection. The LCD module does not include a complete monitor controller system.
SIGNAL INTERFACE
30-Pin LVDS Signal Interface
The module supports LVDS data transmission with two pixels per clock. Confirm the connector pin assignment and controller compatibility before integration.
Interface Specifications
InterfaceLVDS
Pin Count30 Pin
Signal Format2 Pixels / Clock
Color Depth6-bit + Hi-FRC
LCD VDD5.0V Typ.
VDD Range4.5–5.5V
Display Colors16.7M
Rear LVDS Connector Detail
Close-up of the LCD signal connector and rear circuit-board area. The LED backlight connection is separate from the LCD signal interface.
PRODUCT DATA
Technical Specifications
Parameter
Specification
Model Number
YVO2150VQL-01
Brand
YZY Display
Display Size
21.5 Inch
LCD Type
Active Matrix TFT LCD
Display Mode
Transmissive / Normally Black
Resolution
1920 × 1080 FHD
Aspect Ratio
16:9
Signal Interface
LVDS / 2 Pixels per Clock
Pin Count
30 Pin
LCD Power Supply
4.5–5.5V / 5.0V Typ.
Display Colors
16.7 Million
Color Depth
6-bit + Hi-FRC
Pixel Arrangement
RGB Vertical Stripe
Pixel Pitch
0.24795 × 0.24795 mm
Viewing Angle
89° Typ. / Four Directions
Contrast Ratio
1500:1 Typ.
BLU Brightness
250 cd/m² (BLU Value)
Response Time
14 ms Typ.
Surface Treatment
SR16 / 3H Hard Coating / Haze 25
Active Area
476.064 × 267.768 mm
Outline Dimensions
485 × 283.5 × 12.3 mm Typ.
LED Backlight
Integrated / 1 LED Light Bar
LED Packages
72 (4 Parallel × 18 Series)
LED Lifetime
30,000 Hours
Operating Temperature
0°C to +50°C
Storage Temperature
-20°C to +60°C
Touch Type
Not specified
LCD Driver IC
Not specified
HDMI Driver Board
Not specified
Complete Monitor Housing
Not specified
Brightness note: 250 cd/m² is stated as BLU Brightness in the product specification. Final LCD surface luminance is not separately specified.
MECHANICAL DESIGN
Module Dimensions & Mounting Layout
Front outline dimensions, active display area and rear mounting structure for mechanical integration. All dimensions are shown in millimeters.
485 mm
Outline Width
283.5 mm
Outline Height
12.3 mm
Thickness Typ.
Front Mechanical Drawing
Module outline and active display area
Rear Mechanical Drawing
Rear structure and mounting dimensions
For mechanical integration, verify all mounting positions, connector clearances and dimensional tolerances against the latest approved product drawings.
APPLICATION SCENARIOS
Display Integration Applications
The 21.5-inch FHD TFT LCD module is suitable for display integration into industrial control terminals, process monitoring equipment, desktop displays and customized monitor assemblies.
Application images show examples of possible finished equipment. The product supplied is the LCD module only.
PROJECT EVALUATION
LCD Selection for Your Equipment
Successful integration requires matching the LVDS controller, 30-pin connector assignment, LCD supply voltage, backlight driving circuit and mechanical dimensions with your equipment design.
For sample evaluation and project quotation, please provide your controller board model, application, mechanical requirements and estimated purchase quantity. Our team can help review your LCD module requirements before sampling.
Need a 21.5" FHD LVDS LCD Module?
Contact YZY Display for YVO2150VQL-01 module information, project evaluation and quotation.
