BOE DV215FHB-N11 TFT LCD panel for integration into industrial control terminals, process monitoring equipment and custom display assemblies.
BOE TFT LCD MODULE
BOE DV215FHB-N11 · 21.5 Inch · 1920 × 1080 FHD
21.5"
Display Size
1920 × 1080
Full HD
30 Pin
LVDS Interface
5.0V
LCD VDD Typ.
BOE FULL HD TFT LCD PANEL

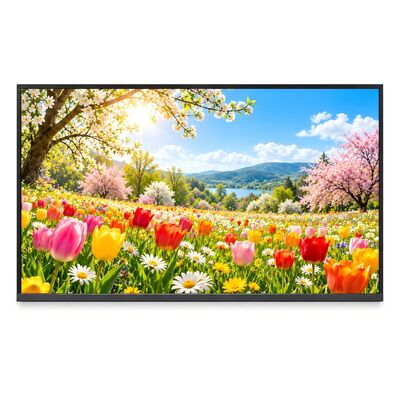

BOE DV215FHB-N11 21.5" TFT LCD Module
The DV215FHB-N11 is a 21.5-inch Full HD TFT LCD module from BOE, featuring 1920 × 1080 resolution, a 30-pin LVDS interface and 16.7 million display colors. The panel uses an active-matrix TFT structure with a transmissive, normally black display mode.
With a 1500:1 typical contrast ratio, wide viewing angles and a 3H hard-coated display surface, this BOE LCD panel is suited to integration into industrial control terminals, monitoring equipment and customer-designed display assemblies.
The module provides an LVDS signal interface and requires a compatible LCD controller and separate LED backlight driving circuit for system integration.
PRODUCT FEATURES
Key Features
BOE TFT LCD Panel
BOE DV215FHB-N11 active-matrix TFT LCD module, developed in a 21.5-inch Full HD display format for equipment integration projects.
1920 × 1080 Full HD
Full HD resolution with a 476.064 × 267.768 mm active display area, suitable for graphical interfaces and monitoring information.
30-Pin LVDS Interface
LVDS signal interface supporting two pixels per clock for connection with a compatible LCD controller board.
Wide Viewing Angle
89° typical viewing angle in all four directions, 1500:1 typical contrast ratio and SR16 surface treatment with 3H coating.
MODULE CONSTRUCTION

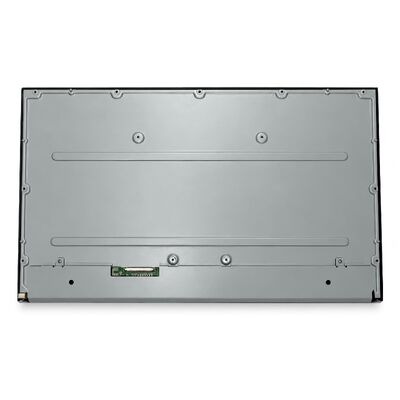

BOE LCD Module Rear Structure
Rear construction, metal backing and connector position for mechanical integration.
Compact Panel Construction
The DV215FHB-N11 module has typical outline dimensions of 485 × 283.5 × 12.3 mm. The rear structure should be checked against the mechanical drawings when designing a monitor enclosure or mounting assembly.
Module Outline485 × 283.5 mm
Thickness12.3 mm Typ.
Active Area476.064 × 267.768 mm
LCD Connection30 Pin LVDS
SIGNAL INTERFACE
30-Pin LVDS Signal Interface
BOE DV215FHB-N11 uses an LVDS interface with two pixels per clock. Interface compatibility should be verified before connecting the LCD module.
Interface Specifications
InterfaceLVDS
Pin Count30 Pin
Signal Format2 Pixels / Clock
Color Depth6-bit + Hi-FRC
LCD Supply5.0V Typ.
VDD Range4.5–5.5V
Display Colors16.7M
Rear Connector Detail
Close-up view of the rear connector and circuit-board area.
ELECTRICAL INTEGRATION
LCD and LED Backlight Requirements
LCD Electronics
LCD VDD is specified at 5.0V typical, with an operating supply range of 4.5V to 5.5V.
LED Backlight
The panel uses one LED light bar with 72 LED packages. A compatible backlight driver is required for system integration.
The 5V LCD supply and LED backlight power requirements are separate. Verify the backlight driving parameters against the approved BOE specification before circuit design.
BOE PRODUCT DATA
Technical Specifications
Parameter
Specification
Brand
BOE
Model Number
DV215FHB-N11
Display Size
21.5 Inch
LCD Type
Active Matrix TFT LCD
Display Mode
Transmissive / Normally Black
Resolution
1920 × 1080 FHD
Interface
LVDS / 2 Pixels per Clock
Pin Count
30 Pin
LCD Power Supply
5.0V Typ. / 4.5–5.5V
Display Colors
16.7 Million
Color Depth
6-bit + Hi-FRC
Pixel Arrangement
RGB Vertical Stripe
Pixel Pitch
0.24795 × 0.24795 mm
Viewing Angle
89° Typ. / Four Directions
Contrast Ratio
1500:1 Typ.
BLU Brightness
250 cd/m² (Datasheet BLU Value)
Response Time
14ms Typ.
Surface Treatment
SR16 / 3H Hard Coating / Haze 25
Active Area
476.064 × 267.768 mm
Outline Dimensions
485 × 283.5 × 12.3 mm Typ.
Backlight
1 LED Light Bar / 72 LED Packages
LED Lifetime
30,000 Hours
Operating Temperature
0°C to +50°C
Storage Temperature
-20°C to +60°C
Driver IC
Not specified
Touch Type
Not specified
HDMI Driver Board
Not specified
The 250 cd/m² figure is identified as BLU Brightness in the BOE specification. Finished-panel surface luminance should be confirmed separately if required.
MECHANICAL DIMENSIONS
BOE DV215FHB-N11 Module Dimensions
Reference dimensions for display installation and enclosure design.
485 mm
Outline Width
283.5 mm
Outline Height
12.3 mm
Typical Thickness
Active Display Area
476.064 × 267.768 mm
Refer to the approved BOE mechanical drawings for connector placement, tolerances and mounting details.
APPLICATION FIELDS
Applications for BOE FHD LCD Modules
The 21.5-inch TFT LCD module can be integrated into customer-designed display equipment using a compatible LVDS controller.
Industrial Control
LCD integration into machine control terminals and equipment displays.
Process Monitoring
Display panels for equipment status, process data and monitoring interfaces.
Monitor Integration
LCD panel component for customer-designed monitor assemblies.
PROJECT EVALUATION
Selecting the Right BOE LCD Panel
When selecting the DV215FHB-N11 for equipment integration, verify the 30-pin LVDS signal assignment, LCD supply voltage, LED backlight driving requirements and mechanical dimensions.
For sample evaluation and project quotation, please provide your controller board model, mechanical requirements, application details and estimated purchase quantity.
This product is a TFT LCD module, not a complete HDMI monitor.
Need the BOE DV215FHB-N11 LCD Module?
Contact YZY Display with your required quantity, LVDS controller information and project requirements.
