Compact portrait LCD module for embedded devices, industrial control equipment and customized graphical interfaces.
PRODUCT DISPLAY
3.2"
Display Size
240 × 320
Resolution
12 Pin
FPC Connection
SPI
4-Line Interface
EMBEDDED DISPLAY SOLUTION

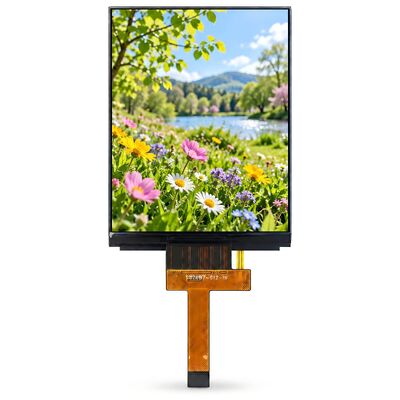

3.2" IPS TFT LCD Module for Compact Equipment
The YVO0320EGS-J1 is a 3.2-inch IPS TFT LCD module featuring 240 × 320 resolution, a 12-pin 4-line SPI interface and ST7789 driver IC. Its portrait structure and compact dimensions make it suitable for integration into embedded electronics, measurement equipment and customized display systems.
Key Features
IPS Wide Viewing
IPS TFT panel with 80° typical viewing angles in all four directions and normally black display mode.
240 × 320 Resolution
Portrait display format with a 48.60 × 64.80 mm active area for graphical information.
4-Line SPI Interface
12-pin FPC interface for serial communication with compatible microcontrollers and embedded systems.
The LCD module has a compact outline of 52.60 × 73.48 mm and a module thickness of 2.30 mm.

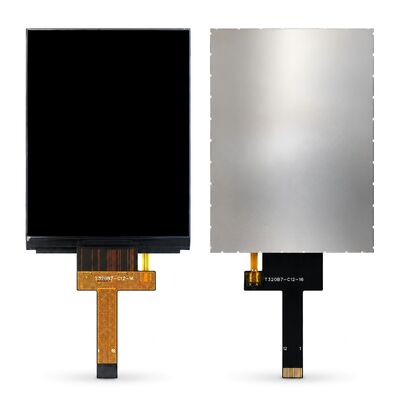

The front and rear views show the original panel, metal backing and flexible printed circuit construction.
LCD TypeIPS TFT
Module Size52.60 × 73.48 mm
Thickness2.30 mm
FPC Connection12 Pin / 0.50 mm Pitch
SIGNAL INTERFACE
12-Pin 4-Line SPI Interface
The ST7789-based module uses a serial SPI connection for display communication with compatible host controllers.
Interface Specifications
Interface4-Line SPI
Pin Count12 Pin
FPC Pitch0.50 mm
Driver ICST7789
VDD Supply2.4–3.3V
VDD Typical2.75V
12-Pin Signal Assignment
Pin
Signal
Pin
Signal
1
GND
7
TE
2
RESX
8
GND
3
SDA
9
VDD
4
SCL
10
LED-A
5
CSX
11
LED-K
6
DCX
12
GND
PRODUCT DATA
Technical Specifications
Parameter
Specification
Model
YVO0320EGS-J1
Display Size
3.2 Inch
LCD Type
IPS TFT LCD
Display Mode
Transmissive / Normally Black
Resolution
240 × 320
Interface
4-Line SPI
Pin Count
12 Pin
FPC Pitch
0.50 mm
Driver IC
ST7789
Viewing Direction
ALL
Viewing Angle
80° Typ. / Four Directions
Contrast Ratio
1200:1 Typ.
Display Colors
262K
Color Arrangement
RGB Vertical Stripe
Brightness
Not specified
Power Supply VDD
2.4–3.3V / 2.75V Typ.
Backlight
White LED
Backlight Voltage
3.0V Typ.
Backlight Current
120mA Typ.
LED Lifetime
10,000 Hours Typ.
Active Area
48.60 × 64.80 mm
Module Size
52.60 × 73.48 × 2.30 mm
Weight
16.78 g
Operating Temperature
-20°C to +70°C
Storage Temperature
-30°C to +80°C
Touch Type
Not specified
MECHANICAL DESIGN
Module Dimensions & FPC Layout
Outline dimensions, active display area, FPC length and contact position for mechanical integration.
APPLICATIONS
Compact Embedded Display Applications
Designed for display integration in portable instruments, monitoring devices and industrial control systems.
Handheld Tester
Environment Monitor
Industrial Control
Application examples are for reference. The product supplied is the LCD module only.
LCD Selection for Your Project
Display integration requires matching the SPI interface, pin assignment, power supply and mechanical dimensions with the host controller and device design.
For project evaluation, please provide your controller model, interface requirements, installation dimensions and estimated quantity. Our team can help review the display requirements before sampling.
Need a 3.2" SPI TFT LCD Module?
Send us your interface requirements, mechanical dimensions and project quantity for technical evaluation.
