| Model Number: | YT0700C1I-Q1 |
| MOQ: | 500 |
| Price: | $15-25/pieces |
| Payment Terms: | T/T |
| Supply Ability: | 10000pieces |
|

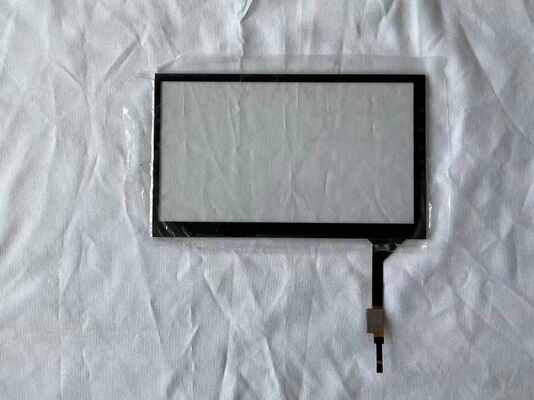

7.0 Inch G+G Capacitive Touch Panel, GT911 IIC 5‑Point Multi‑Touch Screen
|
|
|
Parameter
|
Value
|
|
Model No.
|
YT0700C1I‑Q1
|
|
Product Name
|
7.0" G+G Capacitive Touch Panel
|
|
Touch Size
|
7.0 Inch
|
|
Structure
|
G+G (Glass to Glass)
|
|
Cover Lens Thickness
|
0.7 mm
|
|
Sensor Thickness
|
0.7 mm
|
|
Lens Color
|
Black
|
|
Active Area(W*L)
|
155.21 * 86.92 mm
|
|
View Area(W*L)
|
154.21 * 85.92 mm
|
|
XY Channel
|
20 * 12
|
|
Interface Type
|
IIC
|
|
Touch IC Model
|
GT911
|
|
Multi‑touch Points
|
5 Points
|
|
Surface Hardness
|
＞6H
|
|
Finger Touch Area
|
Φ≥9 mm
|
|
Input Method
|
Finger / Conductive Pen
|
|
Working Voltage(IIC)
|
2.8V~3.3V(Typ 3.0V)
|
|
Working Voltage(USB)
|
4.8V~5.2V(Typ 5.0V)
|
|
Total Transmittance
|
≥86%
|
|
Haze
|
≤5%
|
|
Operating Temperature
|
-10℃ ~ 60℃ , ≤65%RH
|
|
Storage Temperature
|
-20℃ ~ 70℃ , ≤65%RH
|
|
Frequently Asked Questions (FAQ)
|
|
Q1: What is the lead time for YT0700C1I‑Q1 7.0‑inch capacitive touch screen?
A: Standard samples ship within 3‑5 working days. Bulk orders typically take 15‑25 working days depending on quantity and customization requirements. |
|
Q2: What are the key specifications of this 7‑inch G+G touch panel?
A: 7.0 inch G+G capacitive touch screen with GT911 IC, IIC communication interface, support 5‑point multi‑touch. Active touch area 155.21*86.92mm, surface hardness＞6H, transmittance ≥86%, working temperature ‑10℃~60℃, perfect for industrial embedded projects. |
|
Q3: What interface does this 7‑inch touch screen adopt?
A: It uses IIC interface, working voltage 2.8‑3.3V for IIC mode, 4.8‑5.2V for USB mode. It supports finger and conductive pen touch input, easy to connect with your main control board. |
|
Q4: What environment can this touch screen work under?
A: Operating environment:‑10℃~60℃, humidity ≤65%RH; Storage environment:‑20℃~70℃, humidity ≤65%RH. It is designed for industrial applications with stable performance under wide temperature range. |
|
Q5: What input ways are supported for this capacitive touch panel?
A: It supports bare finger touch and conductive stylus pen input. Valid touch finger area ≥Φ9mm, 5‑point multi‑touch response for smooth operation experience. |
|
Q6: What is the mechanical structure of this touch screen?
A: Adopt G+G(Glass‑to‑Glass) structure, cover lens thickness 0.7mm, sensor glass thickness 0.7mm, black cover lens, surface hardness over 6H for scratch resistance. |
|
Q7: What applications is this 7‑inch touch panel suitable for?
A: Widely used for industrial control equipment, smart home control panel, medical device display, embedded man‑machine interface, IoT terminal, handheld device and other 7‑inch touch display projects. |
|
Q8: Do you provide customization and what is your warranty policy?
A: We provide custom service for touch panel dimension, cover color, FPC pin definition. All touch panels come with 12‑month warranty and lifetime technical support. Contact sales team for drawing, sample test and MOQ information. |
