Name: 21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Brand: Shenzhen YZY Technology Co., Ltd
SKU: PC 215H
Price: 246.00 USD
Availability: InStock

MOQ:	300
Price:	$236-256/pieces
Standard Packaging:	600 ×445 × 120mm; 6.5KG
Delivery Period:	10 work days
Payment Method:	T/T
Supply Capacity:	5K/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

YZY

Model Number

PC 215H

Type:

Industrial Computer

Display Size:

21.5 Inch

Supplier Type:

Factory

Outline Dimension:

520mm*311.8mm*55.98mm

Packing Dimensions:

600 ×445 × 120mm

Net Weight:

5.3KG

Gross Weigh:

6.5KG

Warerproof:

Front Panel Protection: IP65 Rated

Highlight:

21.5 Inch Industrial Monitor

IP65 Industrial Monitor

Fanless Industrial Panel PC

Product Description

21.5 Inch H Type Industrial Panel PC Embedded Touch Screen PC IP65 Fanless HMI Industrial Intelligent Industrial Computer

Product Features

Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
24/7 Operation: Designed for continuous operation with robust performance and long service life.

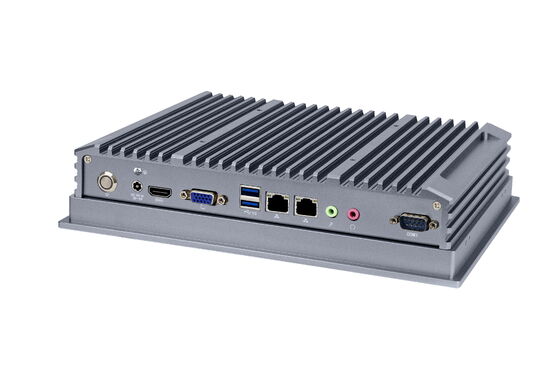

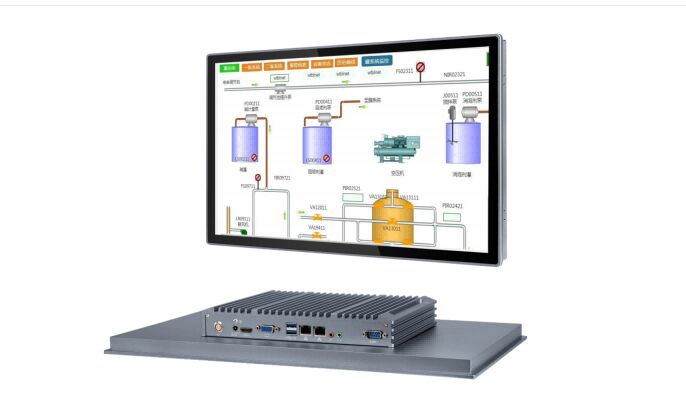

Product Views

Product Dimension

I/O Interface Diagram

Product Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support	Windows 7/8/10, Linux, Android
LCD Display	21.5" XGA TFT (1920*1080)
Active Area	478mm*269.8mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions	520mm311.8mm55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	Qty
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
