Name: 13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
Brand: Shenzhen YZY Technology Co., Ltd
SKU: PC133H
Price: 223.00 USD
Availability: InStock

MOQ:	300
Price:	$214-232/pieces
Standard Packaging:	460 ×445 × 100mm/3.8KG
Delivery Period:	10 work days
Payment Method:	T/T
Supply Capacity:	5K/Month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

YZY

Model Number

PC133H

Type:

Multi Touch Screen Monitor

Display Size:

13.3 Inch

Supplier Type:

Factory

Mounting Type:

Embedded

Packing Dimensions:

460 ×445 × 100mm

Net Weight:

3.2KG

Gross Weight:

3.8KG

Highlight:

13.3 inch industrial panel PC

IP65 Touchscreen Monitor

Embedded Multi Touch Screen Monitor

Product Description

13.3 Inch H Type Industrial Panel PC

Embedded Touch IP65 Fanless HMI Industrial Touch Screen PC with intelligent touch interface

Key Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
24/7 Operation: Designed for continuous use with robust performance and long service life.

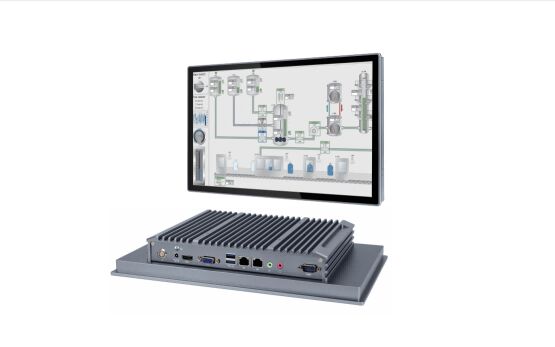

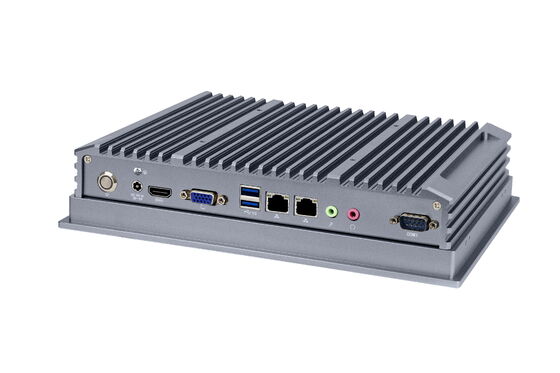

Product Views

Product Dimensions

I/O Interface Diagram

Extensible Interface

Technical Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	13.3" XGA TFT (1920*1080)
Active Area	293.8mm*165.4mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions	335.80mm207.40mm55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	QTY
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
