Name: 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Brand: Shenzhen YZY Technology Co., Ltd
SKU: PC156H
Price: 223.00 USD
Availability: InStock

MOQ:	300
Price:	$214-232/pieces
Standard Packaging:	590×445×100mm/5.9KG
Delivery Period:	10 work days
Payment Method:	T/T
Supply Capacity:	5K/Month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

YZY

Model Number

PC156H

Type:

Touch Screen Industrial Monitor

Display Size:

15.6 Inch

Supplier Type:

Factory

Packing Dimensions:

590 ×445 × 100mm

Net Weight:

3.2KG

Gross Weight:

4.1KG

Highlight:

Touch Screen Industrial Monitor

Industrial Monitor IP65

H Type Industrial Panel PC

Product Description

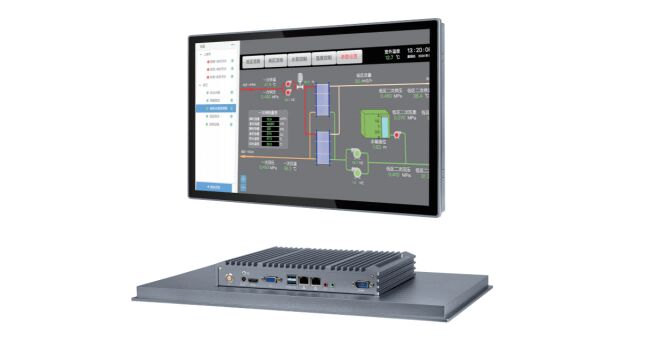

15.6 Inch H Type Industrial Panel PC

High-performance embedded touch screen PC with IP65 fanless design for industrial HMI applications.

Key Features

Precision CNC Milling: Enhanced sealing reduces dust intrusion and improves equipment stability
Ultra-narrow Reinforced TP: 18mm bezel with 2mm reinforcement for increased surface hardness
Full Aluminum Construction: IP65-rated front panel with excellent EMC protection
Fanless Heat Dissipation: Copper heat blocks with pipes for stable high-load operation
Capacitive Touch: Multi-point PCAP touch with full lamination support
Industrial LCD Panel: A+ grade module with wide viewing angles and temperature range
Extensive I/O: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C)
Multiple Mounting Options: Embedded, wall-mounted, cantilever, and desktop configurations
24/7 Operation: Designed for continuous industrial use with robust performance

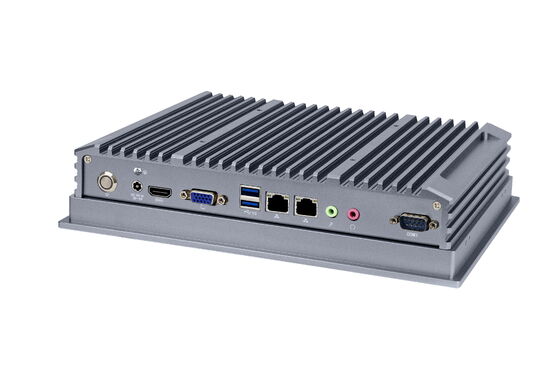

Product Views

Dimensions

I/O Interface Configuration

Extensible Interface

Technical Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Display	15.6" XGA TFT (1920*1080)
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

Cabinet requires pre-drilled holes matching equipment dimensions
Tighten long screws and nuts onto snap fasteners
Secure four clips at threaded hole positions
Final tightening of long screws completes installation

Alternative Mounting Options

Standard Package Contents

Item	Description	Qty
Industrial Panel PC	Main unit	1
Power Adapter	Standard power supply	1
3-pin Power Terminal Plug	Optional accessory	1
Embedded Snap-In Kit	Optional mounting hardware	1 set
Documentation	Manual, warranty, certificates	3 sheets

Configuration Options

Feature	Options
Ethernet Ports	Default single port; optional dual or quad ports
Serial Ports	Default 2 × RS232; optional 6 × RS232/RS485
USB Ports	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
GPIO	Optional 4 input / 4 output

Safety Information

IP65-rated front panel provides protection against water splashes but not immersion
Avoid humid environments to prevent condensation damage
Protect from prolonged direct sunlight to prevent screen degradation
Not recommended for outdoor use in high ambient light conditions
Qualified personnel only for service due to high voltage components

Recommended operating environment: 0-50°C temperature, 10%-70% relative humidity.
