Name: 5 Inch 800x480 HDMI LCD Display CTP IPS TFT LCD Display For Raspberry Pi
Brand: Shenzhen YZY Technology Co., Ltd
SKU: YQ84-5
Price: 23.50 USD
Availability: InStock

MOQ:	100
Price:	$22.5-25.5/pieces
Standard Packaging:	15414338(mm)/180g
Delivery Period:	30-45days
Payment Method:	T/T
Supply Capacity:	50K/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YZY

Certification

CE/ROHS

Model Number

YQ84-5

Type:

HDMI Display

Display Size:

5 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

800x480 HDMI LCD Display

Raspberry Pi 5 Inch Touch Screen

IPS TFT LCD Display 5 Inch

Product Description

5 Inch 800x480 HDMI Display CTP IPS TFT Touch Screen for Raspberry Pi

Product Description

5" standard display with 800x480 resolution (supports maximum HDMI resolution of 1920x1080)
Capacitive touch screen supporting 5-point touch
Built-in OSD menu adjustment (Contrast/Brightness/Saturation, etc.)
Compatible with Raspberry Pi, BB Black, Banana Pi and other mini PCs
Works as general-purpose HDMI display for computers, TV boxes, Xbox360, PS4, Nintendo Switch
Supports Raspbian, Ubuntu, Kodi, Win10 IOT (single-touch, free drive)
Functions as PC monitor supporting Win7/8/10 (5-point touch, XP and older: single-point)
HDMI audio output supported
CE and RoHS certified

Product Parameters

Size	5.0 inch
SKU	MPI5001
Resolution	800 × 480 dots
Touch	5 point capacitive touch
Audio output	Supported
Active Area	108.00 × 64.80 mm
Dimensions	121.11 × 95.24 mm
Weight	259 g (package included)

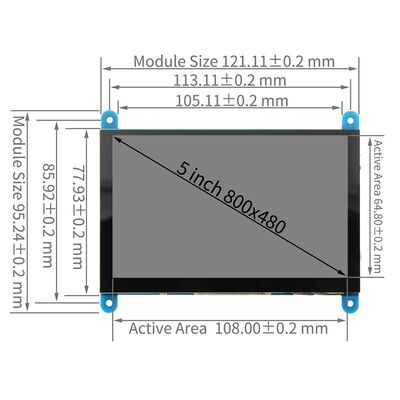

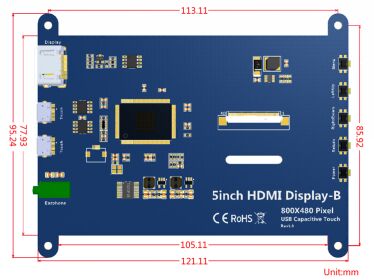

Product Size

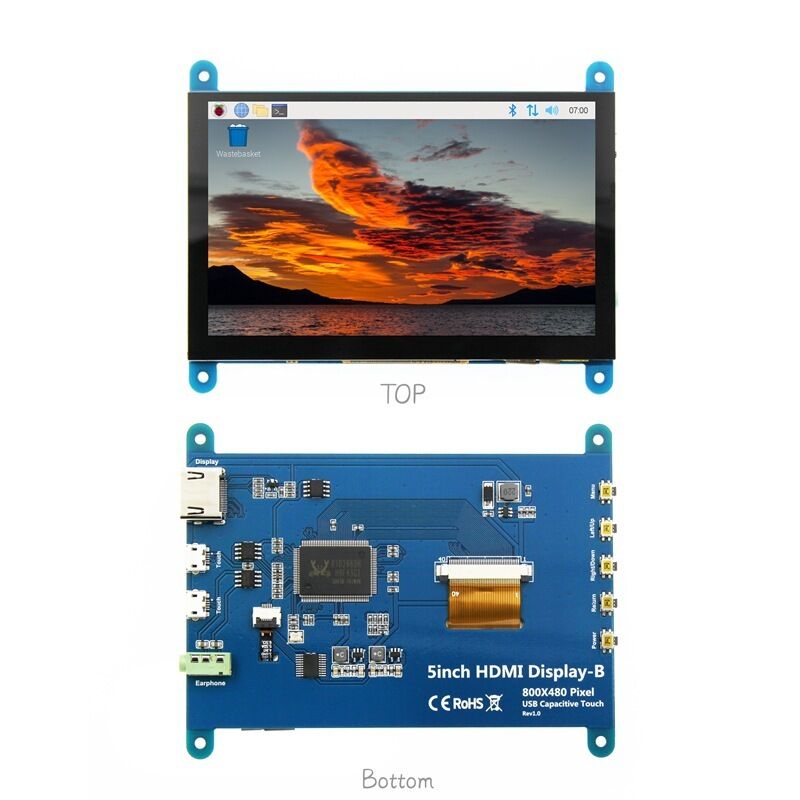

Hardware Description

① Earphone: 3.5mm Audio output interface

②&③Touch: USB connector (For power supply and touch output, the functions of the both

are the same, can just use one of them)

④ Display: HDMI interface (For connecting motherboard and LCD monitor)

⑤ Power: Controls the backlight turned on and off to save power

⑥ Return: Return (Only valid in the OSD Settings menu)

⑦ Right/Down: Direction Right/Down(Backlight shortcut key)

⑧ Left/Up: Direction Left/Up(Backlight shortcut key)

⑨ Menu: Open the OSD / Select key (Only valid in the OSD Settings menu)

How to use with Raspberry Pi OS

Step 1: Install Raspberry Pi OS image

Download the latest image from the official download
Install the system according to the official tutorial steps

Step 2: Modify the "config.txt"

After programming, open "config.txt" in Micro SD Card root directory
Change dtoverlay=vc4-kms-v3d to dtoverlay=vc4-fkms-v3d
Add the following code at the end of "config.txt":
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=2
hdmi_cvt 800 480 60 6 0 0 0

Step 3: Connect the hardware

Insert Micro SD Card to Raspberry Pi
Connect Raspberry Pi and LCD with HDMI cable
Connect USB cable between Raspberry Pi and LCD
Power on Raspberry Pi

How to rotate display direction

If driver is not installed:

sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./MPI5001-show

If driver is already installed:

cd LCD-show/
sudo ./rotate.sh 90

(Replace '90' with 0, 90, 180 or 270 for different rotation angles)

How to use as PC monitor

Connect computer HDMI output to LCD HDMI interface
Connect LCD's USB Touch interface to device USB port
For testing, use LCD as the only monitor (disconnect other monitors)
