4.3 Inch 800x480 Capacitive Touch Screen Display With IPS TFT Technology

Products

4.3 Inch 800x480 Capacitive Touch Screen Display With IPS TFT Technology

MOQ:	100
Price:	$21.5-24.2/pieces
Standard Packaging:	1349852(mm)/140g
Delivery Period:	30-45days
Payment Method:	T/T
Supply Capacity:	50K/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

YQ84-43DSI

Type:

HDMI Display

Display Size:

4.3 Inch

Supplier Type:

Factory

Video Input:

Highlight:

4.3 Inch Capacitive Touch Screen

800x480 Capacitive Touch Screen Display

4.3 Inch IPS Touch Display

Product Description

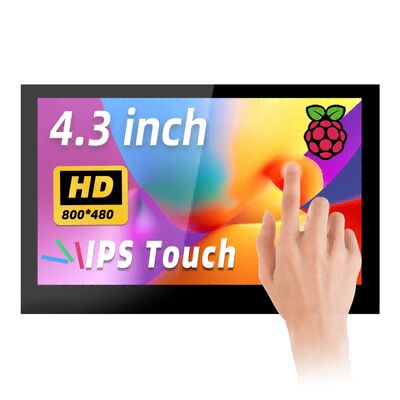

4.3 Inch 800x480 Capacitive Touch Screen Display IPS TFT Raspberry Pi Compatible for Windows 11/10/8.1/8/7

This 4.3-inch capacitive touch screen display features 800×480 resolution with IPS TFT technology, offering wide viewing angles and vibrant colors. Designed for seamless compatibility with Raspberry Pi and Windows systems, it provides plug-and-play functionality with no driver installation required.

Key Features

800×480 resolution capacitive touch IPS screen
Raspberry Pi MIPI DSI interface for direct output (plug and play)
Supports official Raspbian system with 2-point zoom functionality
Compatible with Ubuntu/Kali/Win10 IoT (single touch)
Supports Retropie
Backlight brightness adjustment button
PWM backlight brightness adjustment for different environments

Technical Specifications

LCD Type	IPS TFT	LCD Size	4.3inch
LCD Resolution	800×480	LCD Interface type	RGB
Module Interface Type	MIPI DSI	Touch screen type	Capacitive touch screen
Viewing Angle	IPS: Whole perspective	Working Voltage	3.3V
Maximum Operating Current	220mA	Operating Temperature	-20℃ to 70℃
Active Area	95.04×53.86 (mm)	Package Size	134×98×52(mm)
Module Weight (net weight)	97g	Package Weight	140g

Hardware Description

Figure 1: Hardware components diagram

Key Components:

Backlight brightness adjustment button
MIPI DSI interface for connecting Raspberry Pi via FPC flexible cable
Backlight control mode selection:
- Right solder: Fixed maximum brightness
- Left solder: PWM brightness adjustment (default: fixed maximum brightness)
External PWM access point for controlling backlight brightness via GPIO

Module Dimensions

Figure 2: Module dimensions diagram

Installation Guide

Download the latest Raspberry Pi OS image from the official website
Prepare a Micro SD card (minimum 8GB) and format it
Burn the OS image to the SD card using Win32DiskImager
Insert the SD card into Raspberry Pi
Mount the Raspberry Pi to the display module using provided hardware
Connect the display module to Raspberry Pi's display interface via FPC cable
Connect power and boot the system

Note: The package includes all necessary mounting hardware (copper columns, screws, and FPC cables). Raspberry Pi 4 uses Type-C power while Pi 3 uses Micro USB.

Figure 3 & 4: Installation and connection diagrams

PWM Backlight Control

To control backlight brightness via PWM:

Configure hardware for PWM mode (solder resistor to left position)
Connect PWM access point to GPIO18 and GND to Raspberry Pi GND pin
Use the following commands to adjust brightness (0-1024 range):

gpio -g pwm 18 1024
gpio -g mode 18 pwm
gpio pwmc 1000
gpio -g pwm 18 X (X = brightness value 0-1024)

Note for Raspberry Pi 4: Update WiringPi GPIO library using:

cd /tmp
wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i -B wiringpi-latest.deb

Display Rotation Options

Method 1: FKMS Mode (Default for Raspberry Pi 4)

Rotate display through menu options (recommended to use mouse for operation).

Figure 6: FKMS rotation settings

Method 2: Traditional Graphics Mode

Add the following to /boot/config.txt:

display_lcd_rotate=x (x=0,1,2,3,0x10000,0x20000)

Where:

0 = Normal (default)
1 = 90° clockwise
2 = 180° clockwise
3 = 270° clockwise
0x10000 = Flip horizontal
0x20000 = Flip vertical

Touch Rotation Configuration

Modify /usr/share/X11/xorg.conf.d/40-libinput.conf with appropriate CalibrationMatrix values corresponding to display rotation.

Figure 10: Touch configuration file

Package Contents

4.3inch DSI Display ×1
FFC-1.0-15P-10cm-(Reverse) ×1
FFC-1.0-15P-5cm-(Reverse) ×1
Screw (M2.5) ×4
Copper Pillar (M2.5) ×4

Tags:

4.3 Inch HDMI Display,

800x480 resolution TFT Display,

Capacitive Touch Screen
