10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility
  • name
  • name
  • name
  • name

10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility

MOQ: 100
Price: $44-48/pieces
Standard Packaging: 300*240*60mm/900g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YB101WSVL-P01
Type:
HDMI LCD Display 1024×600
Display Size:
10.1 Inch
Supplier Type:
Factory
Video Input:
HDMI
Highlight:

10.1 Inch HDMI LCD Display

,

1024×600 Resolution IPS LCD Display

,

Raspberry Pi Compatibility Touch Screen Display

Product Description
YB101WSVL-P01 10.1 Inch IPS HDMI LCD Display
High-resolution 1024*600 display with Raspberry Pi compatibility, featuring multi-point capacitive touch and comprehensive connectivity options.
Product Overview
The YB101WSVL-P01 is a 10.1-inch LCD monitor with integrated driver board supporting HDMI input and 5-point capacitive touch. The system includes headphone signal input and speaker output capabilities, operating on DC 5V power with standby power consumption under 0.2W.
Key Features
  • 10.1-inch IPS display with wide viewing angles and superior color reproduction
  • High-resolution 1024*600 display delivering crisp image quality
  • Toughened glass touch panel with 6H hardness for enhanced durability and scratch resistance
  • 5-point capacitive touch screen for responsive multi-touch operation
  • HDMI input interface for high-definition display connectivity
  • Built-in stereo dual speakers for audio playback
  • 3.5mm headphone output port for private audio listening
  • Dual-function dial switch for backlight brightness and volume adjustment
  • Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black development boards
  • Supports multiple operating systems including Raspbian, Ubuntu, Kali, and Windows 10 IoT
  • Works as computer monitor with Windows 7/8/10 systems
  • Compatible with gaming consoles including PS4, XBOX360, and Nintendo Switch
  • CE and ROHS certified for quality assurance
Technical Specifications
Size 10.1 inch
Screen Type IPS Screen
Backlight Adjustment Switching and adjusting of dial switch
Resolution 1024*600 dots
Volume Adjustment Switching and adjusting of dial switch
Touch 5 point capacitive
Power USB-Type-C (5V/3A)
Touch IC GT911
Speakers Power 8Ω 2W
Video Input HDMI

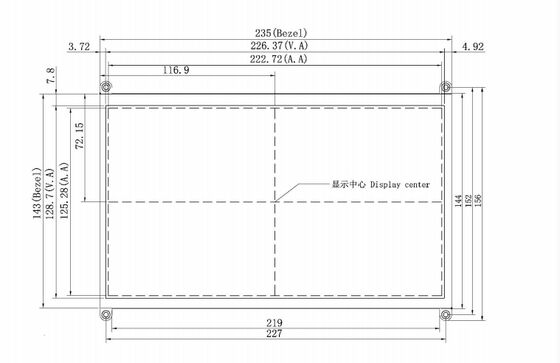

Dimensions 235*160*(20±0.2)mm
Audio Output Interface 3.5mm Audio Interface and Stereo speakers
Packaging Size 300*240*60mm
Weight 900 g (including packaging)

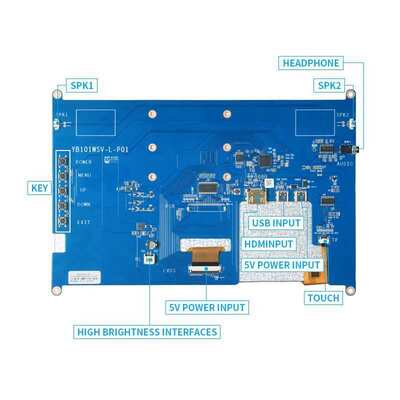

Interface and Key Description
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility 0
HDMI Interface: Connect to source devices (computers, etc.) using HDMI cable. Supports maximum resolution of 1920*1080.
USB Input (USB-Type C): Connect to computers for touch functionality and power supply.
5V Power Input (USB-Type C): DC 5V Power Input
SPK1/2: Speaker Interfaces, each supports up to 2.6W (requires headphone-driven speaker output)
Headphone: Headphone Jack
Key: POWER/MENU/UP/DOWN/EXIT Button
Tags:

4.3 Inch HDMI Display,

800x480 resolution TFT Display,

Capacitive Touch Screen
