1.54 Inch E-paper Display 200×200 Resolution 24pin Ultra-Low Power 4-Color E-Ink Screen(Model: YE0154A236)

Product Features

◊200×200 pixels square display (188 DPI, pixel pitch 0.135×0.135mm)

◊Black/White/Red/Yellow (B/W/R/Y) 4-color full display capabilities

◊High contrast (typ. 10:1) & high white reflectance (30~35%)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 38mAs max update power)

◊Bi-stable display & commercial temperature range (0~40℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)

◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE0154A236 is an Active Matrix Electrophoretic Display (AMEPD) optimized for ultra-compact, high-definition scenarios. It features a 1.54-inch square active area (27.00×27.00mm) with 200×200 square pixels (0.135mm pitch, 188 DPI), supporting Black/White/Red/Yellow 4-color display—ideal for clear color-coded information presentation. The module integrates a JD79660 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (37.32×31.80×0.95mm without masking film) and lightweight design (2.1±0.2g), it fits seamlessly into miniaturized devices like micro electronic shelf labels, smart wearables, and portable terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	200×200 (188 DPI)	Place of Origin	Shenzhen, China
Brand Name	YZY	Outline Dimensions	37.32(H)×31.80(V)×0.95(D) mm
Supplier Type	All (IPS)	Active Area	27.00(H)×27.00(V) mm
Interface	3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor)	Driver IC	JD79660
MOQ	5PCS	Operating Temperature	0~40℃
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	-25~60℃
Colors	Black/White/Red/Yellow
Power Consumption	Update: ≤38mAs (25℃); Deep Sleep: ≤3μA

Product Picture

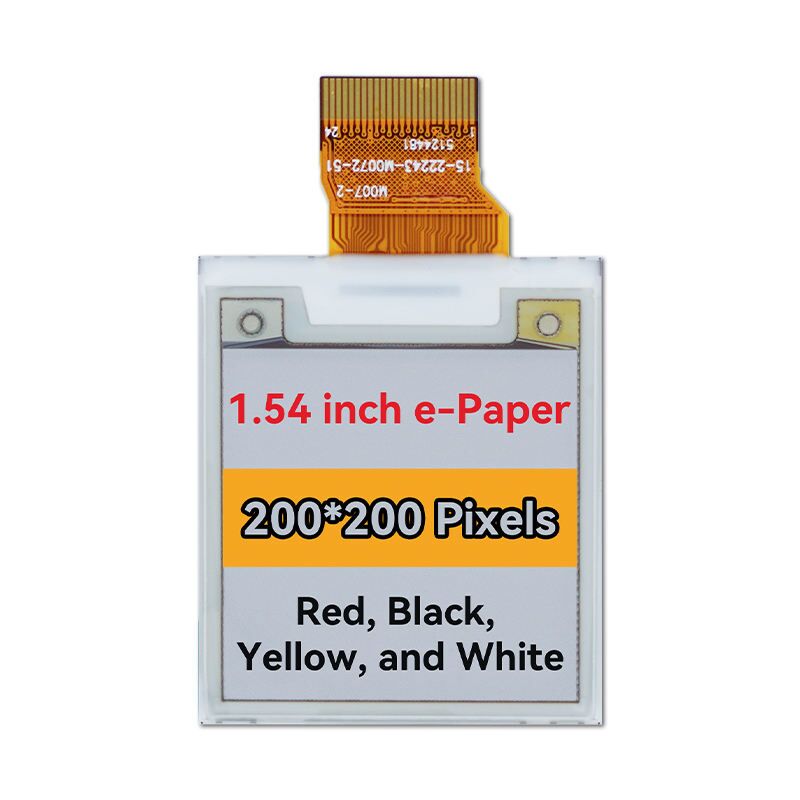

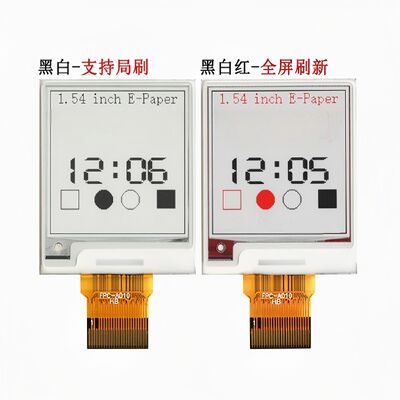

The YE0154A236 excels in ultra-compact high-definition scenarios with its 188 DPI square display and 4-color capability. As shown in the images, it vividly presents color-coded information—red for promotions, yellow for warnings, black for text, and white for background—making it perfect for micro electronic shelf labels, smart wearables, and portable terminals. Its square pixels (0.135×0.135mm) ensure sharp text and barcodes, even 6pt fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.95mm) and lightweight (2.1g) design, it fits into space-constrained devices like smart badges, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0154A236 has diverse industry applications. In retail, it serves as micro electronic shelf labels for small products (e.g., cosmetics, jewelry), using 4-color display to highlight promotions (red), stock alerts (yellow), and product details (black text on white)—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as mini cargo tags, displaying waybills and statuses with color alerts (red for urgent, yellow for fragile), withstanding -25~60℃ transportation for 10 days. In smart wearables, its compact size fits into fitness trackers or smart badges, showing steps, heart rate, or IDs. In industrial control, it acts as tiny status monitors, indicating normal (white), warning (yellow), fault (black), and urgent (red) states. With ROHS2.0+HF+REACH compliance and rigorous testing, it meets global environmental and reliability demands.

Core Advantages

◊ High-Definition Square Display: Sharp Details, Versatile Layouts

The YE0154A236 features a 200×200 square resolution (188 DPI) with 0.135mm square pixels, delivering sharp text, barcodes, and graphics—ideal for displaying dense information in compact spaces. Its 4-color performance is precise: red state L*=25~28 (a*=38~40), yellow state L*=55~62 (b*=63~68), white state L*=63~65, and black state L*=9~14. The high white reflectance (30~35%) and contrast ratio (typ. 10:1) ensure clear visibility in low light, while the pure reflective mode saves power by eliminating backlighting. The hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability in outdoor/bright indoor scenarios. With an ultra-wide viewing angle, there’s no color deviation from any direction, supporting multi-person viewing for shared devices.

◊ Ultra-Low Power: Long Battery Life, Energy Efficiency

Powered by bi-stable technology, the module only consumes power during updates (max 38mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months, reducing replacement frequency. The on-chip booster generates VCOM, Gate (VGH/VGL), and Source (VDHR/VSH/VSL) voltages internally, simplifying external circuits and optimizing efficiency. Low-voltage detection (VDD: 2.4~3.6V) monitors battery status, while high-voltage ready detection prevents abnormal operation. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in 0~40℃ environments.

◊ Ultra-Compact & Durable: Easy Integration, Wide Adaptability

With an outline of 37.32×31.80×0.95mm and weight of 2.1±0.2g, the YE0154A236 fits into ultra-compact devices like smart wearables and micro labels. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 100 temperature cycles (-25℃~60℃), 168-hour high-humidity operation (40℃, 90%RH), and ESD testing (±200V contact/±8KV air). The hard-coat screen resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global standards. Its 3-year design life (25℃/50%RH, daily updates) ensures long-term use. The flexible FPC (0.10±0.03mm) with stiffener (0.30±0.03mm) simplifies installation in non-flat layouts.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) can be grounded if external sensors aren’t used, simplifying circuit design. The 24-pin 0.5mm ZIF Socket and easy-to-tear sticker enable quick, secure installation. Customizations include FPC length/bending area (for non-flat devices), cover glass processing (anti-glare/anti-fingerprint), and OTP programming (module ID, waveform parameters), adapting to diverse application needs.

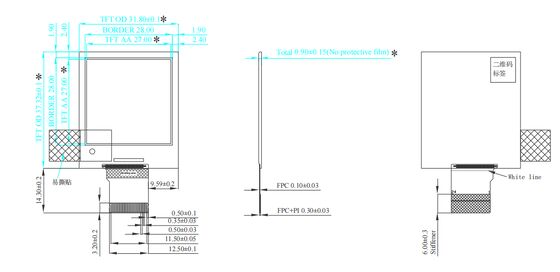

Technical Drawing

1.54 Inch E-paper Display 200×200 Resolution 24pin Ultra-Low Power 4-Color E-Ink Screen 2

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VDHR	Positive Source driving voltage
6	TSCL	I2C clock for external temperature sensor	Connect to GND if not used
7	TSDA	I2C data for external temperature sensor	Connect to GND if not used
8	BS	Bus selection pin	Note 6-5
9	BUSY_N	Busy state output pin	Note 6-4
10	RST_N	Reset	Note 6-3
11	DC	Data/Command control pin	Note 6-2
12	CSB	Chip Select input pin	Note 6-1
13	SCL	serial clock pin (SPI)
14	SDA	serial data pin (SPI)
15	VDDIO	Power for interface logic pins
16	VDD	Power Supply pin for the chip
17	GND	Ground
18	VDDD	Core logic power pin
19	VPP	Power Supply for OTP Programming
20	VSH	Positive source driver Voltage
21	VGH	Positive Gate driving voltage
22	VSL	Negative Source driving voltage
23	VGL	Negative Gate voltage
24	VCOM	VCOM driving voltage

Customization Options

The YE0154A236 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Gary Carr

Ireland Dec 23.2025

trustpilot.com

Helpful (18)

Excellent product, excellent service!

David K.

United States Dec 20.2025

Helpful (1)

The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.

Chiraag Hebbar

United States Dec 14.2025

trustpilot.com

Helpful (15)

very excellent

Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display
