1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen
  • name
  • name
  • name

1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen

MOQ: 600
Price: 1.56~2.86/pc
Standard Packaging: 320pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YE013A02
Document
YE013A02.pdf
Highlight:

1.3 inch e paper display

,

1.3 inch e paper e ink display

Product Description
1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen(Model: YE013A02)



Product Features

◊144×200 pixels display (188 DPI, square pixel 0.135×0.135mm)
◊Black/White/Red (B/W/R) 3-color full display capabilities
◊High contrast (typ. 10:1) & high white reflectance (30~35%)
◊Pure reflective mode & ultra wide viewing angle
◊Bi-stable display & ultra low power consumption (≤3μA deep sleep)
◊Commercial temperature range (0~40℃) & hard-coat antiglare surface
◊On-chip display RAM & waveform stored in on-chip OTP
◊3-wire/4-wire SPI interface & I2C temperature sensor interface
◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE013A02 E-PAPER display module is an Active Matrix Electrophoretic Display (AMEPD) with integrated interface and reference system design. It features a 1.3-inch active area (19.44×27.00mm) with 144×200 square pixels (0.135×0.135mm pixel pitch), supporting Black/White/Red 3-color full-display capabilities—ideal for compact scenarios requiring color-coded information presentation. The module integrates an SSD1680 driver IC, including gate buffer, source buffer, interface logic, timing controller, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable and efficient performance. With an ultra-thin outline dimension of 24.69(H)×36.64(V)×1.05(D)mm (without masking film) and lightweight design (1.6±0.2g), it enables easy integration into tiny electronic devices like mini electronic shelf labels, smart wearables, and portable data terminals. The hard-coat antiglare surface and pure reflective mode ensure clear readability even under strong light, while low-power features meet long-term battery-powered application needs.
Type E-Paper Screen refreshing method Full Refresh
Resolution 144×200 (188 DPI, square pixels) Place Of Origin
Shenzhen, China
Brand Name YZY Outline Dimensions
24.69(H)×36.64(V)×1.05(D) mm
Supplier Type All (IPS) Active Area
19.44(H)×27.00(V) mm
Interface 3-wire/4-wire SPI  Driver IC SSD1680
MOQ 5PCS Operating Temp.
0~40℃
Connector Type
24 pin (0.5mm ZIF Socket)
 Storage Temp. -20~60°C
Colors                                                     Black/White/Red
Power Consumption                                                     Update: ≤40mAs; Deep Sleep: ≤3μA

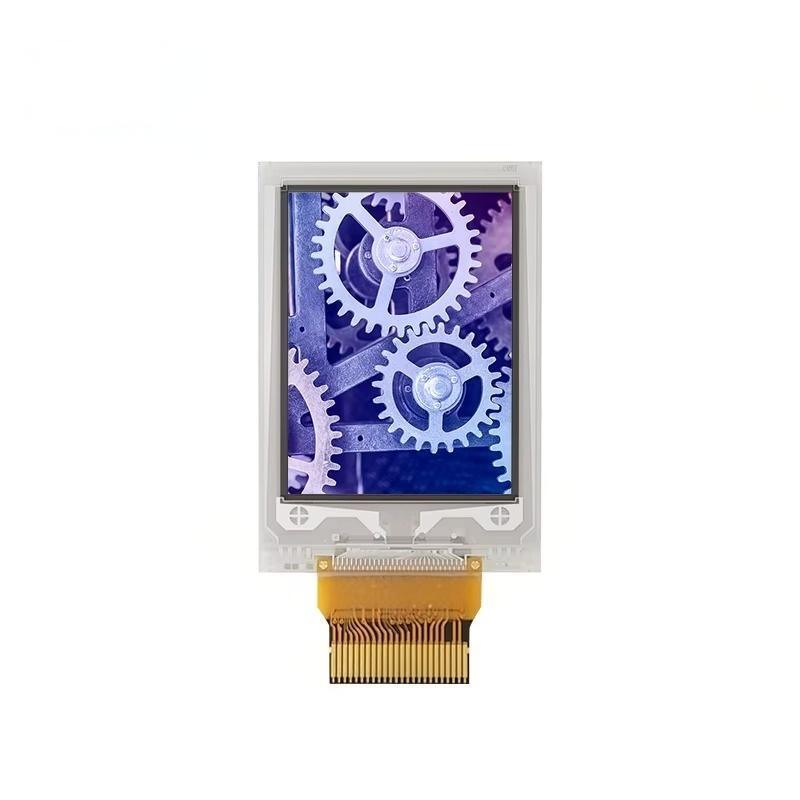

Product Picture

1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen 0
The YE013A02 E-PAPER display module excels in ultra-compact high-definition scenarios with its 188 DPI square display and 3-color capability. As shown in the images, it vividly presents color-coded information—red for promotions, black for product names, and white for background—making it perfect for mini electronic shelf labels, smart wearables, and portable terminals. Its square pixels (0.135×0.135mm) ensure sharp text and barcodes, even 6pt fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (1.05mm) and lightweight (1.6g) design, it fits into space-constrained devices like smart badges, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications,.
The YE013A02 E-PAPER display module has diverse industry applications. In retail, it serves as micro electronic shelf labels for small products (e.g., cosmetics, jewelry), using 3-color display to highlight promotions (red), stock alerts (yellow), and product details (black text on white)—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as mini cargo tags, displaying waybills and statuses with color alerts (red for urgent), withstanding -25~60℃ transportation for 10 days. In smart wearables, its compact size fits into fitness trackers or smart badges, showing steps, heart rate, or IDs. In industrial control, it acts as tiny status monitors, indicating normal (white), warning (yellow), and fault (black) states. With ROHS2.0+HF+REACH compliance and rigorous testing (including high-temperature, low-temperature, and vibration tests), it meets global environmental and reliability demands.



Core Advantages


1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen 1

 ◊ High-Definition Square Display: Sharp Details, Versatile Layouts

The YE013A02 features a 144×200 square resolution (188 DPI) with 0.135mm square pixels, delivering sharp text, barcodes, and graphics—ideal for displaying dense information in compact spaces. Its 3-color performance is precise: red state L*=25~28 (a*=36~40), white state L*=63~65, and black state L*=9~14. The high white reflectance (30~35%) and contrast ratio (typ. 10:1) ensure clear visibility in low light, while the pure reflective mode saves power by eliminating backlighting. The hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability in outdoor/bright indoor scenarios. With an ultra-wide viewing angle, there’s no color deviation from any direction, supporting multi-person viewing for shared devices,.

  ◊ Ultra-Low Power: Long Battery Life, Energy Efficiency

Powered by bi-stable technology, the module only consumes power during updates (max 40mAs) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months, reducing replacement frequency. The on-chip booster generates VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits and optimizing efficiency. Low-voltage detection (VCI: 2.5~3.7V) monitors battery status, while high-voltage ready detection prevents abnormal operation. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in 0~40℃ environments,.

  ◊ Ultra-Compact & Durable: Easy Integration, Wide Adaptability

With an outline of 24.69×36.64×1.05mm and weight of 1.6±0.2g, the YE013A02 fits into ultra-compact devices like smart wearables and micro labels. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 50 temperature cycles (-25℃~60℃), 168-hour high-humidity operation (40℃, 90%RH), and ESD testing (±250V contact/±8KV air). The hard-coat screen resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global standards. Its 5-year design life (25℃/50%RH, daily updates) ensures long-term use. The flexible FPC (0.10±0.03mm) with stiffener (0.30±0.03mm) simplifies installation in non-flat layouts,.

  ◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS1 pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. 4-wire SPI uses SCL, SDA, D/C#, and CS# pins, while 3-wire SPI ties D/C# to LOW and transmits 9-bit data (1-bit D/C# + 8-bit data). The 24-pin 0.5mm ZIF Socket and easy-to-tear sticker enable quick, secure installation. Customizations include FPC length/bending area (for non-flat devices), cover glass processing (anti-glare/anti-fingerprint), and OTP programming (module ID, waveform parameters), adapting to diverse application needs,,.

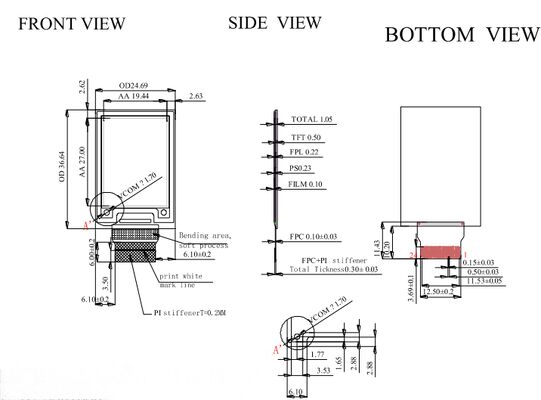

Technical Drawing

1.3 Inch E-paper Display 144×200 Resolution 24pin Low Power Consumption 3-Color E-Ink Screen 2

PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input for the Control Loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VSH2 Positive Source driving voltage
6 TSCL I2C Interface to digital temperature sensor Clock pin
7 TSDA I2C Interface to digital temperature sensor Date pin
8 BS1 Bus selection pin Note 6-5
9 BUSY Busy state output pin Note 6-4
10 RES# Reset Note 6-3
11 D/C# Data/Command control pin Note 6-2
12 CS# Chip Select input pin Note 6-1
13 SCL serial clock pin (SPI)
14 SDA serial data pin (SPI)
15 VDDIO Power for interface logic pins
16 VCI Power Supply pin for the chip
17 VSS Ground
18 VDD Core logic power pin
19 VPP Power Supply for OTP Programming
20 VSH1 Positive source driver Voltage
21 VGH Positive Gate driving voltage
22 VSL Negative Source driving voltage
23 VGL Negative Gate voltage
24 VCOM VCOM driving voltage

Customization Options


The YE013A02 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
