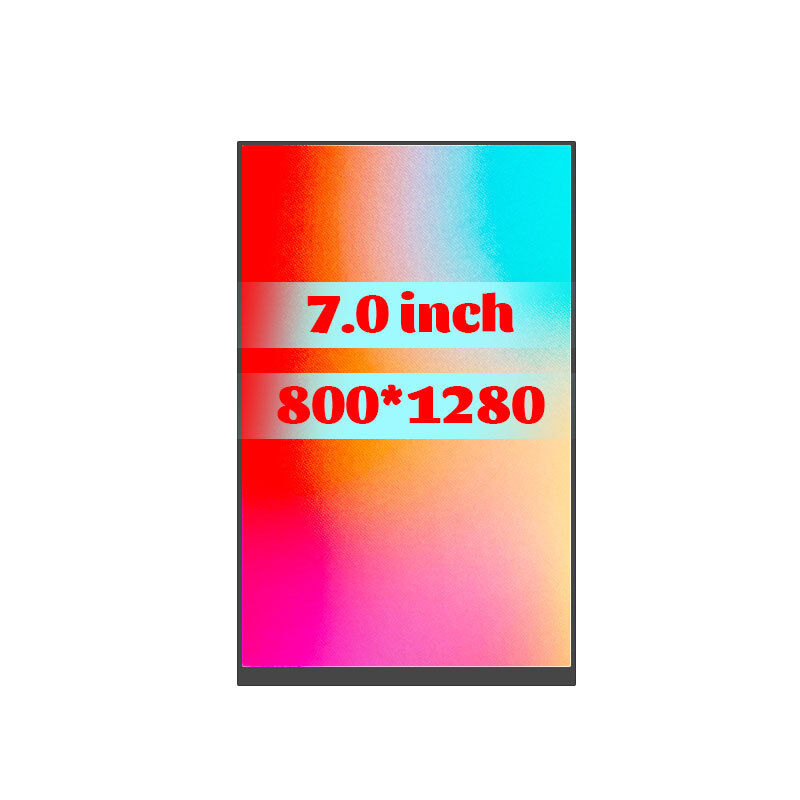

7.0 Inch Rectangular IPS LCD Display 800*1280 MIPI Interface IPS Touch Screen
  • name
  • name
  • name

7.0 Inch Rectangular IPS LCD Display 800*1280 MIPI Interface IPS Touch Screen

MOQ: 500
Price: 10.02-13.65/pc
Standard Packaging: 30pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 5000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YVT101WSVL-H01
Document
YVO070HDM-H01.pdf
Name:
IPS LCD Display
Highlight:

Rectangular IPS LCD Display

,

IPS LCD Display 800*1280

,

MIPI Interface IPS Touch Screen

Product Description
7.0 inch IPS LCD display 800*1280 resolution optional touch MIPI Interface
800×1280 ResolutionMIPI Interface350 Cd/m² Luminance-10℃ ~ +50℃ Operating TempAll-Direction Viewing Angle
Product Features

The YVO070HDM-H01 is a 7.0-inch (9:16 aspect ratio) high-performance IPS TFT-LCD module developed . It adopts amorphous silicon TFT as a switching device, consisting of a TFT LCD panel and driving circuit, with a resolution of 800×RGB×1280 pixels and support for rich color display. Featuring an IPS (Normally Black) display mode and RGB vertical stripe pixel arrangement, it delivers excellent color reproduction and all-direction viewing angles, ensuring consistent visual effects from any perspective. Equipped with a MIPI interface, it realizes high-speed serial data transmission (supporting 4 data lanes), which is more efficient and space-saving than traditional parallel interfaces, making it suitable for smart terminals, portable devices, and multimedia display scenarios. The module uses white LEDs as backlight, achieving a typical luminance of 350 Cd/m² and a contrast ratio of 800:1, ensuring clear visibility in various light environments. It complies with RoHS environmental standards, using lead-free processes and environmentally friendly materials. With an operating temperature range of -10℃ ~ +50℃ and storage temperature range of -20℃ ~ +60℃, it can adapt to common working and storage conditions, and the backlight has a typical service life of 20000 hours (brightness decreasing to 50% of initial value at Ta=25℃, IF=80mA), ensuring long-term stable use.
Product 7.0 inch IPS TFT-LCD Module Module Number YVO070HDM-H01
Resolution 800(H)×RGB×1280(V) pixels Display Mode IPS (Normally Black)
Brightness 350 Cd/m² (Typ.) Outline Dimensions (H×V×D)
99.8(H)×161.05(V)×2.65(D)mm
Viewing Direction All Active Area (H×V)
94.2(H)×150.72(V)mm
Interface MIPI Interface (4 data lanes) Storage Temp. -20 ~ +60 °C
Backlight
White LED (Typ. IF=80mA)
 Operating Temp. -10 ~ +50 °C
Highlight                   7.0-inch IPS LCD, 800×1280 resolution,  MIPI interface, RoHS compliant
Technical Drawing

The YVO070HDM-H01 LCD module ensures reliable electrical performance. For power supply, the main power voltage (VCC) ranges from 3.0V to 3.6V (Typ. 3.3V), and the I/O power voltage (IOVCC) is 1.7V to 2.0V (Typ. 1.8V); absolute maximum ratings must not be exceeded (VCC/IOVCC: -0.3V~+3.6V, GND=0V), otherwise permanent damage to the module may occur. The power-on sequence requires strict compliance: VCCD, IOVCC, VCCH → VCI, VCIP (interval ≥5ms) → HW Reset (≥5ms) → Send SLPOUT command (Pagu0_0x11) → Initial setting → Video Packet transmission, with a total power-on preparation time (tPWON) of 5ms; power-off sequence follows the reverse order to avoid latch-up or component damage. In terms of MIPI interface timing, the high-speed (HS) mode supports differential small-amplitude signals, with a maximum total bit rate of 2Gbps for 4 data lanes (24-bit data format), ensuring efficient data transmission for high-resolution display.
For the backlight unit (Ta=25℃), the typical forward current (IF) is 80mA, forward voltage (VF) ranges from 15V to 17.5V (Typ. 16V), and luminance is 300-350 Cd/m² (IF=80mA). It is important to note that if the LED operating current exceeds 80mA, the backlight service life will be shortened; the service life is defined as the time when brightness decreases to 50% of the initial value under standard conditions. In terms of display timing, for 800×1280 resolution, the vertical refresh rate (VRR) is typically 60Hz, vertical active area (VDISP) is 1280 lines, vertical blanking period (VBK) is 8-250 lines; for 720×1280 resolution, the horizontal active area is 720 DCK, pixel clock is 56.88-74.17MHz, ensuring stable image output without flicker. The module also supports image inversion functions (UP/DOWN and LEFT/RIGHT), which can be adjusted according to application scenarios to meet different installation and viewing needs.

7.0 Inch Rectangular IPS LCD Display 800*1280 MIPI Interface IPS Touch Screen 0

PIN Definition
PIN Symbol Description
1 LEDA Power for LED backlight (Anode)
2 LEDA Power for LED backlight (Anode)
3 LEDA Power for LED backlight (Anode)
4 NC No connect.
5 LEDK Power for LED backlight (Cathode)
6 LEDK Power for LED backlight (Cathode)
7 LEDK Power for LED backlight (Cathode)
8 LEDK Power for LED backlight (Cathode)
9 GND Ground
10 GND Ground
11 MIPI_D2+ HSSI_D2_P are differential small amplitude signals.
12 MIPI_D2- HSSI_D2_N are differential small amplitude signals.
13 GND Ground
14 MIPI_D1+ HSSI_D1_P are differential small amplitude signals.
15 MIPI_D1- HSSI_D1_N are differential small amplitude signals.
16 GND Ground.
17 MIPI_CLK+ HSSI_CLK_P are differential small amplitude signals
18 MIPI_CLK- HSSI_CLK_N are differential small amplitude signals
19 GND Ground.
20 MIPI_D0+ HSSI_D0_P are differential small amplitude signals.
21 MIPI_D0- HSSI_D0_N are differential small amplitude signals.
22 GND Ground.
23 MIPI_D3+ HSSI_D3_P are differential small amplitude signals.
24 MIPI_D3- HSSI_D3_N are differential small amplitude signals.
25 GND Ground.
26 NC
27 RESET Reset signal
28 NC
29 VDD1V8 I/O power supply
30 VDD3V3 Power supper 3.0-3.6 V
31 VDD3V3 Power supper 3.0-3.6 V
Product Application Scenario

The YVO070HDM-H01 7.0-inch (9:16 aspect ratio) IPS LCD module, featuring 800×RGB×1280 resolution, 350 Cd/m² luminance, 800:1 contrast ratio, MIPI interface, and a working temperature range of -10℃~+50℃, is widely applied in various scenarios: it serves as a display for smart portable devices (such as handheld industrial scanners and small-sized tablets) to show scanned data and operation interfaces, leveraging its compact size (99.8×161.05×2.65mm) for easy integration and MIPI high-speed transmission for smooth data display; it is used in in-vehicle infotainment sub-screens and rear-seat entertainment terminals to present navigation tips and multimedia content, with its IPS all-direction viewing angle ensuring clear visibility for passengers and RoHS compliance meeting automotive environmental standards; it works as a display for medical home monitoring devices (like portable blood pressure monitors and oxygen concentrators) to show health data, maintaining stable performance via strict reliability tests (high-temperature/humidity operation and thermal cycling) and ensuring accurate data presentation with its 16.7M color reproduction; it is also applied to smart home control panels (such as central lighting and curtain controllers) to display environmental parameters and support touch control, with its 20000-hour backlight lifespan meeting long-term home use needs and image inversion function (UP/DOWN, LEFT/RIGHT) adapting to different installation orientations.

Customization Options


The  YVO070HDM-H01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.
