MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface

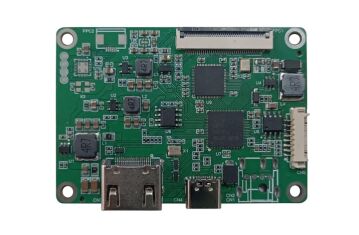

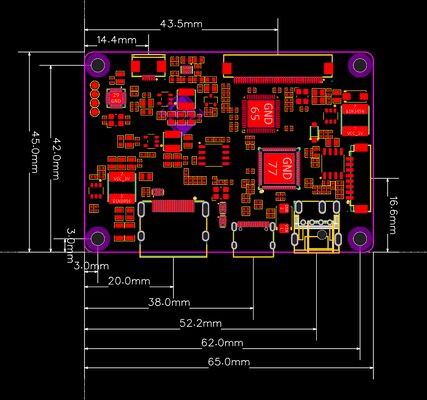

The H2M8118_V2.0 is a multi-functional LCD monitor driver board from Shenzhen Yingzhanying Technology Co., Ltd., supporting MIPI screen resolutions ranging from 480×480 to 1200×1920 and a default maximum backlight current of 180mA. It features 1 HDMI 1.4 input (via CN3 standard HDMI interface) and 1 MIPI DSI output (FPC1, 0.5mm-40Pin) that supports 1~4 lanes with a maximum data rate of 1.5Gb/s per lane, along with display scaling functionality. For user control, it is equipped with a CN5 1.25mm-8Pin key interface (allowing adjustment of backlight current, contrast, color temperature, etc.) with keys including MENU (confirm), EXIT, LEFT (shift down/decrease), RIGHT (shift up/increase), and POWER, plus LEDG (green) and LEDR (red) indicator lights. For touch functionality, it has an FPC2 0.5mm-6Pin IIC touch interface (default non-functional) that supports touch solutions like GT911, CST830, and FT6336.Power options include 12V DC input (via CN1, 2.0mm-4Pin connector) and 5V&USB input (via CN4, standard 16Pin Type-C connector). Operating within a working temperature range of 0℃~+40℃ (storage temperature: -10℃~+50℃) and a relative humidity of ≤80% (non-condensing), it requires attention to avoiding strong static electricity and correct connection of wires before power-on. With its integrated input/output interfaces, adjustable display parameters, and compatible touch solutions, the H2M8118_V2.0 serves as a practical and versatile solution for various LCD monitor application scenarios.
