10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch

Products

10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch

MOQ:	500
Price:	11.31-14.71/pc
Standard Packaging:	30pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	5000/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YB101WSVL-P01

Document

Highlight:

LVDS LCD Driver Board 5V

10.1 Inch LVDS LCD Driver Board

5V HDMI LCD Driver Board

Product Description

10.1-inch LVDS LCD Driver Board with 5V Power HDMI Signal Multi-point Capacitive Touch

1024*600 Resolution -20~70°C Operating LVDS 40 PINHigh compatibility(Windows, Android, Raspberry Pi)

Product Features

The YB101WSVL-P01 is a 10.1-inch LCD monitor driver board from Shenzhen Yingzhanying Technology Co.,Ltd, supporting 1024×600 resolution. It features HDMI signal input (via CN1 interface) and multi-point capacitive touch—with J4 6Pin FPC touch interface and J5 Type-C USB for touch signal transmission. Powered by DC 5V (through J8608 Type-C connector) and equipped with a J114 0.5mm 40Pin LVDS display interface for stable image output, it also supports audio functions including a J32 3.5mm headphone jack and J14/J15 speaker connectors (each supporting up to 2.6W, with speaker output requiring a headphone driver). With a standby power consumption of <0.2W, it integrates practicality, functionality and efficiency in a compact solution.

Brand Name	YZY Driver board	Place of Origin	Guangdong, China
Type	10-inch LVDS Interface LCD Driver Board	Item No.	YB101WSVL-P01
Interface	HDMI+RGB	Outline Dimensions	235*159.98mm
Operating Temp.	-20 ~ +70 °C	Expand	Button panel speaker
Highlight	LVDS 40PIN Industrial Control Specification High Compatibility Driver Board

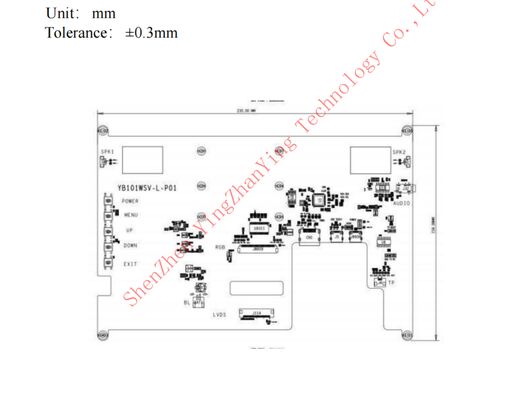

Technical Drawing

10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch 0

LCD Display RGB Interface PIN Definition

PIN	Signal	Description
1	VCOM	Common Voltage
2-3	VDD	Power Voltage for digital circuit
4	NC	No connection
5	RESET	Global reset pin,Active low to enter reset state.Suggest to connecting with an RC circuit for stability.Normal pull high.(R=10K ohm,C=0.1uF) Note:If RC is not added,users must follow rule:T25=50ms to keep low power.
6	STBYB	Standby mode,Normal pulled high STBYB=1:normal operation; STBYB=0,timing controller,source driver will turn off,all output are High-Z.
7	GND	Ground
8	RXN0-	-LVDS differential data input
9	RXN0+	+LVDS differential data input
10	GND	Ground
11	RXN1-	-LVDS differential data input
12	RXN1+	+LVDS differential data input
13	GND	Ground
14	RXN2-	-LVDS differential data input
15	RXN2+	+LVDS differential data input
16	GND	Ground
17	RXCLKN-	-LVDS differential clock input
18	RXCLKN+	+LVDS differential clock input
19	GND	Ground
20	RXN3-	-LVDS differential data input
21	RXN3+	+LVDS differential data input
22	GND	Ground
23-24	NC	No connection
25	GND	Ground
26-27	NC	No connection
28	SELB	6bit/8bit mode select(Note 1)
29	AVDD	Power for Analog Circuit
30	GND	Ground
31-32	LED-	LED Cathode
33	L/R	Horizontal inversion(Note 2)
34	U/D	Vertical inversion(Note 2)
35	VGL	Gate OFF Voltage
36-37	NC	No connection
38	VGH	Gate ON Voltage
39-40	LED+	LED Anode
35	NC
36	GND	Power Ground
37	NC
38	NC
39	NC
40	NC

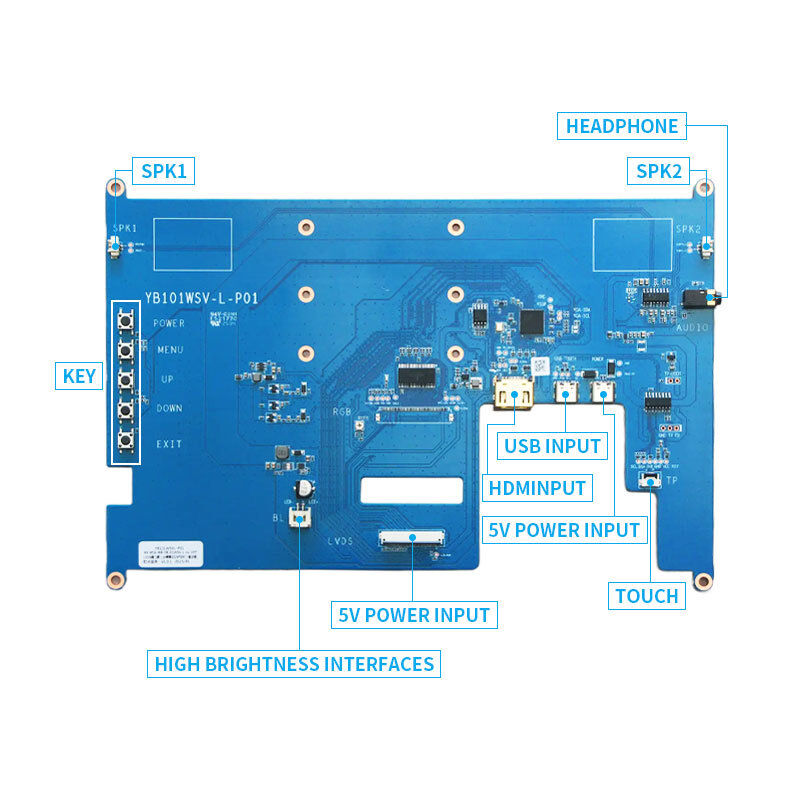

Product Picture

The YB101WSVL-P01 LCD Monitor Driver Board from Shenzhen Yingzhanying Technology is a compact, high-performance solution with HDMI input, MIPI DSI output, multi-point capacitive touch via I2C, dual power options (12V DC & 5V USB), and audio output, designed for reliable LCD display control in industrial and commercial applications.

10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch 1

Customization Options

The LVDS/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
