5.79 Inch E-paper Display 272×792 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

Products

5.79 Inch E-paper Display 272×792 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

MOQ:	300
Price:	12.19-14.24/pc
Standard Packaging:	35 pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE0579A16

Document

Highlight:

5.79 inch e paper display

5.79 inch e paper e ink display

Product Description

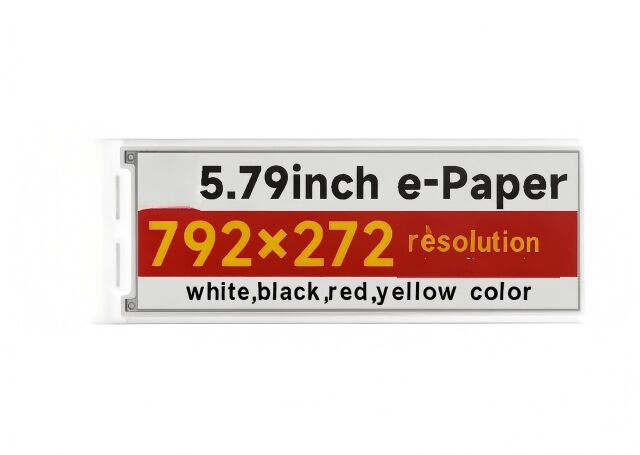

5.79 Inch E-paper Display 272×792 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

(Model: YE0579A16)

Product Features

◊272×792 pixels display (144 DPI, pixel pitch 0.1755×0.1755mm)

◊Black/White/Red/Yellow (B/W/R/Y) 4-color full display capabilities

◊High contrast & high reflectance (white L*=63~65, black L*=9~14, red L*=25~28, yellow L*=55~62)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 360mAs max update power)

◊Bi-stable display & commercial temperature range (0~40℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temp sensor interface (internal/external)

◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE0579A16 is an Active Matrix Electrophoretic Display (AMEPD) optimized for large-size multi-level color-coded scenarios. It features a 5.79-inch active area (47.74×139.00mm) with 272×792 pixels (0.1755×0.1755mm pixel pitch, 144 DPI), supporting Black/White/Red/Yellow 4-color display—ideal for precise information categorization in electronic shelf labels, logistics tags, and industrial terminals. The module integrates dual high-performance IST7158CA1 driver ICs, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (56.94×150.92×0.90mm) and lightweight design, it fits seamlessly into space-constrained devices. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	272×792 (144 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	56.94(H)×150.92(V)×0.90(D) mm
Supplier Type	All (IPS)	Active Area	47.74(H)×139.00(V) mm
Interface	3-wire/4-wire SPI (BS1 pin selectable), I2C	Driver IC	IST7158CA1×2
MOQ	5PCS	Operating Temperature	0~40℃ (45~70%RH)
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	-25~50℃ (max 5 years)
Colors	Black/White/Red/Yellow
Power Consumption	Update: ≤360mAs (25℃); Deep Sleep: ≤3μA

Product Picture

The YE0579A16 excels in large-size multi-level color-coded scenarios with its 144 DPI high resolution and 4-color capability. It vividly presents multi-dimensional information—red for promotions/urgent alerts, yellow for new arrivals/stock warnings, black for detailed text/barcodes, and white for background—making it perfect for electronic shelf labels, logistics tags, industrial control terminals, and retail price signs. Its 272×792 resolution and 5.79-inch size are tailored for displaying multi-line information, such as product specifications, price tiers, and inventory status. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores, warehouses, or outdoor kiosks. With an ultra-thin (0.90mm) design, it fits into space-constrained devices, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0579A16 is mainly designed for large Electronic Shelf Label (ESL) systems and industrial control with diverse industry applications. In retail, it serves as large electronic shelf labels for supermarkets, pharmacies, and bookstores, using 4-color display to highlight promotions (red), new arrivals (yellow), detailed product descriptions/prices (black), and stock status (white background)—enhancing customer information access and reducing manual label updates. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills, transportation statuses, priority levels (red for urgent, yellow for regular), withstanding -25~50℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white), fault (black), urgent (red), and maintenance alerts (yellow) for equipment. With ROHS2.0+HF+REACH compliance and rigorous reliability testing (high/low temperature, vibration, drop impact), it meets global environmental and reliability demands for large-size 4-color e-paper applications.

Core Advantages

◊ Large-Size 4-Color Display: Precise Classification, Rich Information Hierarchy

The YE0579A16 features a 5.79-inch large active area (47.74×139.00mm) with 272×792 resolution (144 DPI), supporting 4-color display for multi-level information classification. Its optical performance is excellent: white state L*=63~65 (b*=2.5), black state L*=9~14 (a*≤7), red state L*=25~28 (a*=38~40), yellow state L*=55~62 (b*=63~68), white reflectance 30~35%, and contrast ratio ≥10:1. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color or brightness deviation from any direction, supporting multi-person viewing for large shared devices like industrial monitors or retail price tags.

◊ Dual IC & Stable Performance: Long-Term Reliability

Powered by bi-stable technology, the module only consumes power during updates (max 360mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated large devices for over 12 months, reducing battery replacement frequency. It integrates dual IST7158CA1 driver ICs with on-chip booster/regulator, generating VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stable operation in 0~40℃. It passed rigorous reliability tests, including 240-hour high/low-temperature storage, 168-hour high-humidity operation, and 50 temperature cycles (-25℃~60℃), ensuring long-term use.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS1 pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be pulled high or low if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Waveform is stored in on-chip OTP, supporting custom programming. The flexible FPC with PI stiffener simplifies installation in non-flat large device layouts, reducing development cycle and cost.

◊ Durable & Wide Adaptability: Harsh Environment Resistant

With an outline of 56.94×150.92×0.90mm, the YE0579A16 is suitable for large-size device integration. The hard-coat antiglare surface resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global environmental standards. It supports transportation temperature -25~50℃ (10 days) and storage temperature -25~50℃ (max 5 years), adapting to harsh environments like cold storage, warehouses, or outdoor retail. It passed vibration testing (1.04G, 10~500Hz) and drop impact (100cm height on concrete), ensuring durability during transportation and use. The 5-year design life (25℃/60%RH, daily updates) guarantees long-term reliable operation for large electronic shelf labels and industrial devices.

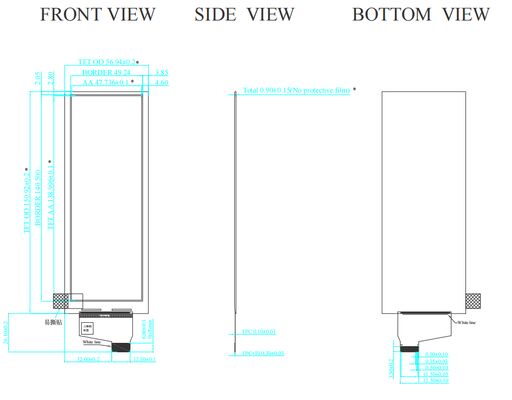

Technical Drawing
