2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface
  • name
  • name
  • name

2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface

MOQ: 1000 pieces
Price: $8.99~12.99/pieces
Standard Packaging: 6*6*4
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GME242-7PW_LCM
Highlight:

2.42 Inch OLED Display Module

,

128x64 Resolution OLED Module

,

SPI & I2C Interface OLED Panel

Product Description
2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface
High-performance 2.42-inch OLED module featuring 128×64 resolution with SPI & I2C dual interfaces. Equipped with SSD1309 driver IC for clear, stable visuals, wide temperature adaptability and low power consumption, suitable for various electronic device applications.

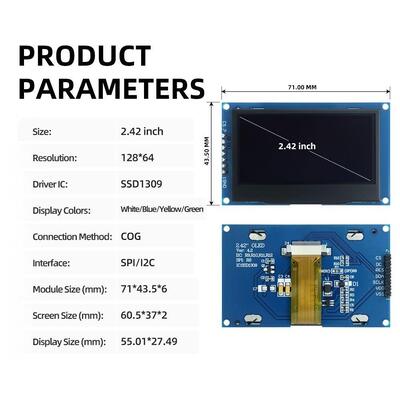

Key Specifications
Product 2.42 inch OLED Module Number GME242-7PW_LCM
Resolution 128(H)×64(V) dots Color White/Yellow/Blue/Green (4 options)
Mounting Type Connector PCB Thickness 1.00 mm (max)
Active Area 55.01×27.49 mm Pins 7P
Interface SPI & I2C Operating Temperature -40℃ to +70℃
Driver IC SSD1309 Storage Temperature -40℃ to +85℃
General Tolerance ±0.2 mm RoHS Compliance YES
Product Highlights
2.42-inch OLED display, 128×64 resolution, SPI&I2C dual interfaces, SSD1309 driver IC, 4 color options (white/yellow/blue/green), wide operating temperature (-40~70℃), 7-pin design, RoHS compliant, compact structure, stable performance, low power consumption, easy integration with mainstream MCUs.
Technical Features
  • SPI&I2C dual interface support for flexible wiring and stable data transmission, adapting to different circuit designs
  • 2.42-inch optimal size with 128×64 resolution, providing clear display effect for medium-sized device interfaces
  • Wide operating temperature range (-40℃ to +70℃) for harsh environment applications (industrial/automotive)
  • SSD1309 driver IC ensuring reliable performance, low power consumption and long service life

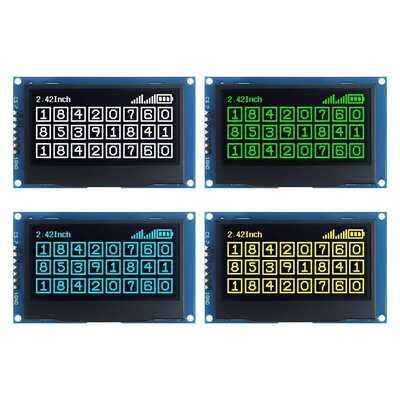

  • 4 color options (white/yellow/blue/green) to meet diverse product design needs
  • Strict general tolerance control (±0.2 mm) for high-precision installation and matching
  • 7-pin standard layout with 2.50 mm pin pitch, facilitating soldering and compatibility with standard sockets
  • RoHS compliant, meeting international environmental protection standards and market access requirements
Electrical Specifications
Key power supply pins: VDD (Power Supply), VSS (Ground); provides stable power for module operation.
Data transmission pins: SCLK (Serial Clock), SDA (Serial Data) for SPI&I2C communication, ensuring smooth data interaction.
Control pins: RES (Reset), DC (Data/Command Control), CS (Chip Select) for precise module function control.
Low power consumption design, suitable for battery-powered portable devices and energy-saving electronic products.

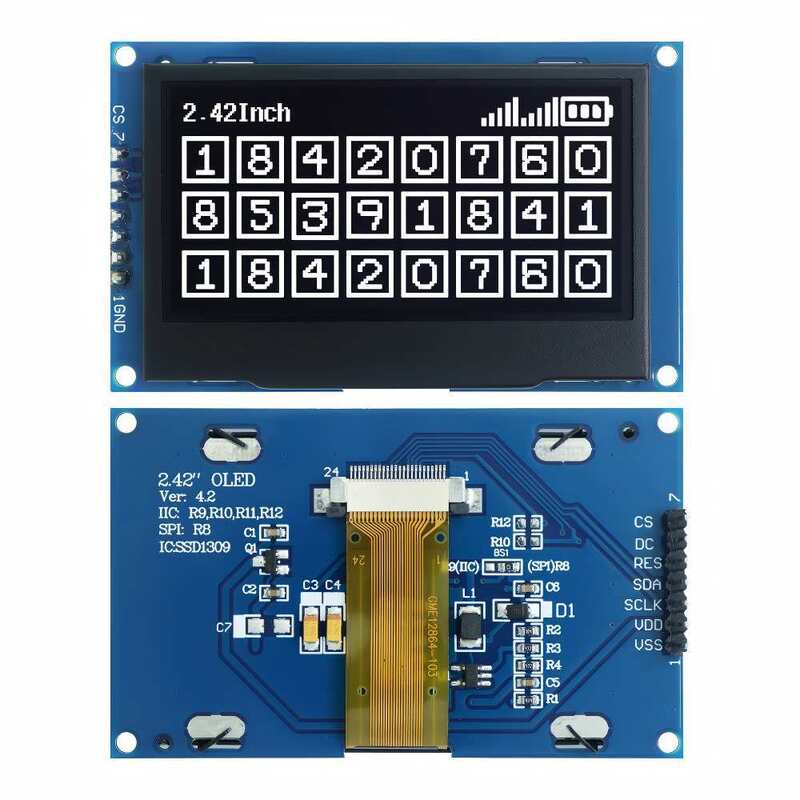

Pin Definition
PIN Symbol Description
1 VSS Ground Pin; Reference for all voltage signals and circuit grounding
2 VDD Power Supply Pin; Provides working voltage for the module's internal circuit
3 SCLK Serial Clock Pin; Transmits clock signal for SPI&I2C data synchronization
4 SDA Serial Data Pin; Transmits bidirectional data for SPI&I2C communication
5 RES Reset Pin; Low level triggers module initialization, high level for normal operation
6 DC Data/Command Control Pin; High level for data input, low level for command input
7 CS Chip Select Pin; Low level enables module communication, high level disables
Application Scenarios
  • Industrial control devices (compact PLC displays, sensor data monitoring panels)
  • Portable electronic instruments (handheld multimeters, temperature/humidity loggers)
  • Smart home equipment (intelligent control panels, thermostat displays)
  • Automotive electronics (in-vehicle secondary displays, diagnostic tool interfaces)
  • Medical devices (portable health monitors, blood glucose meter screens)
  • Consumer electronics (portable audio players, electronic dictionaries)
  • IoT terminals (smart sensor displays, wireless data transmission equipment)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible display modules)
Customization Options
Interface Customization: SPI/I2C communication parameter adjustment and address setting
PCB Customization: PCB size, shape and pin layout optimization according to device structure
Color Selection: Customized color configuration (white/yellow/blue/green) based on usage scenarios
Packaging Solution: Anti-static packaging with desiccant for long-distance transportation and storage
Labeling Service: Custom module number or brand logo printing on PCB
Warranty Extension: Extended warranty period (12~24 months) for bulk orders
Handling Notes
  • Electrostatic Protection: Use anti-static bracelets and grounded tools during handling to avoid electrostatic damage
  • Cleaning Instructions: Clean the polarizer surface with adhesive tape (e.g., Scotch Mending Tape No. 810); avoid solvents like alcohol or water
  • Storage Conditions: Store in anti-static containers at 23±5℃, humidity ≤55±15%RH; avoid direct sunlight and extreme temperatures
  • Operation Precautions: Follow correct power-on/off sequence; do not apply input signals when power is off
  • Soldering Tips: Soldering temperature: 320~350℃; soldering time: ≤10 seconds per pin; avoid excessive force on pins
  • Mechanical Protection: Do not apply pressure to the display active area; avoid bending or crushing the PCB and FPC
  • Moisture Prevention: Do not operate the module in dewy or high-humidity environments to prevent electrode corrosion
Dimension Drawing
2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface 0
Custom Display Solutions
2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface 1
Our Factory
2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface 2
Shipment & Payment
2.42 Inch OLED Display Module with 128x64 Resolution and SPI & I2C Interface 3
