YBC101NSM-T1 10.1 Inch IPS LCD Display with 800×1280 Resolution and Full Lamination Capacitive Touch Screen

YBC101NSM-T1 10.1 Inch IPS LCD Display with 800×1280 Resolution and Full Lamination Capacitive Touch Screen

YBC101NSM-T1 10.1 Inch IPS LCD Display with 800×1280 Resolution and Full Lamination Capacitive Touch Screen

Brand Name: YZY
Model Number: YBC101NSM-T1
MOQ: 100
Price: $50-55/pieces
Payment Terms: T/T
Supply Ability: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
CE/ROHS
Type:
MIPI DSI Touch Screen
Display Size:
10.1 Inch
Supplier Type:
Factory
Video Input:
MIPI DSI
Brightness:
300cd/m²
Packaging Details:
300*240*60mm/900g
Highlight:

10.1 Inch Capacitive Touch Display

,

800×1280 Resolution IPS LCD Display

,

Full Lamination MIPI DSI Touch Screen

Product Description

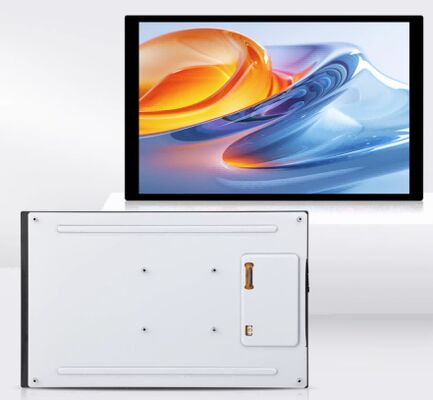

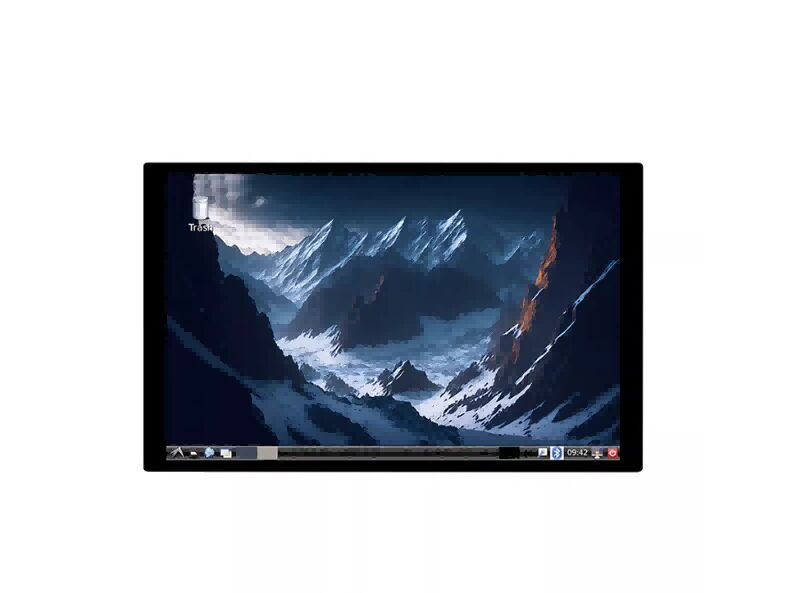

YBC101NSM-T1 10.1 Inch IPS MIPI DSI Display
10.1-inch IPS MIPI DSI capacitive touch display with 800×1280 resolution and full lamination technology. Compatible with Raspberry Pi, Omni3576, and similar development boards.
Product Overview
The YBC101NSM-T1 is a vertical touchscreen LCD display engineered for interactive applications including tablet computers, entertainment systems, and information dashboards. Featuring high-resolution display and robust construction.
Key Features
  • 10.1-inch DSI touch screen with capacitive ten-point touch control
  • IPS display panel with 800×1280 hardware resolution
  • Full-lamination technology for enhanced picture clarity
  • Stained glass touch cover with 6H hardness rating
  • DSI interface with up to 60Hz refresh rate
  • Software-controlled backlight brightness adjustment
  • Aluminum back shell with passive heat dissipation design
Interface Configuration

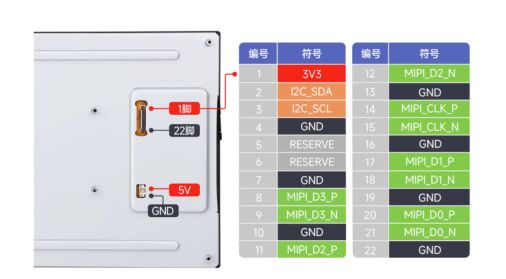

YBC101NSM-T1 display interface diagram and connections
Compatible Motherboards

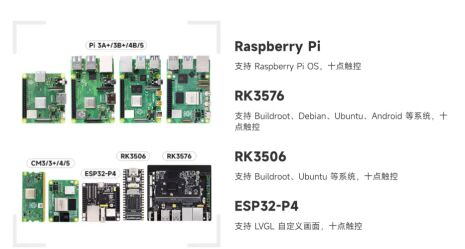

Compatible motherboard types for YBC101NSM-T1 display
Package Contents
YBC101NSM-T1 display package contents and accessories
