0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃
  • name
  • name
  • name
  • name

0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃

MOQ: 5 pieces
Price: $1.8~2.99/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0078IMI-J1
Highlight:

0.78 inch SH1107 OLED module

,

80x128 dot matrix OLED display

,

I2C 2-pin OLED module

Product Description

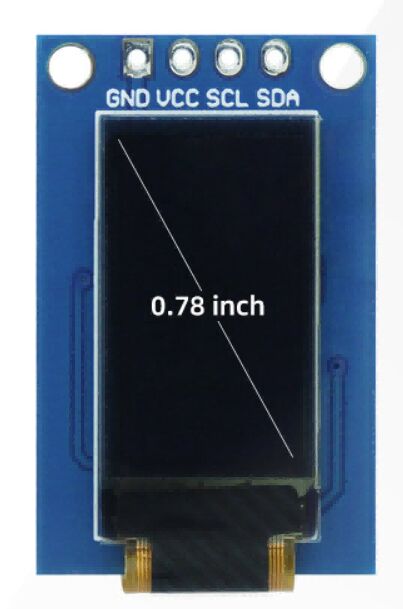

0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃
GME078W-4 0.78-inch OLED Module COG SH1107 I2C Serial Interface This industrial grade 0.78-inch OLED module adopts positive OLED mode and advanced COG (Chip On Glass) packaging design, driven by SH1107 professional driver IC. It features 3.3~5V operating voltage, monochrome display, and excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage), with compact outline dimension (32.0×19.0×11.3mm max thickness), ultra-low power consumption, stable performance and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type Positive Monochrome OLED Module
Module Model YOK0078IMI-J1
Part Number GME078W-4
Driver IC SH1107
Operating Voltage 3.3~5V DC (VCC at Pin 2)
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 2PIN (1: GND, 2: VCC)
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Connection Type COG (Chip On Glass)

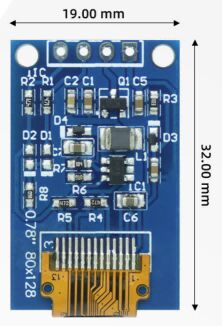

Outline Dimension 32.0mm(L)×19.0mm(W)×11.3mm max(T)
Viewing Area (V/A) 18.26mm(L) × 10.68mm(W)
Active Area (A/A) 17.26mm(L) × 9.68mm(W)
Dot Pitch 0.135mm(L) × 0.12125mm(W)
Dot Size 0.115mm(L) × 0.10125mm(W)
OLED Mode Positive
Product Features
  • 0.78-inch compact size with monochrome OLED display, high contrast ratio and clear visual effect
  • COG packaging design, 32.0×19.0×11.3mm max thickness outline dimension, perfect for space-constrained embedded applications
  • SH1107 dedicated driver chip, strong anti-interference performance, stable operation and long service life
  • I2C (IIC) serial interface with 2-pin design (GND, VCC), simple circuit connection and high compatibility
  • 3.3~5V wide operating voltage range, stable power supply performance for industrial and consumer electronics scenarios
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial environments
  • Precise mechanical parameters (0.135mm dot pitch, 0.115mm dot size), ensuring stable assembly and consistent product quality
  • Low power consumption and high reliability, ideal for portable and battery-powered electronic devices
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products

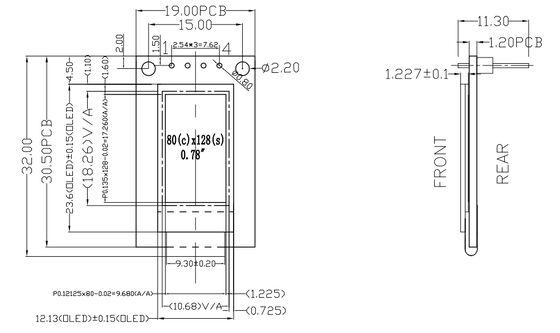

Dimension Drawing
0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃ 0
Product Application
0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃ 1
Cooperative Partner
0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃ 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
