0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing
  • name
  • name
  • name

0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing

MOQ: 5 pieces
Price: $1.29~1.99/pieces
Standard Packaging: 12*4*2
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0091MCB-J1
Highlight:

0.91 inch white OLED module

,

SSD1306 I2C OLED display

,

passive matrix OLED module

Product Description
0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing
2832TSWEG02 0.91-inch White OLED Passive Matrix Module SSD1306 I2C Serial Interface This industrial grade 0.91-inch white OLED module adopts passive matrix technology and reliable design, driven by SSD1306 professional driver IC. It features 3.0V power supply voltage (Vcc 8.0V), 6 O'clock viewing direction, I2C (IIC) interface, and excellent temperature adaptation range (-20~70℃ operating, -30~80℃ storage), with compact outline dimension (38.00×12.00×3.10mm max thickness), ultra-low power consumption, stable performance and RoHS compliance, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type 0.91" OLED Passive Matrix White
Module Model YOK0091MCB-J1
Part Number GME091WBY-47
Driver IC SSD1306
Drive Mode 1/32 Duty
Power Supply Voltage 3.0V DC
Vcc 8.0V DC
Interface Type I2C (IIC, Serial Interface)
Viewing Direction 6 O'clock
RoHS Compliant Yes
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type Passive Matrix

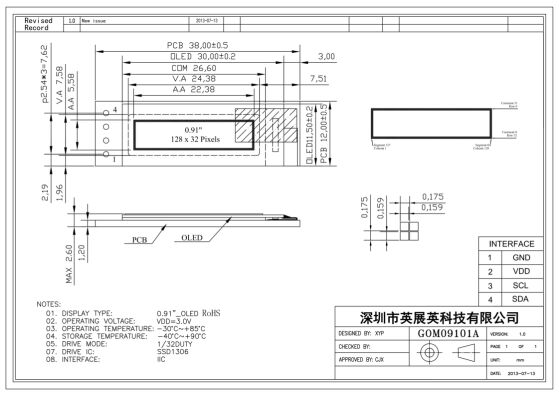

Outline Dimension 38.00mm(L)×12.00mm(W)×3.10mm max(T)
Viewing Area (V/A) 24.384mm(L) × 7.584mm(W)
Active Area (A/A) 22.384mm(L) × 5.584mm(W)
Dot Pitch 0.175mm(W) × 0.175mm(H)
Dot Size 0.159mm(W) × 0.159mm(H)
Product Features
  • 0.91-inch compact size with white passive matrix OLED display, clear visual effect and high contrast ratio
  • Passive matrix design, 38.00×12.00×3.10mm max thickness outline dimension, perfect for space-constrained embedded applications
  • SSD1306 dedicated driver chip, strong anti-interference performance, stable operation and long service life
  • I2C (IIC) serial interface, simple circuit connection and high compatibility with various control systems
  • 3.0V power supply voltage (Vcc 8.0V), stable power supply performance for industrial and consumer electronics scenarios
  • 6 O'clock viewing direction, optimized visual experience for specific application scenarios
  • Wide temperature range (-20~70℃ operating, -30~80℃ storage), reliable performance in harsh industrial environments
  • RoHS compliant, meeting international environmental protection standards and suitable for global market sales
  • Precise mechanical parameters (0.175mm dot pitch, 0.159mm dot size), ensuring stable assembly and consistent product quality
  • Low power consumption and high reliability, ideal for portable and battery-powered electronic devices
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products

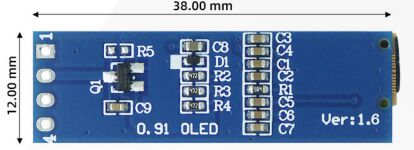

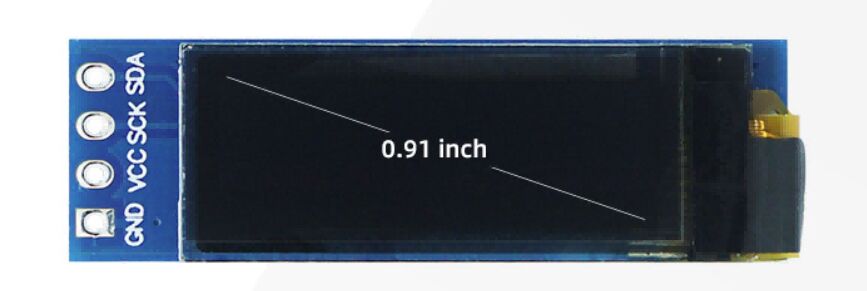

Product Image
0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing 0
Product Application
0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing 1
Cooperative Partner
0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
