0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver
  • name
  • name
  • name
  • name

0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver

MOQ: 5 pieces
Price: $1.88~3.88/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0069KAI-J1
Highlight:

0.96 Inch OLED Display Module

,

128x64 Resolution COG OLED Module

,

I2C Interface SH1107 Display Module

Product Description

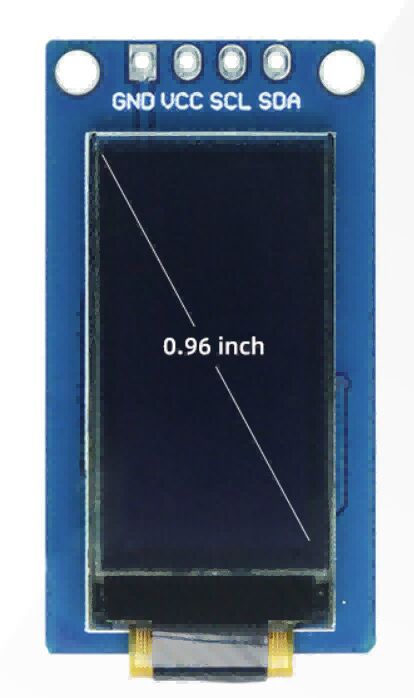

GME096VW-4 0.96 Inch 128x64 COG OLED Display Module
This industrial-grade 0.96-inch OLED module features positive OLED mode and advanced COG (Chip On Glass) packaging design, driven by the SH1107 professional driver IC. With 3.3V logic operating voltage, 9.0V OLED driving voltage, 64×128 dot matrix resolution, and I2C serial interface, it offers excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage). Compact outline dimensions (36.5mm×19mm×11.30mm), ultra-low power consumption, stable performance, and high reliability make it ideal for industrial control, portable electronics, smart devices, measuring instruments, and embedded display systems with strict space and reliability requirements.
Product Specifications
Display TypePositive Monochrome OLED Module
Part NumberGME096VW-4
Module ModelYOK0096GMI-J1
Resolution64 × 128 Dots
Driver ICSH1107
Drive Mode1/64 Duty
Logic Operating Voltage (VDD)3.3V DC
OLED Driving Voltage (VOP)9.0V DC
Interface TypeI2C (IIC, Serial Interface)
Operating Temperature-40℃ ~ +70℃ (Wide Temperature)
Storage Temperature-40℃ ~ +85℃
Connection TypeCOG (Chip On Glass)

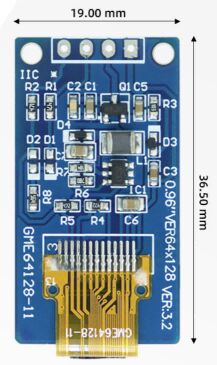

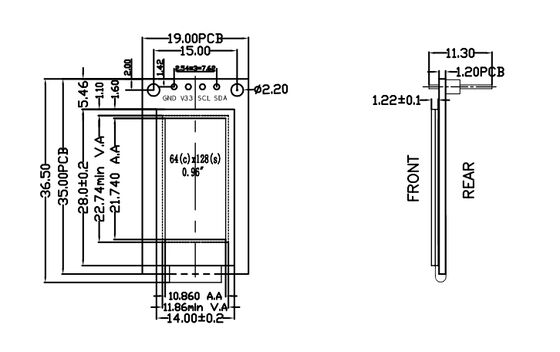

Outline Dimension36.5mm(L)×19mm(W)×11.30mm(t)
Viewing Area (V/A)22.74mm(L) × 11.86mm(W)
Active Area (A/A)21.74mm(L) × 10.86mm(W)
Dot Pitch0.17mm(L) × 0.17mm(W)
Dot Size0.15mm(L) × 0.15mm(W)
OLED ModePositive (POLARIZER MODE: TRANSMISSIVE/NORMALLY BLACK)
Mounting Hole Size2.20mm Diameter
Viewing DirectionAll (Full Viewing Angle)
Display ModeSingle Screen Display
Product Features
  • 0.96-inch compact size with 64×128 dot matrix resolution, clear monochrome display effect and high contrast ratio
  • COG packaging design, 36.5×19×11.30mm outline dimension, perfect for space-constrained embedded applications
  • SH1107 dedicated driver chip, strong anti-interference performance, stable operation and long service life
  • I2C (IIC) serial interface design, simple circuit connection and high compatibility with various control boards
  • 3.3V stable logic operating voltage + 9.0V OLED driving voltage, optimized power supply performance for industrial scenarios
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial environments
  • Precise mechanical parameters (0.17mm dot pitch, 0.15mm dot size), 2.20mm diameter mounting hole, ensuring stable assembly and consistent product quality
  • Full viewing angle (All direction) design, clear display without visual dead angle
  • Low power consumption and high reliability, ideal for portable and battery-powered electronic devices
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products
Technical Documentation
0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver 0
Application Examples
0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver 1
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
