YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
  • name
  • name
  • name
  • name

YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output

MOQ: 100
Price: $27.5-32.7/pieces
Standard Packaging: 300*120*60mm/900g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 10K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBN028JJH-Q1
Document
YBN028JJH-Q1（MPC2809 Data....pdf
Type:
HDMI LCD Display 480x480
Display Size:
2.76 Inch
Supplier Type:
Factory
Video Input:
HDMI
Brightness:
250cd/m²
Highlight:

2.76 inch Round Screen

,

IPS LED Backlight Display Module

,

480x480 Resolution HDMI LCD Display

Product Description
YZY 2.76 Inch Round Screen USB Type C LCM Display Module
This AIDA64 IPS LED Backlight HD video output extended screen serves as a computer secondary display for real-time monitoring. Ideal for case DIY projects with metal casing, it provides high-quality visual output for various applications.
Key Features
  • 2.76-inch IPS full view high-definition display with 480*480 resolution
  • Mini-HDMI input compatibility for versatile connectivity
  • Functions as general-purpose HDMI monitor for computers as secondary display
  • Compatible with game consoles and Raspberry Pi systems (Raspberry Pi OS, Ubuntu, Kali-Linux, Win10 IOT)
  • Works as PC monitor supporting Windows 7, 10, and 11 systems with free driver installation
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output 0
Technical Specifications
Model Name YBN028JJH-Q1 Part No. MPC2809
LCD Size 2.76 inch Panel Type IPS
Resolution 480 * 480 pixels (RGB) Active Area 70.13 * 70.13 mm
View Angle 170 degrees Outline Dimension 89.50 * 89.50 * 10.00 mm
Contrast 800 Luminance (TYP) 250 cd/m²
Backlight Current 160 mA Backlight Type White LED
Pixel Pitch 0.1461 * 0.1462 mm Operation Temperature -20 to 70 ℃
Video Input Mini HDMI Storage Temperature -30 to 80 ℃
Voltage 5.0 V Power Type-C
Weight 175 g Total Power (max) 0.9 W

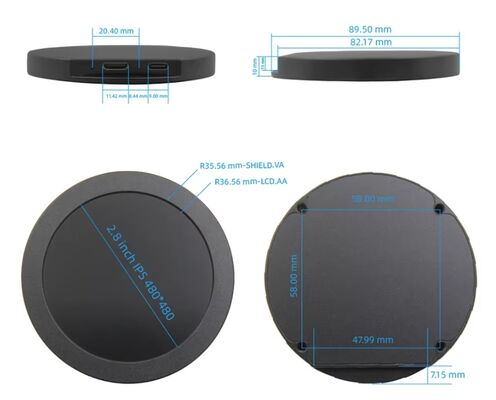

Product Drawings
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output 1

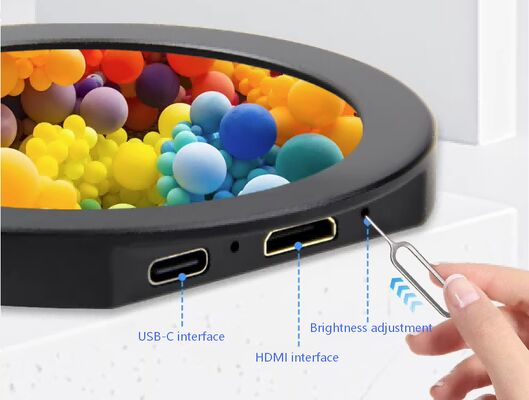

Interface and Switch Configuration
Interface Function Description
HDMI For HDMI high-definition video input, connect the main device with a Mini HDMI cable
Backlight Use the card pin to insert into the switch inside the press hole to adjust brightness, press once to increase brightness by 10%, long press to turn off screen
Type-C Use the Type-C-USB connection cable to connect the interface, which is only used for power supply
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output 2
