10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio

MOQ: 5 pieces
Price: $25.52-33.93/pieces
Standard Packaging: 25*30*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVT101VLM-A01
Highlight:

10.1 inch monochrome LCD module

,

MIPI LCD display 800x1280

,

high contrast LCD 380cd/m²

Product Description

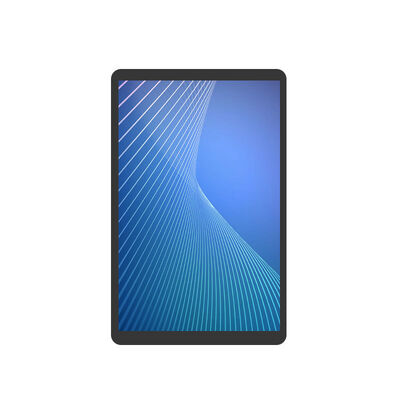

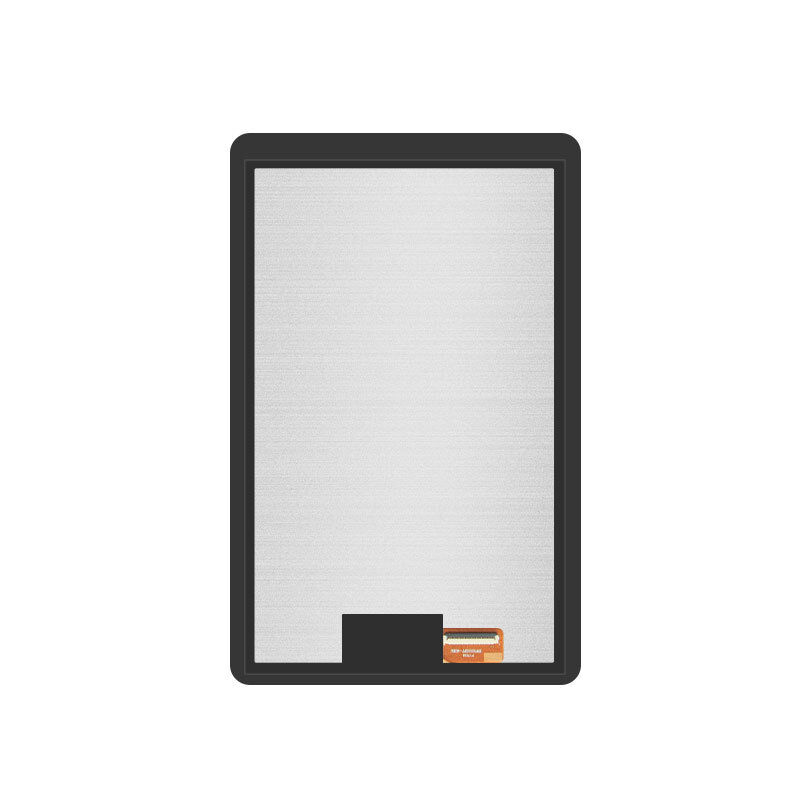

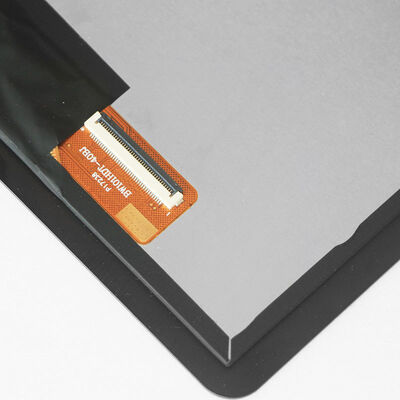

YZY 10.1 Inch TFT LCD Touch Display Module
High performance YVT101VLM-A01 10.1 inch TFT LCD module with 10-point capacitive touch screen, 800×1280 resolution, MIPI interface and JD9366TC driver for industrial and smart device applications.
Product Overview
This 10.1-inch color TFT LCD module features 800×1280 high resolution, 16.7M true color display, and 10-point self-capacitance touch panel. Adopting normally black display mode, it provides 1000:1 high contrast ratio, 380cd/m² high brightness and full viewing angle performance. Driven by JD9366TC IC with MIPI interface, it ensures stable signal transmission, fast response and reliable long-term operation, widely used in industrial control, medical equipment, automotive displays, smart home and human-machine interface systems.
Technical Specifications
Display Type 10.1 Inch Color TFT LCD Module with Capacitive Touch
Module Number YVT101VLM-A01
Part Number YA8X2-101TI
Panel Size 10.1 Inch
Resolution 800(H) × 3(RGB) × 1280(V) Pixels
Pixel Pitch 0.1692mm × 0.1692mm
Pixel Arrangement RGB Stripe
Display Mode Normally Black
Display Colors 16.7M Colors
Response Time 30ms (Max)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 80°/80°/80°/80° (Typ, CR≥10)
View Direction Free (Gray Inversion)
Interface MIPI Interface
Driver IC JD9366TC
Brightness 380 cd/m² (Typical)
Touch Points 10 Points Touch
Touch Type Self-Capacitance
Outline Dimension 153.85mm(H) × 243.85mm(V) × 3.9mm(T)
Compliance RoHS Compliant
Key Features
  • 10.1-inch industrial TFT LCD module with 800×1280 high resolution and 16.7M true color for clear and delicate image display
  • Built-in 10-point self-capacitance touch panel, supporting sensitive, accurate and stable multi-touch operation
  • 380cd/m² high brightness and 1000:1 high contrast ratio, ensuring excellent visibility in various lighting environments
  • Full viewing angle design with free view direction, no gray inversion and wide application scenarios
  • Standard MIPI interface and JD9366TC driver IC for stable signal transmission and easy system integration
  • Normally black display mode with RGB stripe pixel arrangement for vivid color and sharp image performance
  • Fast 30ms response time for smooth dynamic image display and improved user experience
  • Ultra-thin 3.9mm profile design, suitable for slim and compact smart device assembly
  • High reliability structure, long service life, compatible with industrial, medical and vehicle-mounted environments
  • RoHS compliant, eco-friendly and meets global market certification and access requirements
Applications
  • Industrial control panels and human-machine interface (HMI) systems
  • Medical diagnostic equipment and portable healthcare devices
  • Smart home central control panels and intelligent automation systems
  • Automotive displays and vehicle-mounted infotainment terminals
  • Commercial advertising players and digital signage display solutions
  • Industrial tablets and handheld mobile data acquisition terminals
  • IoT intelligent gateways and smart home control devices
  • Security monitoring displays and access control touch panels
  • Office electronics and multi-functional intelligent control equipment
  • Embedded systems and industrial automation display applications
Product Documentation
10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio 0
Technical drawing and dimensions
10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio 1
Application examples in industrial and consumer devices
10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio 2
Partner companies and collaborative projects
10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio 3
Manufacturing facility and quality control environment
10.1" Normally Black LCD Module 800x1280 MIPI 380cd/m² 1000:1 Contrast Ratio 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
  • How do you control product quality? Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
  • Do you supply samples? Yes, we provide samples for customer evaluation and functional testing.
  • What is the delivery time? Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
  • What is the minimum order quantity? 1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
  • What if we receive missing or defective items? Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
  • What are your main products? Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
  • What payment methods do you accept? We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
  • What shipping methods do you offer? DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
