YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560
  • name
  • name

YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560

MOQ: 500
Price: $5.5-6.2/pieces(MAR2808）
Standard Packaging: 16*15*6(cm)/36g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBR026GEP-Q1（MAR2808）
Type:
Arduino Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Product Description
YBR026GEP-Q1 2.6-inch Arduino Display LCD Module

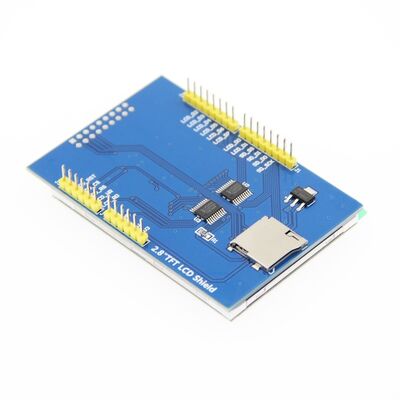

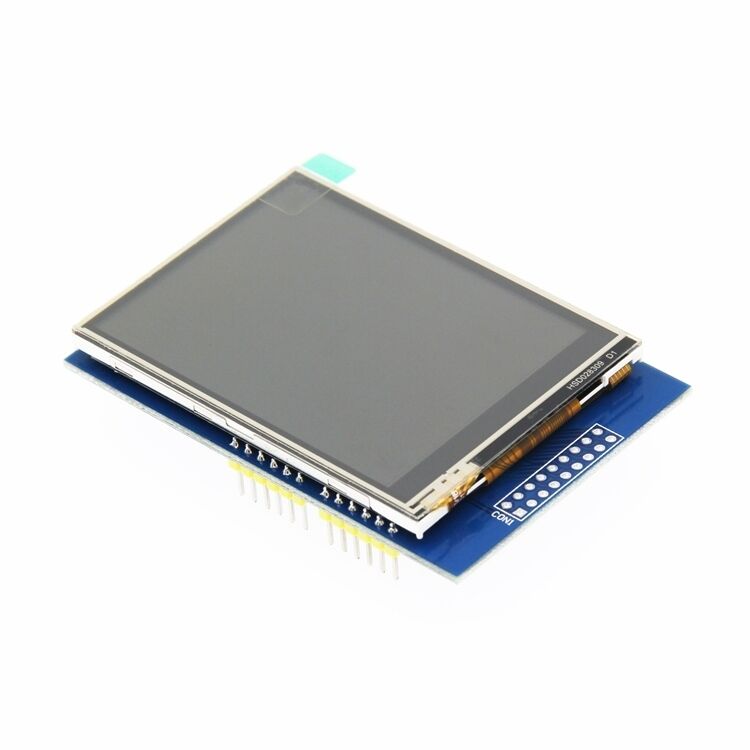

The Arduino UNO module is a 2.8-inch TFT LCD module with 320x240 resolution and 65K color display. It uses 8-bit line parallel port communication, and the driver IC is ILI9341. The module includes an LCD display, 5V~3.3V level conversion circuit, which can be directly plugged into the Arduino UNO and MEGA2560 development boards, and also supports SD card expansion function.

YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 0
Product Features
  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 320X240 resolution, clear display, support for touch function
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support
Technical Specifications
YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 1
Interface Description
YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 2 YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 3
Connection to Arduino
YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 4
Arduino UNO direct insertion connection
YBR028GEP-Q1 2.8-inch Arduino Display LCD Module with 320*240 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560 5
Arduino Mega2560 direct insertion connection
