YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560
  • name
  • name

YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560

MOQ: 500
Price: $12.8-14.5/pieces(MAR3954）
Standard Packaging: 16*15*6(cm)/36g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBR040JGP-Q1（MAR3954）
Type:
Arduino Display
Display Size:
3.95 Inch
Supplier Type:
Factory
Highlight:

3.95-inch Arduino LCD module

,

480x320 resolution LCD display

,

8-bit parallel bus display module

Product Description
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480*320 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560

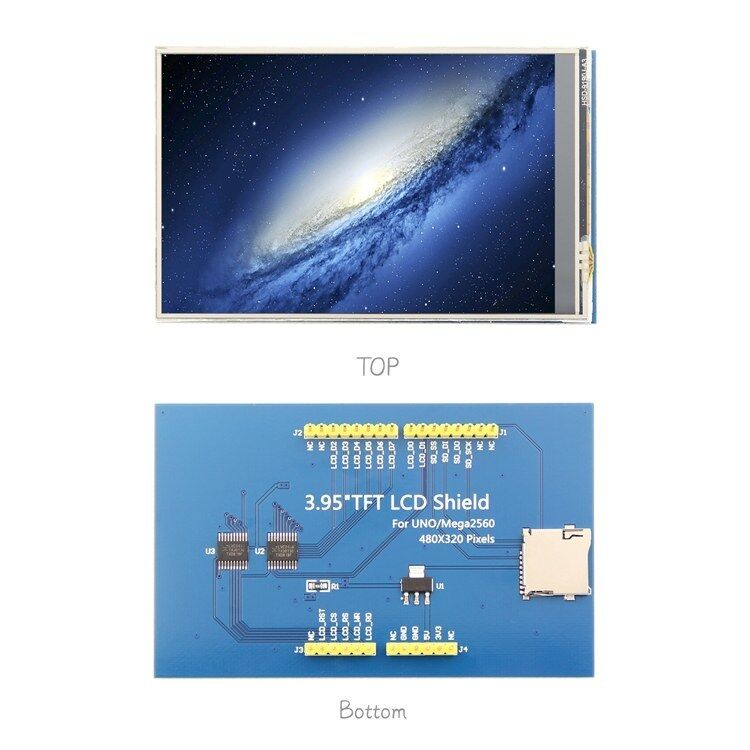

The product is a 3.95-inch TFT LCD module with 480x320 resolution, 16BIT RGB 65K color display, internal drive IC ST7796S, 8-bit parallel port communication. The
module includes an LCD display, Resistive touch screen, SD card slot and PCB backplane and other components, which can be directly plugged into the Arduino UNO
and MEGA2560 development boards, can also be used on C51 and STM32 platforms and also supports SD card expansion function.
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 0
Product Features
  • 3.95-inch color screen, support 16BIT RGB 65K color display, display rich colors
    480x320 resolution for clear display
    8-bit parallel bus transmission for fast transfer speed
    On-board 5V/3.3V level-shifting IC compatible with 5V/3.3V operating voltage
    Support Arduino UNO and MAGE2560 for direct plug-in use
    Support for touch function
    Support SD card function expansion
    Provide Arduino libraries and rich sample programs
    Available on C51 and STM32 platforms with a rich sample program
    Military-grade process standards, long-term stable work
    Provide underlying driver technical support
Technical Specifications
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 1
Interface Description
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 2
 YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 3
Connection to Arduino
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 4


YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560 5
