7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle
  • name
  • name

7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle

MOQ: 100 pcs
Price: $7.99-10.45 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YHJX6-7-L40
Product Description
7 Inch 1024x600 TFT LCD Module LVDS Full Viewing Angle Display Panel No Touch
Product Overview

This 7 inch TFT LCD display module features 1024x600 resolution, LVDS interface and normally black display mode. It supports 16.7M colors, full viewing angle and glare surface treatment. The module provides 350 cd/m² typical luminance and 800:1 typical contrast ratio, making it suitable for industrial equipment, embedded systems and control display applications.

Key Features
  • 7 inch TFT LCD display module
  • 1024x600 resolution for clear image display
  • LVDS interface for stable signal transmission
  • Normally black display mode
  • Full viewing angle performance
  • 16.7M colors for vivid picture quality
  • 350 cd/m² typical brightness
  • 800:1 typical contrast ratio
Product Display
7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle 0
7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle 1

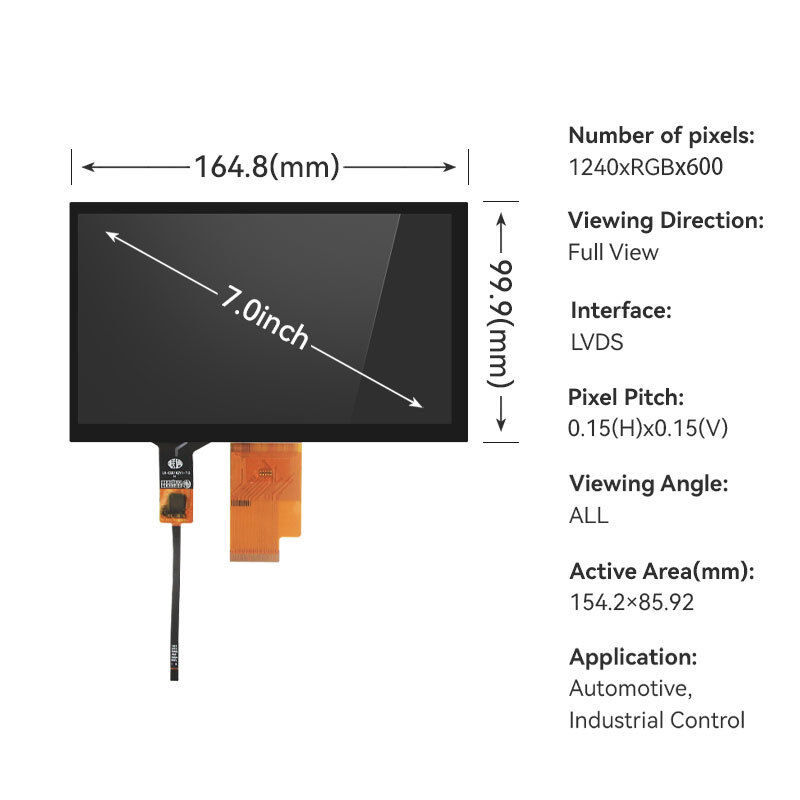

Technical Specifications
Screen Size 7 Inch
Resolution 1024 × 600
Module Size 164.9 × 100.0 × 5.7 mm
Active Area 154.08 × 85.92 mm
Brightness 350 cd/m²
Display Interface LVDS
Viewing Angle Full View
Operating Temperature 0℃ to +50℃
Storage Temperature -20℃ to +60℃
Application Scenarios
  • Industrial control equipment
  • Medical display devices
  • Embedded display systems
  • Home automation control panels
  • Portable testing instruments
  • POS and terminal devices
Company Capabilities
7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle 2
7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle 3
7 Inch 1024x600 Resolution TFT LCD Display Module with LVDS Interface and Full Viewing Angle 4
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
