4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface
  • name

4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface

MOQ: 100 pcs
Price: $3.99-5.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YHJ42-43-R40
Product Description
4.3 Inch 480x272 TFT LCD Module RGB 24 Bit IPS Display 3.3V 550cd/m²
Product Overview

This 4.3 inch TFT LCD display module features 480×272 resolution, parallel RGB 24-bit interface, and 3.3V input voltage. It utilizes TFT transmissive display technology with IPS viewing direction, 550 cd/m² luminance, and compact module dimensions of 105.40 × 67.10 × 2.9 mm. Ideal for compact embedded display projects, industrial control panels, and handheld device applications.

Key Features
  • 4.3 inch compact TFT LCD display module
  • 480×272 resolution for clear small-size display output
  • Parallel RGB 24-bit interface for embedded system integration
  • IPS viewing direction for wider and more stable visibility
  • 550 cd/m² brightness for brighter indoor display applications
  • 3.3V input design for easier hardware matching
  • Slim 2.9 mm module thickness for compact product design
  • Suitable for industrial and handheld display projects

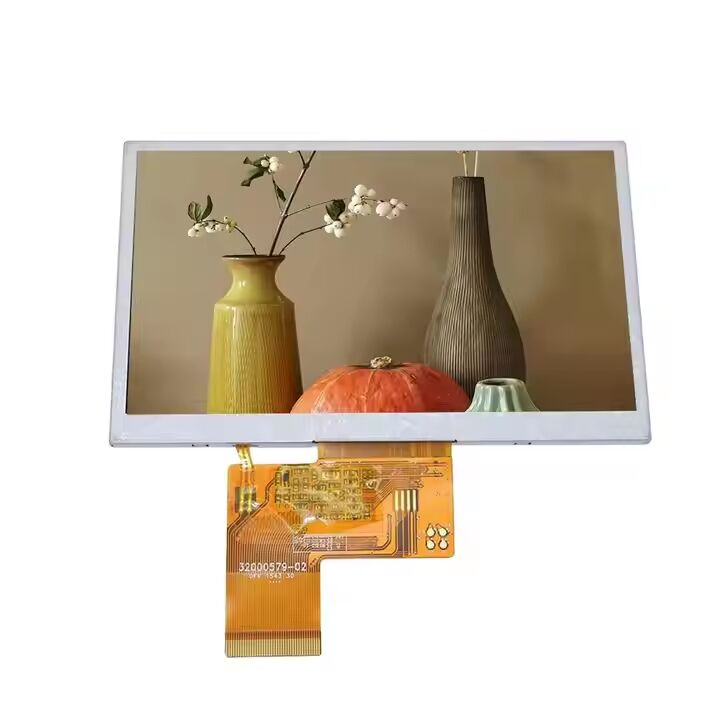

Product Images
4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface 0
4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface 1
Technical Specifications
Screen Size 4.3 Inch
Resolution 480 × 272
Module Size 105.40 × 67.10 × 2.9 mm
Active Area 95.04 × 53.856 mm
Brightness 550 cd/m²
Display Interface Parallel RGB 24-bit
Viewing Angle IPS / All O' Clock
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Application Scenarios
  • Industrial HMI control panels
  • Handheld testing and measuring instruments
  • Portable medical display devices
  • Smart home control terminals
  • Embedded small-size display systems
  • POS and compact operator interface equipment
Company Capabilities
4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface 2
4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface 3
4.3 Inch 480x272 TFT LCD Module with IPS Display 550 cd/m² Brightness and 3.3V RGB Interface 4
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
  • How do you control product quality? Each item undergoes strict testing before shipping to ensure reliability and performance.
  • Do you supply samples? Yes, we provide samples for evaluation.
  • What is the delivery time? Typically 7 working days after payment confirmation.
  • What is the minimum order quantity? 1 piece minimum order quantity.
  • What if we receive missing or defective items? Please contact us immediately, and we will investigate to provide the best solution promptly.
  • What are your main products? Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
  • What payment methods do you accept? We accept T/T (Telegraphic Transfer) payments.
  • What shipping methods do you offer? DHL and China Post shipping services available.
