10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems
  • name
  • name

10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems

MOQ: 100 pcs
Price: $11.75-14.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO1010TVR-H01
Product Description

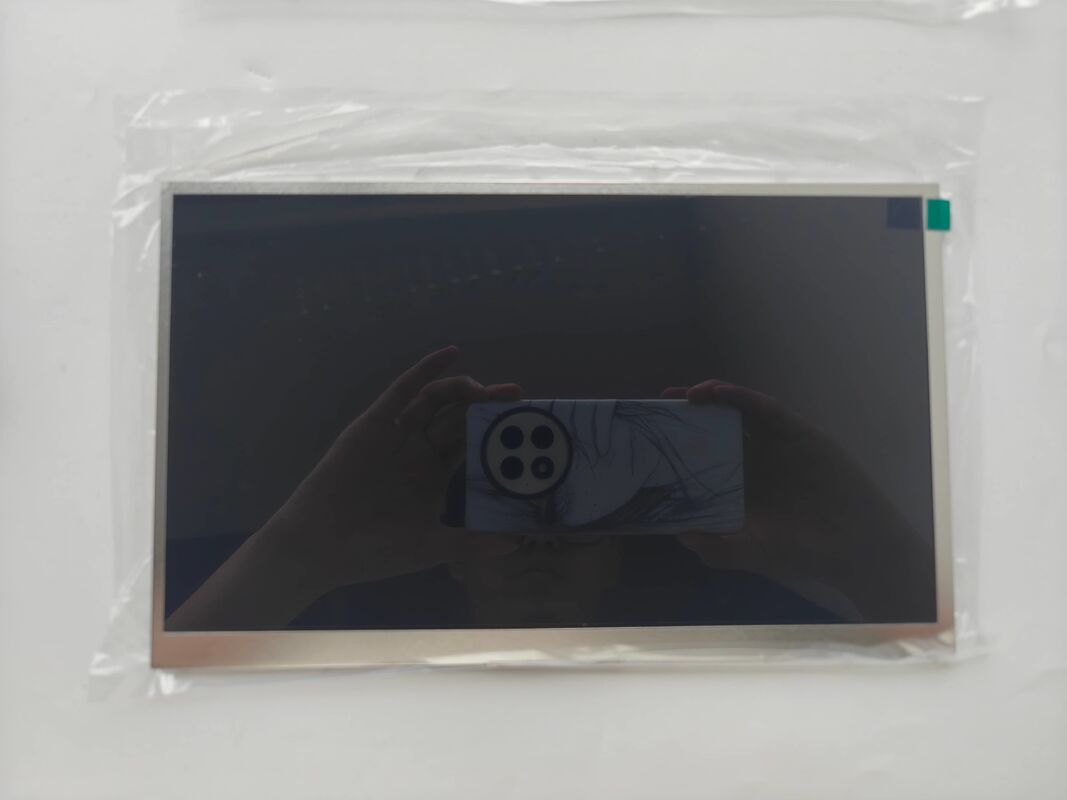

10.1 Inch TFT LCD Display Module 1024x600 TTL Interface Normally Black 300 Nits
Product Overview
This 10.1 inch TFT LCD display module features 1024x600 resolution, TTL interface and normally black display mode. It supports 16.7M colors with 8-bit RGB signal input, anti-glare surface treatment and 300 cd/m² typical luminance. With a slim 2.9 mm module thickness and wide operating temperature range, it is suitable for industrial control systems, embedded display terminals, digital photo frames and AV display applications. Customization is available for brightness, interface, touch panel, FPC design, cover lens and other specifications based on different project requirements.
Key Features
  • 10.1 inch TFT LCD module with 1024x600 WSVGA resolution
  • TTL RGB interface for embedded display controller systems
  • Normally black display mode for better image contrast
  • 300 cd/m² brightness for indoor industrial display use
  • Anti-glare surface treatment for reduced reflection
  • 16.7M color support with 8-bit RGB signal input
  • Slim 2.9 mm module thickness for compact product design
  • Customization support for brightness, touch panel, FPC and interface design
Technical Specifications
Screen Size 10.1 Inch
Resolution 1024 × 600
Module Size 235.0 × 143.0 × 2.9 mm
Active Area 222.72 × 125.28 mm
Brightness 300 cd/m²
Display Interface TTL / RGB
Viewing Angle All View
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems 0
Application Scenarios
  • Industrial HMI control panels with TTL RGB mainboards
  • Digital photo frame and multimedia display products
  • AV display terminals and embedded video devices
  • Smart equipment control panels for indoor applications
  • Medical and testing equipment display interfaces
  • Custom 10.1 inch embedded display projects requiring TTL interface
Company Capabilities
10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems 1
10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems 2
10.1 Inch TFT LCD Display Module with 1024x600 Resolution and TTL Interface for Industrial Control Systems 3
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
