9.3 Inch IPS TFT LCD Module 600x1600 500cd/m² MIPI I2C Interface Capacitive Touch Screen Wide Temperature for Industrial Control Equipment

High-performance 9.3-inch bar-type IPS TFT LCD display assembly with 600×1600 resolution, MIPI I2C interface, 500cd/m² high brightness and -20℃ to 70℃ wide temperature for industrial control automotive smart devices HMI and embedded display systems.

This 9.3-inch a-Si TFT LCD module with cover glass features 600(RGB)×1600 high resolution and transmissive normally black display mode with full viewing angle IPS technology. It supports MIPI and I2C interface with capacitive touch function driven by dedicated touch IC and equipped with white LED backlight. The module adopts 2.5D glass with 5H surface hardness over 85% light transmittance and industrial wide temperature design. With slim outline dimension and high reliability it is widely used in industrial control equipment automotive display smart instruments human machine interface and outdoor embedded applications.YVT0930KVM-X01(9.3-inch LCD Assembly Datasheet).pdf

• 9.3-inch bar-type IPS TFT LCD with 600×1600 high resolution and 16.7M true color display
• Transmissive normally black mode with full viewing angle IPS for excellent visibility in all directions
• RGB vertical stripe pixel arrangement for clear and delicate image performance
• MIPI and I2C dual interface for stable signal transmission and flexible system integration
• 500cd/m² high brightness white LED backlight with 30000 hours long service life
• Industrial grade wide temperature range -20℃ to 70℃ for harsh environment applications
• 2.5D cover glass with 5H surface hardness and over 85% light transmittance
• High contrast ratio 1000-1200 and wide color gamut NTSC 70-75%
• Fast response time 30-35ms for smooth dynamic picture display
• Capacitive touch support with I2C touch control signal interface
• Slim 6.6mm thickness for compact device structure design
• High reliability passed thermal cycling high low temperature and humidity tests
• RoHS compliant environmental protection and safety standard
• Perfect for long strip display and vertical screen application scenarios

• Industrial control equipment and human machine interface HMI
• Automotive display and vehicle mounted information system
• Smart instruments and testing measuring equipment
• Industrial automation and intelligent control terminal
• Outdoor electronic equipment and high brightness display device
• Embedded system and bar type vertical display module
• Smart home and commercial display advertising equipment
• Medical device and security monitoring display system

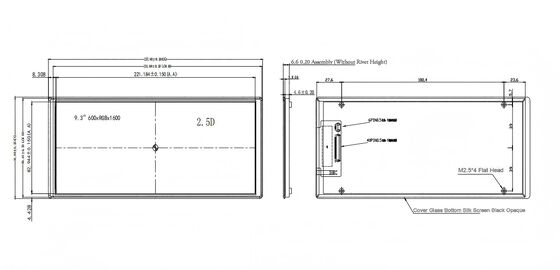

Technical drawing and dimensions

Partner companies and collaborative projects

Manufacturing facility and quality control environment

Shipping methods and delivery information

Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd. established in 2013. The company specializes in custom services R&D sales and after-sales services in the optoelectronic display industry.

Products include Liquid Crystal Display (LCD) modules (LCM) touch modules LCD panels FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control medical equipment handheld devices instruments and meters automotive electronics digital wearables household appliances and financial services.

Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling vibration test and display performance validation.

Yes we provide samples for customer evaluation and functional testing.

Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.

1 piece minimum order quantity for sample orders with flexible MOQ for bulk production.

Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.

Comprehensive range including LCD modules LCM touch modules LCD panels FPC boards and optoelectronic materials for industrial medical automotive and consumer electronics applications.

We accept T/T (Telegraphic Transfer) payments Western Union and PayPal for small orders.

DHL FedEx UPS and China Post shipping services available. Express delivery is available for urgent orders.
