5.0"
Display Size
|
800 × 480
Resolution
|
40 Pin
TTL RGB Interface
|
1000 Nits
Typical Brightness
|

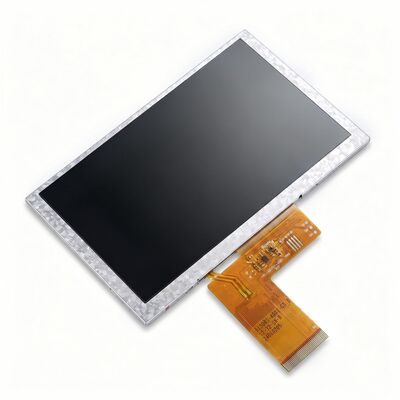

This 5.0-inch TFT LCD module features an 800 × 480 resolution, 40-pin TTL 24-bit RGB interface and 1000 cd/m² typical brightness. The normally black transmissive display provides wide viewing characteristics for embedded and equipment display applications.
| |
PRODUCT INFORMATION
Compact 5.0" TFT LCD ModuleThe module measures approximately 120.7 × 75.8 × 2.9 mm, with a 108.0 × 64.8 mm active display area.
|
|
1000 Nits High Brightness
Typical luminance of 1000 cd/m² for high-brightness embedded display applications.
|
40-Pin TTL RGB Interface
24-bit RGB interface with RGB data, DCLK, HSYNC, VSYNC, DE and display control signals.
|
|
Wide Viewing Characteristics
Typical viewing angle reaches 80° in all four directions.
|
24-LED Backlight
24 white LEDs with 18V typical backlight voltage and 80mA typical current.
|
| |
MODULE STRUCTURE

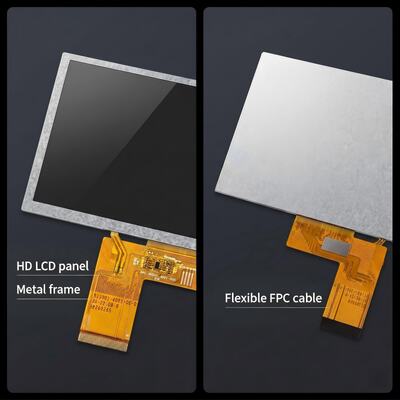

Compact RGB FPC DesignThe module combines the TFT LCD panel, driver IC, FPC and high-brightness LED backlight in a compact structure. The 40-pin interface provides RGB display data, synchronization, clock, power and control connections for compatible embedded mainboards. |
|
DISPLAY PERFORMANCE
1000 Nits High-Brightness TFT DisplayHigh luminance, 1000:1 typical contrast ratio and wide viewing characteristics provide clear display performance for embedded equipment integration.
|
|
| Parameter | Specification |
| Model | YVO0500NJR-S1-10 |
| Display Size | 5.0 inch |
| LCD Type | a-Si TFT |
| Display Mode | Normally Black / Transmissive |
| Resolution | 800 × 480 |
| Interface | TTL 24-bit RGB |
| Pin Count | 40 Pin |
| Brightness | 1000 cd/m² Typ. |
| Contrast Ratio | 1000:1 Typ. |
| Viewing Direction | Free |
| Viewing Angle | 80° Typ. in Four Directions |
| Display Colors | 16.7M |
| Color Gamut | 60% Typ. |
| Logic Supply | 3.3V Typ. |
| Backlight | 24 White LEDs |
| Backlight Voltage | 18V Typ. |
| Backlight Current | 80mA Typ. |
| LED Lifetime | 30,000 Hours Min. |
| Active Area | 108.0 × 64.8 mm |
| Module Size | 120.7 × 75.8 × 2.9 mm |
| Touch | Without CTP |
Suitable for display integration in HMI, industrial control and embedded electronic equipment.
| HMI Equipment | Industrial Control | Outdoor Equipment | Embedded Device |
LCD compatibility depends on TTL RGB pin assignment, mechanical dimensions, power requirements and mainboard configuration.
Send us your interface, mechanical requirements and project quantity for technical evaluation.
