10.1 Inch TFT LCD Display Module 1024×600 RGB 24‑bit Interface ‑20~+70℃ Wide Temperature Industrial LCD Screen RoHS Compliant

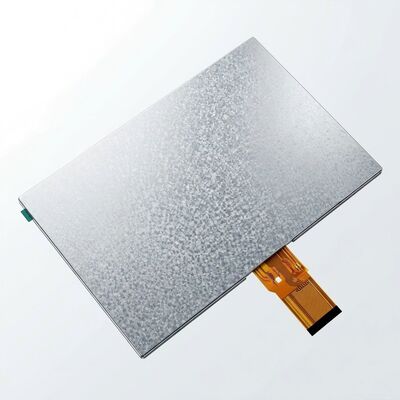

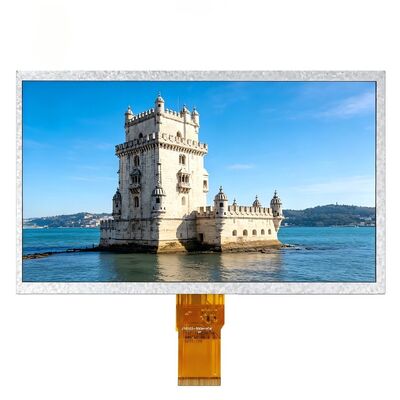

YVO1010PKR‑S1 10.1" TFT‑LCD Display Module

1024×600 Resolution | RGB 24‑bit Interface | Wide Temperature Industrial LCD Screen

Product Brief Introduction

This is YVO1010PKR‑S1, a 10.1‑inch Normally Black transmissive TFT‑LCD module, equipped with 42‑LED white backlight. It delivers 1024×600 pixels resolution with 16.7M rich display colors, adopting RGB 24‑bit data transfer interface.

Support full viewing direction, wide operating temperature from ‑20℃ ~ +70℃, storage temperature ‑30℃ ~ +80℃, fully comply with RoHS standard. Suitable for various industrial embedded system projects.

Main General Specifications

Optical Characteristics Reference Diagram

Optical Characteristics

Electrical & Backlight Parameters

• Digital Supply Voltage(DVDD): 3.0‑3.6V, typical 3.3V
• Analog Supply Voltage(AVDD): 9.5‑9.7V, typical 9.6V
• Backlight LED quantity: 42 pcs white LED
• Backlight typical current:140mA, recommended constant‑current driving
• Support DE/SYNC mode select, scan direction configurable

module size

Application Fields

YVO1010PKR‑S1 10.1‑inch industrial TFT LCD module is widely used for industrial HMI control panels, embedded equipment, medical auxiliary display, transportation terminals, smart cabinet display, testing instruments, POS terminals, vending machine display, kiosk and other industrial display solutions.

Contact Us

Welcome to inquiry for YVO1010PKR‑S1. We can provide full datasheet, sample testing, bulk quotation and custom display service.

Please send your requirements via message, we will reply you within working hours.
