Product Overview

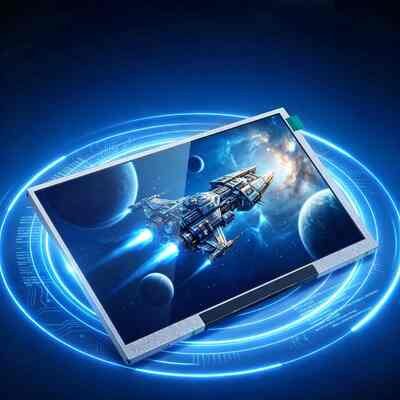

YVT0700PKM‑S1 is a 7.0‑inch a‑Si TFT transmissive normally‑black LCD module in landscape format. Pixel adopts RGB vertical‑stripe arrangement, supporting 16.7M (8‑bit) display colors.

This module is equipped with MIPI high‑speed differential interface, with hardware reset and standby control pins for easy system integration. Designed for industrial‑automotive wide‑temperature scenarios, it has passed complete reliability verification, suitable for vehicle auxiliary display and multiple embedded system projects.

Core General Specifications

Optical Features

• High brightness for complex lighting environments
• High contrast ratio for clear image display
• All‑direction wide viewing angle performance
• Stable brightness uniformity

Electrical Features

• MIPI high‑speed differential signal input
• Hardware reset and standby control pins
• Comply with standard MIPI timing requirements
• Backlight suggests constant‑current driving

Reliability Performance

This module has undergone a complete set of industrial reliability tests, including high‑low temperature operation and storage, temperature cycle, damp‑heat, vibration, mechanical shock and ESD test. ESD capability: air discharge ±8KV, contact discharge ±4KV, which can adapt to complex vehicle and industrial working environments.

Quality Inspection Standard

Visual and functional inspection follows MIL‑STD‑105E sampling standard. Strict AQL inspection will be performed before shipment to ensure stable quality for mass‑production orders.

Application Scope

• Car‑mounted auxiliary display and vehicle HMI terminal
• Industrial control panel and embedded control equipment
• Portable testing and measuring instruments
• Other automotive and industrial display solutions
