4.3 Inch IPS HDMI LCD Display with 800x480 Resolution and 5 Point Touch Screen Module

4.3 Inch IPS HDMI LCD Display with 800x480 Resolution and 5 Point Touch Screen Module

4.3 Inch IPS HDMI LCD Display with 800x480 Resolution and 5 Point Touch Screen Module

Brand Name: YZY
Model Number: YBC043NJH‑Q1
MOQ: 500pieces
Price: USD24-30
Payment Terms: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guang dong,China
Certification:
RoHS
Highlight:

4.3 Inch HDMI LCD Display

,

800x480 Resolution IPS Display

,

5 Point Touch Screen Module

Product Description
4.3 Inch IPS HDMI Display C 800x480 5 Point Touch Screen Module CE RoHS for Embedded HMI
SKU: YBC043NJH‑Q1
This 4.3-inch IPS HDMI touch display features native 800*480 resolution and supports HDMI input up to 1080P. Includes USB driver-free capacitive touch, built-in OSD adjustment, HDMI audio output with 3.5mm earphone jack. CE & RoHS certified. Perfect for Raspberry Pi, single-board computer, PC and game-console projects.
4.3-inch HDMI Display-C front view showing the screen and bezel
Product Specifications
Item Parameter
SKU / Model YBC043NJH‑Q1
Screen Size 4.3 inch
Native Resolution 800 * 480
Max HDMI Input 1920 * 1080 (1080P)
Touch Function 5-point Capacitive Touch, USB Driver-free
Audio Output HDMI Audio + 3.5mm Earphone Jack
Active Area 95.04 * 53.86 mm
Module Dimension 106.00 * 85.31 mm
Package Weight 219 g
Certification CE, RoHS

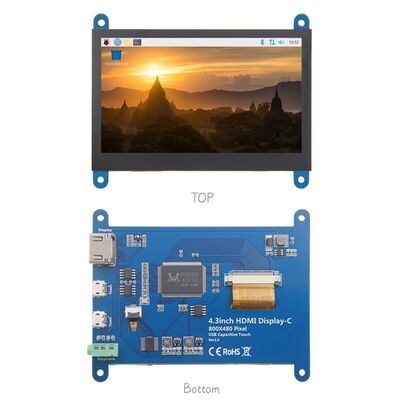

Top and bottom overview of the display module
Hardware Interfaces

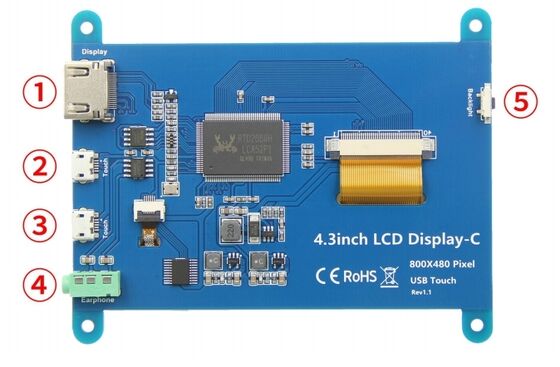

Hardware interface marking diagram showing all connection ports
  • HDMI Display: HDMI video input port for host signal source
  • Touch USB: Dual Micro-USB ports for touch output & power supply, use either port
  • Earphone: 3.5mm audio-output jack for audio playback
  • Backlight Button: Short press adjusts brightness in 10% steps; long press 3 seconds to turn off backlight
Main Features
Built-in OSD menu: adjust contrast, brightness and saturation
Driver-free touch: 5-point touch for Win7/8/10; single-touch for Raspberry Pi OS
Supports screen rotation: 0° / 90° / 180° / 270° under Raspberry Pi
HDMI synchronous audio output with earphone interface
Compact mechanical size, easy to build into embedded enclosures
Compatibility List
  • Single-board Computers: Raspberry Pi, BB Black, Banana Pi (Raspbian, Ubuntu, Kodi, Win10-IoT)
  • PC System: Windows7 / Windows8 / Windows10 (XP only supports single-point touch)
  • Game Consoles: Microsoft Xbox360, SONY PS4, Nintendo Switch, TV Box
Application Scenarios
  • Embedded HMI control panel
  • Prototype development
  • Maker DIY projects
  • Laboratory teaching equipment
  • Portable secondary monitor
  • Portable gaming display
  • Data-monitoring terminal
