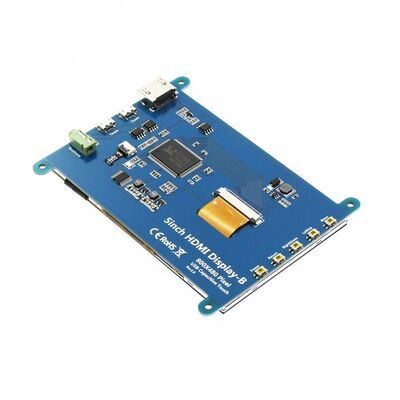

5 Inch HDMI Capacitive Touch LCD Module 800×480 5‑Point Touch Support 1080P Input.

5 Inch HDMI Capacitive Touch LCD Module 800×480 5‑Point Touch Support 1080P Input.

5 Inch HDMI Capacitive Touch LCD Module 800×480 5‑Point Touch Support 1080P Input.

Brand Name: YZY
Model Number: YBC050NJH‑Q1
MOQ: 500pieces
Price: USD26-32
Payment Terms: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guang dong,China
Certification:
RoHS
Product Description

5‑inch HDMI Display‑B

SKU: YBC050NJH‑Q1 | 800×480 5‑Point Capacitive Touch LCD Module

This 5‑inch HDMI touch LCD module features native 800×480 resolution and supports HDMI input up to 1080P. Equipped with USB driver‑free 5‑point capacitive touch, multi‑physical function keys, built‑in OSD menu, HDMI audio output and 3.5mm earphone jack. CE & RoHS certified, widely applied for embedded HMI, PC, TV box and game‑console projects.

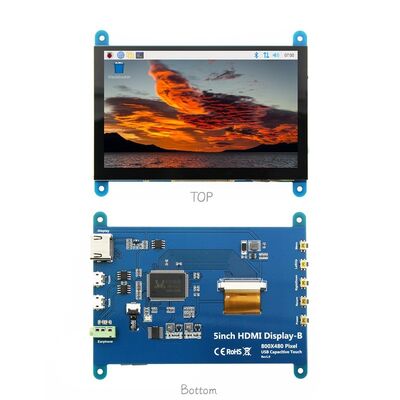

5‑inch HDMI Display‑B top and bottom view

📋 Product Specifications

ItemParameter
SKU / ModelYBC050NJH‑Q1
Screen Size5.0 inch
Native Resolution800 × 480
Max HDMI Input1920 × 1080 (1080P)
Touch Function5‑point Capacitive Touch, USB Driver‑free
Audio OutputHDMI Audio + 3.5mm Earphone Jack
Active Display Area108.00 × 64.80 mm
Module Overall Dimension121.11 × 95.24 mm
Package Weight259 g
CertificationCE, RoHS
Product dimension drawing

🔌 Hardware Interfaces & Buttons

Hardware interface marking diagram
  • ① Earphone: 3.5mm audio‑output jack for audio playback.
  • ② ③ Touch USB: Dual Micro‑USB ports for touch output & power supply, use either port.
  • ④ Display HDMI: HDMI video input port for host signal source.
  • ⑤ Power: Control backlight ON/OFF for power‑saving.
  • ⑥ Return: Return key, valid under OSD menu.
  • ⑦⑧ Direction Keys: Right/Down & Left/Up for OSD setting and backlight shortcut.
  • ⑨ Menu: Open OSD menu & confirm selection.

✨ Main Features

  • Built‑in OSD menu: adjust contrast, brightness and saturation via physical keys.
  • Driver‑free capacitive touch: 5‑point touch for Win7/8/10; single‑point touch for older Windows systems.
  • Supports screen rotation: 0° / 90° / 180° / 270°.
  • HDMI synchronous audio output with independent 3.5‑millimeter earphone jack.
  • Multiple physical shortcut keys for backlight control and OSD quick‑operation.
  • Compact mechanical outline, convenient for enclosure integration.

🖥️ Compatibility List

PC System: Windows7 / Windows8 / Windows10 (XP only supports single‑point touch)

Game & Media Devices: Microsoft Xbox360, SONY PS4, Nintendo Switch, TV Box, Mini PC Host

Usage Tip: Connect HDMI for video signal and one Micro‑USB for touch & power supply.


🎯 Application Scenarios

Embedded HMI control panel, equipment prototype development, maker DIY projects, laboratory teaching instruments, portable secondary monitor, portable gaming display, industrial data‑monitoring terminal.
