| Brand Name: | YZY |
| Model Number: | YBC070NJH-Q1 |
| MOQ: | 500pieces |
| Price: | USD25-31 |
| Payment Terms: | T/T |

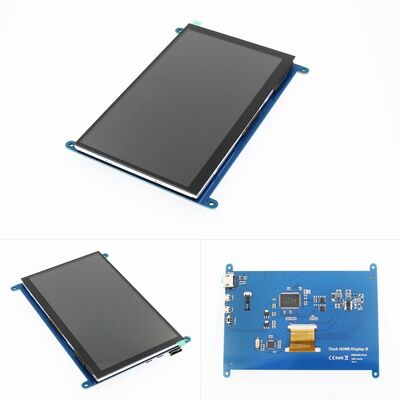

Product Overview: This is a 7‑inch HDMI capacitive touch screen module with hardware resolution 800×480, supports up to 1920×1080 HDMI input. It supports 5‑point capacitive touch, driver‑free for most operating systems. Independent backlight switch helps save power. CE & RoHS certified. Widely used for single‑board computer projects, embedded systems and DIY maker solutions.
| Item | Specification |
| Screen Size | 7.0 Inch |
| Hardware Resolution | 800 × 480 dots |
| Max HDMI Input Resolution | 1920 × 1080 |
| Touch Function | 5‑point Capacitive Touch, driver‑free |
| Touch & Power Port | Dual Micro‑USB port, use only one for touch and power |
| Video Interface | HDMI interface |
| Backlight Control | Independent backlight on/off switch for power saving |

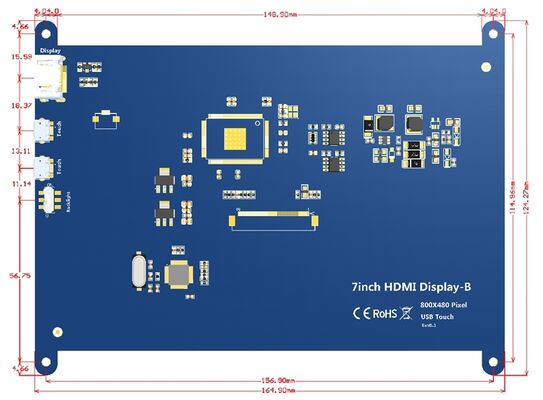

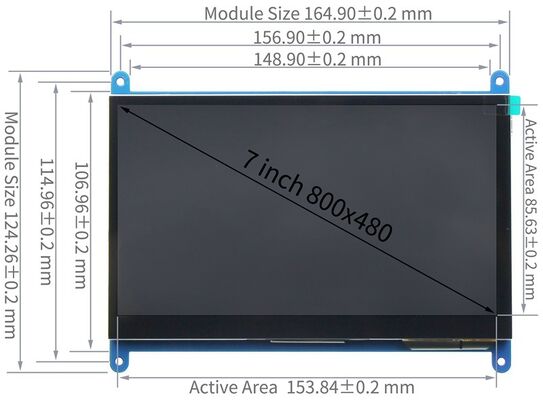

| Module Dimension | 164.9 * 124.27 mm |
| Weight | 380 g |
| Certification | CE, RoHS |

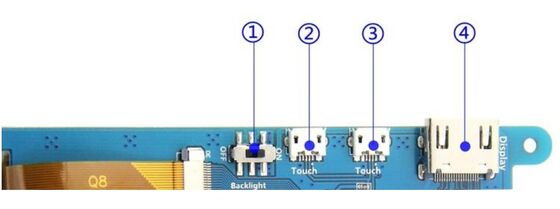

Equipped with HDMI video interface and dual Micro‑USB ports for power and touch signal. Independent backlight power switch for power‑saving control. Only one USB port is required for touch and power supply.
Ideal for: Maker DIY projects, embedded display terminal, single‑board computer supporting screen, maker education equipment, small auxiliary monitor.
Welcome to send inquiry! If you want to know about unit price, MOQ, delivery time or custom requirements, please feel free to contact us. We will reply you promptly with detailed offer and technical support.
