| Brand Name: | YZY |
| Model Number: | YBC070PKH-Q4 |
| MOQ: | 500 pcs |
| Price: | $34–40 / Piece |
| Payment Terms: | T/T |

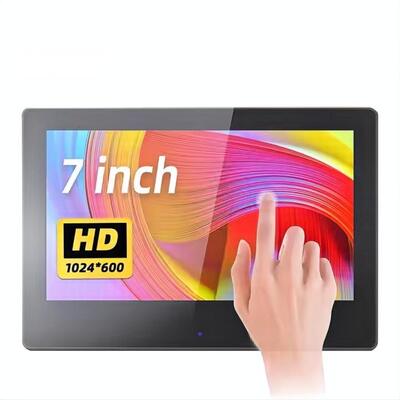

Product Overview: This 7‑inch IPS touch screen module features 1024×600 high resolution with 170‑degree full viewing angle. Built‑in stereo dual speakers and front hidden touch keys support brightness and volume adjustment. 5‑point capacitive touch works plug‑and‑play without drivers. Compatible with Raspberry Pi, Jetson Nano, game consoles and PC systems. Equipped with breathing indicator light for working status reminder.
| Item | Specification |
| Screen Size | 7.0 Inch |
| Panel Type | IPS Full Viewing Angle |
| Hardware Resolution | 1024 × 600 pixels |
| Typical Brightness | 280 cd/m² |
| Viewing Angle | 170 Degree |

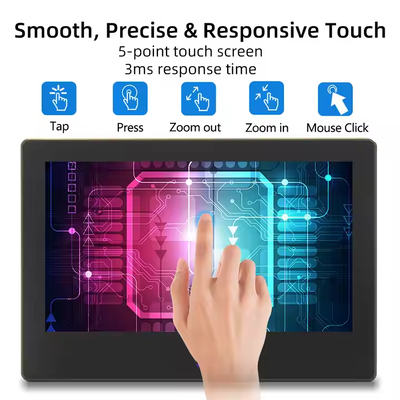

| Touch Function | 5‑point Capacitive Touch, driver‑free |
| Built‑in Audio | Stereo Dual Speakers |
| Interfaces | HDMI, Micro‑USB Touch, Micro‑USB Power, HP Audio Output |
| Special Feature | Front touch keys, breathing status indicator light |

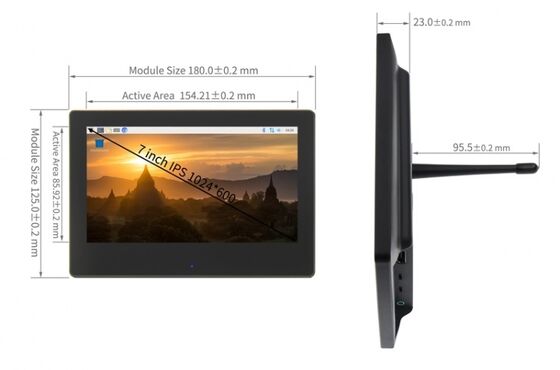

| Module Dimension | 180.05 * 125.60 * 23.10 mm |
| Weight(With package) | 537 g |
| Working Temperature | -30℃ ~ 80℃ |

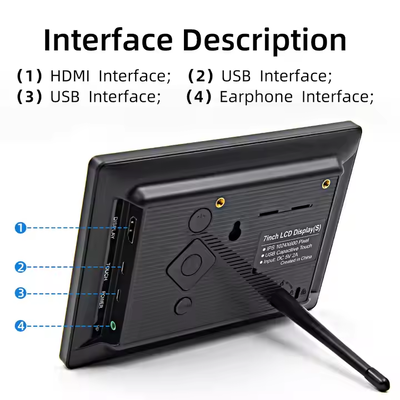

HDMI port for high‑definition video input. Two Micro‑USB ports for touch signal and power supply. HP jack for headphone audio output. Back panel multi‑function keys support power on/off, menu switch, brightness and volume adjustment. Front hidden touch sensor can quickly adjust backlight brightness.
Ideal for: Maker DIY projects, embedded auxiliary display, single‑board computer monitor, portable game screen, industrial auxiliary control terminal.
Feel free to send your inquiry! If you need information about sample price, MOQ, delivery time, supporting documents or technical guidance, please do not hesitate to contact us. We will provide you with detailed offer and professional technical support promptly.
