| Brand Name: | YZY |
| Model Number: | YVO0800TVL-H01 |
| MOQ: | 500 pcs |
| Price: | $17.5–21 / Piece |
| Payment Terms: | T/T |
TFT LCD LCM DISPLAY MODULE
LVDS Interface · Normally White · Wide Temperature

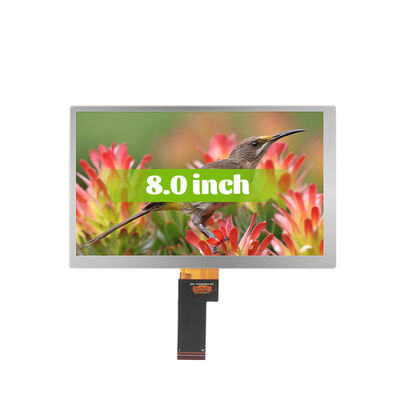

8.0‑inch transmissive a‑Si TFT active matrix display module for industrial embedded equipment.
YVO0800TVL‑H01 is an 8.0‑inch transmissive a‑Si TFT active matrix LCM. It adopts Normally White display mode, LVDS digital interface, supports 6‑bit / 8‑bit data input. Typical brightness reaches 450cd/m², contrast ratio 700. Operating temperature range ‑20℃ ~ +70℃, suitable for various industrial embedded display projects. Module dimension is 192.80 × 116.90 × 6.40 mm, typical weight 196g.
Product Dimension Drawing
Product Rear View Photograph
Active area:176.64(W) ×99.36(H) mm, surface treatment: Plain, color arrangement: RGB‑stripe, viewing direction 6:00 O’Clock.
| Model Number | YVO0800TVL‑H01 |
| Screen Size | 8.0 Inch(Diagonal) |
| Resolution | 1024 × RGB × 600 |
| Display Mode | Normally White, Transmissive |
| Interface | LVDS Digital Interface |
Product Parameter Diagram
| Item | Specification |
|---|---|
| Dot Pitch | 0.1725(W) × 0.1656(H) mm |
| Active Area | 176.64(W) × 99.36(H) mm |
| Module Dimension | 192.80 × 116.90 × 6.40 mm |
| Typical Weight | 196g |
| Brightness(Typ.) | 450 cd/m² |
| Contrast Ratio(Typ.) | 700 |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |
| Backlight Typical Power | 2.574W |
| LED Backlight Lifetime | 20000 Hours |
Application Scene For Industrial Equipment
| Industrial control terminals | Embedded industrial display equipment |
| Man‑machine HMI panels | Other space‑limited display solutions |
This module passes multiple industrial reliability tests and works stably in complex environments.
We are professional supplier for industrial TFT‑LCD modules. We supply standard modules and offer customization service.
Please contact us for datasheet, sample price and technical support.
