| Brand Name: | YZY |
| Model Number: | YVO1010TVL-H01 |
| MOQ: | 500 pcs |
| Price: | $12.5–15 / Piece |
| Payment Terms: | T/T |
1024RGB600 Resolution | LVDS Interface | Normally Black | Hard Coating | Industrial Grade Display

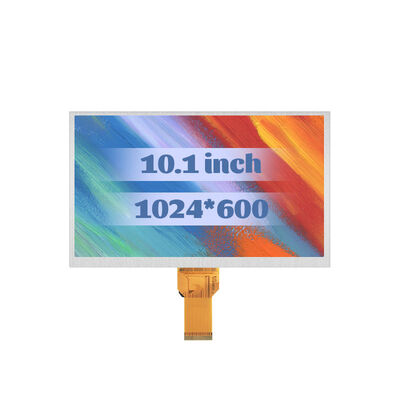

Product Main View
YVO1010TVL‑H01 is a 10.1‑inch a‑Si IPS TFT LCD display module with WSVGA 1024RGB600 resolution. Adopts Normally‑Black display mode and hard‑coating surface treatment for scratch‑resistance. Equipped with LVDS 40‑pin FPC interface, supports 6‑bit / 8‑bit data input optional. Typical brightness reaches 360 cd/m² and contrast ratio up to 800. It features free full viewing angle and wide operating temperature range ‑20℃ ~ +70℃, perfectly designed for industrial control, HMI and embedded equipment solutions.
Model No.
YVO1010TVL‑H01
Screen Size
10.1 Inch
Resolution
1024 × RGB × 600
Panel Type
IPS TFT, Normally Black
Interface
LVDS 40‑pin FPC
Brightness(Typ.)
360 cd/m²
Contrast Ratio(Typ.)
800
Operating Temp.
‑20℃ ~ +70℃
Product Side View Photograph
| Item | Specification |
|---|---|
| Display Type | 10.1‑inch a‑Si IPS TFT LCD |
| Resolution | 1024 × RGB × 600 |
| Display Mode | Normally Black |
| Interface | LVDS 40‑pin FPC (0.5mm Pitch) |
| Data Input | 6‑bit / 8‑bit Selectable |
| Brightness | 360 cd/m² (Typ.) |
| Contrast Ratio | 800 (Typ.) |
| Viewing Angle | Free full viewing angle |
| Surface Treatment | Hard Coating |
| Active Area | 222.72(W) × 125.28(H) mm |
| Module Dimension | 235.0 × 143.0 × 5.1 mm |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |
| Backlight Type | Edge‑lighting White LED |
| LED Backlight Lifetime | 10000 Hours |
Please send inquiry for full datasheet, sample price, lead‑time and customization service.
We provide professional display solutions for your projects.
