7 Inch 1024x600 IPS LCD Monitor with HDMI VGA AV Input

Name: 7 Inch 1024x600 IPS LCD Monitor with HDMI VGA AV Input
Brand: Shenzhen YZY Technology Co., Ltd
SKU: YC0700PKD-HA1
Price: Negotiable USD
Availability: InStock

Brand Name:	YZY
Model Number:	YC0700PKD-HA1
MOQ:	500 pcs
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS

Highlight:

7 Inch HDMI LCD Monitor

1024x600 IPS LCD Monitor

AV VGA Input LCD Monitor

Product Description

YZY DISPLAY / SMALL LCD MONITOR

COMPACT VIDEO DISPLAY

7 Inch TFT
LCD Monitor

HDMI / VGA / AV Inputs

A complete 7-inch display unit with ABS housing, front control buttons and a desktop stand. Multiple panel configurations are available.

7 Inch TFT LCD ABS Housing Desktop Stand

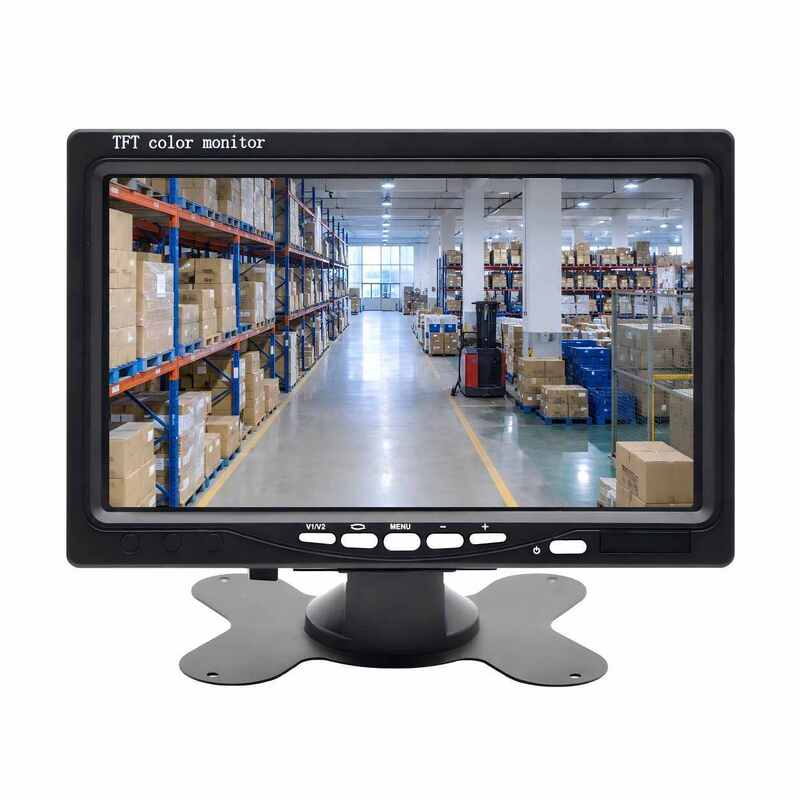

FRONT VIEW / ACTUAL PRODUCT

1024 × 600

IPS panel option

3 Inputs

HDMI / VGA / AV

4 Options

IPS / TN / EWV panels

01 / VIDEO CONNECTION

Connect to Multiple Video Sources

HDMI, VGA and composite AV inputs support connection to compatible video source devices.

HDMI

Digital video input

VGA

Analog computer video input

AV / CVBS

Composite video input

SIDE CONNECTOR VIEW

02 / HOUSING & STAND

Ready-to-Use Monitor Structure

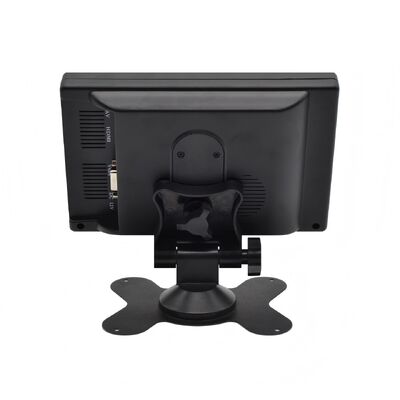

REAR HOUSING / STAND ASSEMBLY

Finished Display Unit

The monitor integrates a TFT LCD, video input electronics, ABS enclosure, rear ventilation openings and front control buttons.

✓ ABS plastic housing

✓ Desktop stand included

✓ Front control buttons

✓ Power supply included

03 / PANEL SELECTION

Choose the LCD Configuration

Four display configurations are listed in the product information. Confirm the required version when requesting a quotation.

Version	Resolution	Panel Type
A	1024 × 600	IPS
B	1024 × 600	TN
C	800 × 480	EWV
D	800 × 480	TN

Optional capacitive touch configuration is listed. Touch interface: Not specified. Please confirm availability and configuration before ordering.

04 / TECHNICAL DATA

Technical Specifications

Parameter	Specification
Display Size	7 inch
LCD Technology	TFT LCD
Resolution Options	1024 × 600 / 800 × 480
Panel Type Options	IPS / TN / EWV
Brightness	250 cd/m² (listed value)
Contrast Ratio	500:1
Display Colors	16.7M
Refresh Frequency	60Hz
Response Time	25ms (Typ., Tr+Tf)
Video Input	HDMI / VGA / AV (CVBS)
Housing	ABS Plastic
Touch Option	Optional Capacitive Touch
Touch Interface	Not specified
Included Accessories	Monitor / Power Supply / Stand

The listed figures may vary by LCD configuration. Confirm final specifications before ordering.

05 / DIMENSIONS & CONTROLS

Dimensions and Front Controls

On-Panel Controls

Video Source Switch
Image Flip
Menu
Decrease / Increase
Power

06 / APPLICATIONS

Where It Fits

Video Monitoring

External video display for compatible monitoring equipment.

Computer External Display

Video output display for computers using HDMI or VGA.

Equipment Display

Small external monitor for compatible equipment video output.

AV Signal Testing

Display checks using compatible HDMI, VGA or CVBS signals.

YZY DISPLAY

LCD DISPLAY SOLUTIONS

Shenzhen YZY Technology Co., Ltd.

Please specify your LCD configuration, touch requirements and order quantity when inquiring.
