Small LCD Monitor
Created with Pixso.

8 Inch 1024x768 TFT LCD Monitor with BNC AV VGA Video Inputs

8 Inch 1024x768 TFT LCD Monitor with BNC AV VGA Video Inputs

8 Inch 1024x768 TFT LCD Monitor with BNC AV VGA Video Inputs

Brand Name: YZY
Model Number: YC0801PMD-HA1
MOQ: 500 pcs
Price: Negotiable
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Description

YZY DISPLAY / SMALL LCD MONITOR
4:3 VIDEO DISPLAY
8 Inch TFT
LCD Monitor
BNC / AV / VGA Signal Options

Compact 8-inch LCD monitor featuring a 4:3 display format, ABS housing, built-in speaker and multiple analog video connections.
8 Inch / 4:3 BNC + AV Built-in Speaker

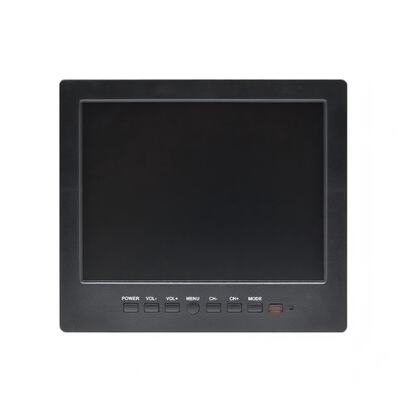

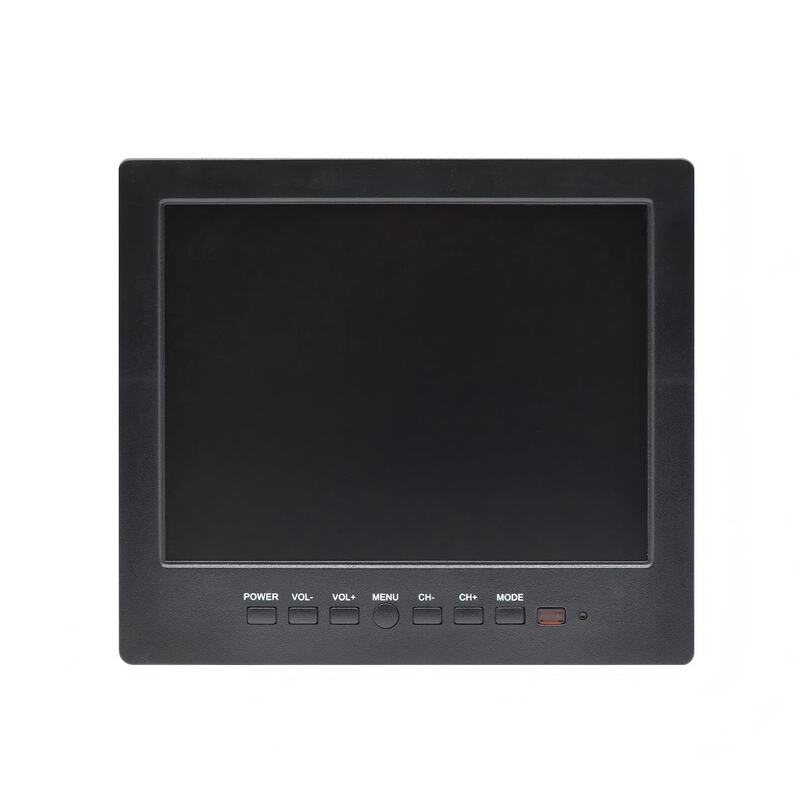

8 inch TFT LCD monitor front view
FRONT VIEW / PRODUCT PHOTO
4:3
Display Format
BNC / AV
Video Connections
2 Panels
IPS / TN-EWV
01 / VIDEO & AUDIO CONNECTIONS
Multiple Signal Connections
Video connections include BNC, RCA video/audio and a multi-pin port marked VGA / VIDEO / YUV. A headphone output and DC power input are also provided.
BNC Video
Coaxial video connection
RCA Video / Audio
Yellow video and red/white audio jacks
Multi-pin Video Port
VGA / VIDEO / YUV signals through a round multi-pin connector
8 inch monitor BNC RCA and multi-pin connector layout
SIDE CONNECTIONS / PRODUCT PHOTO
02 / PRODUCT STRUCTURE
ABS Housing & Built-in Audio

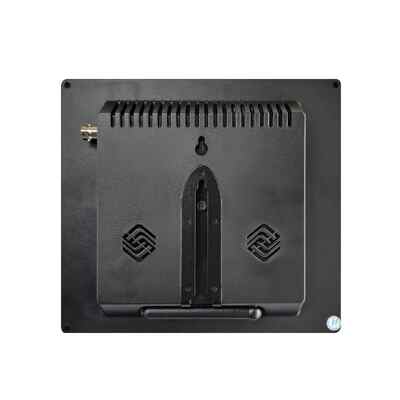

Rear housing of 8 inch TFT LCD monitor
REAR VIEW / PRODUCT PHOTO
Compact Enclosed Design
Textured matte ABS enclosure with rear ventilation features. The monitor includes a built-in speaker and multilingual on-screen menu controls.
Built-in Speaker
Volume and Audio Adjustments
Multilingual OSD Menu
Optional Butterfly Stand
03 / LCD PANEL OPTIONS
LCD Panel Configurations
IPS and TN-EWV panel configurations are available for different display requirements.
Option LCD Panel Type
A IPS
B TN-EWV
04 / TECHNICAL DATA
Technical Specifications
Parameter Specification
Screen Size 8 inch
Aspect Ratio 4:3
Display Technology TFT LCD
Resolution 1024 × 768
LCD Panel Options IPS / TN-EWV
Active Area 162 × 121.5 mm
Brightness 250 cd/m²
Contrast Ratio 500:1
Display Colors 16.7M
Refresh Frequency 60Hz
Response Time 20ms (Typ., Tr+Td)
Video Connections BNC / RCA AV / Multi-pin VGA-VIDEO-YUV
Built-in Speaker Yes
OSD Menu Multilingual
Housing Material Textured Matte ABS Plastic
Standard Package Monitor / Power Supply
Optional Accessories VGA Cable / Butterfly Stand
05 / DIMENSIONS & CONTROLS
Dimensions & Front Keys
8 inch monitor size diagram and front controls
DIMENSIONS / PRODUCT PHOTO
Front Panel Details
Front Outline: 195 × 175 mm
Active Area: 162 × 121.5 mm
Power / VOL– / VOL+
Menu / CH– / CH+ / Mode
06 / APPLICATIONS
Applications for Compatible Video Sources
CCTV Video Monitoring
External display for compatible camera and video monitoring signals.
VGA Computer Display
Computer video display using a compatible multi-pin connection cable.
Composite Video Equipment
Monitor video from compatible AV and BNC source devices.
Equipment Video Display
Compact LCD monitor for equipment with matching video signals.
YZY DISPLAY
LCD DISPLAY SOLUTIONS
Shenzhen YZY Technology Co., Ltd.
For quotations, please share your intended application, required connection cable and order quantity.
