Small LCD Monitor
Created with Pixso.

8 Inch 1024x768 TFT LCD Monitor with HDMI VGA AV BNC Inputs and VESA Mount

8 Inch 1024x768 TFT LCD Monitor with HDMI VGA AV BNC Inputs and VESA Mount

8 Inch 1024x768 TFT LCD Monitor with HDMI VGA AV BNC Inputs and VESA Mount

Brand Name: YZY
Model Number: YC0806PMD-HA1
MOQ: 500 pcs
Price: Negotiable
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Description

YZY DISPLAY / SMALL LCD MONITOR
MULTI-INPUT VIDEO DISPLAY
8 Inch TFT
LCD Monitor
HDMI / VGA / AV / BNC

An 8-inch 4:3 LCD monitor with multiple video input interfaces, ABS plastic housing, USB multimedia functions and VESA mounting.
1024 × 768 4:3 Display VESA Mount

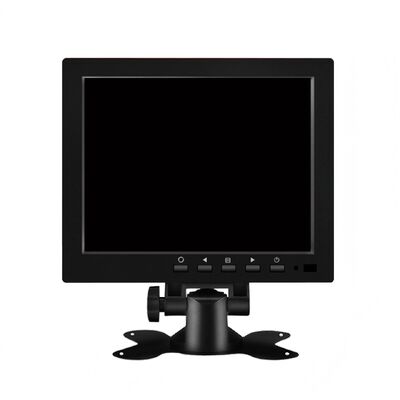

8 inch TFT LCD monitor front view with desktop stand
FRONT VIEW / PRODUCT PHOTO
1024 × 768
8 Inch / 4:3 Display
4 Video Inputs
HDMI / VGA / AV / BNC
VESA 75×75
Mounting Pattern
01 / VIDEO CONNECTIONS
Multiple Video Input Interfaces
HDMI, VGA, composite AV and BNC inputs connect to compatible computers, video equipment and monitoring systems.
8 inch LCD monitor HDMI VGA AV BNC USB connector layout
Signal Interface
HDMI Input — Digital video signal connection
VGA Input — Standard 15-pin analog video connection
AV / CVBS Input — Composite video connection
BNC Input — Coaxial video connection
USB Port — Multimedia playback function
02 / PRODUCT STRUCTURE
ABS Housing & VESA Mounting
8 inch LCD monitor rear housing and VESA mounting holes
REAR VIEW / PRODUCT PHOTO
Flexible Installation
The monitor features a matte black ABS enclosure with rear ventilation openings and a 75 × 75 mm VESA mounting pattern.
ABS plastic housing
VESA 75 × 75 mm
Rear ventilation openings
Built-in speaker
Front control buttons
Desktop stand included
03 / MULTIMEDIA FUNCTIONS
USB Multimedia & Audio
The monitor provides USB multimedia playback, supported image formats and audio output through its built-in speaker. A remote control is included.
USB Playback
USB multimedia playback function
Built-in Speaker
Integrated audio playback
Remote Control
Included with monitor
04 / TECHNICAL SPECIFICATIONS
Product Specifications
Parameter Specification
Screen Size 8 inch
Aspect Ratio 4:3
LCD Type TFT LCD
Resolution 1024 × 768
Brightness 250 cd/m²
Contrast Ratio 800:1
Display Colors 16.7M
Refresh Frequency 60Hz
Response Time 20ms (Typ., Tr+Td)
Video Interfaces HDMI / VGA / AV / BNC
USB Multimedia Supported
USB Image Formats JPEG / PNG / BMP
Built-in Speaker Yes
Housing Material ABS Plastic
Mounting VESA 75 × 75 mm
Standard Accessories Monitor / Power Supply / Stand / Remote Control
05 / DIMENSIONS & CONTROLS
Dimensions & Front Controls
8 inch TFT LCD monitor front dimensions and controls
DIMENSIONS / PRODUCT PHOTO
Front Panel Details
Front enclosure width: 200 mm
Front enclosure height: 164 mm
Source / Menu Buttons
Navigation Controls
Power Button
Desktop Stand
06 / APPLICATIONS
Application Areas
CCTV Video Monitoring
External display for compatible CCTV video outputs.
Computer External Display
Compact display for computers with compatible HDMI or VGA video output.
USB Multimedia Playback
Playback of supported image files through the USB multimedia function.
Equipment Video Display
Small external monitor for equipment with compatible video signals.
YZY DISPLAY
LCD DISPLAY SOLUTIONS
Shenzhen YZY Technology Co., Ltd.
Please specify your required video interface, display configuration and order quantity when inquiring.
