YBC035GJS‑Q1 3.5 Inch IPS TFT SPI Display Module

320×480 Resolution, ST7796U Driver IC, Optional Capacitive Touch, 4‑Line SPI Interface

Product Overview

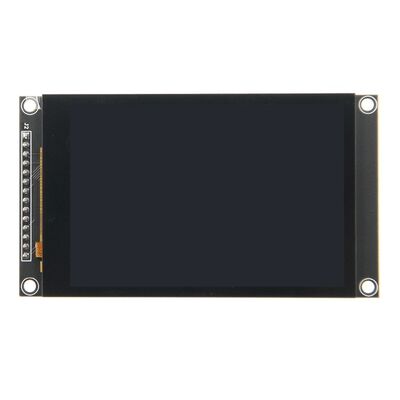

 Display Module Front View

YBC035GJS‑Q1 is a 3.5‑inch IPS TFT SPI display module, available with or without capacitive touch screen. Equipped with ST7796U driver IC, it delivers 320×480 high resolution with 16.7M rich colors. Adopt 4‑wire SPI interface, only few IO resources required. It supports 3.3V /5V MCU level compatibility, built‑in micro TF‑card slot, and comes with abundant open‑source demo codes for multiple MCU platforms, stable for embedded project development.

Key Highlights

Main Specifications

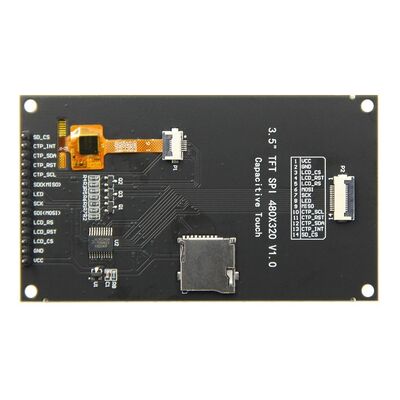

Back Side View

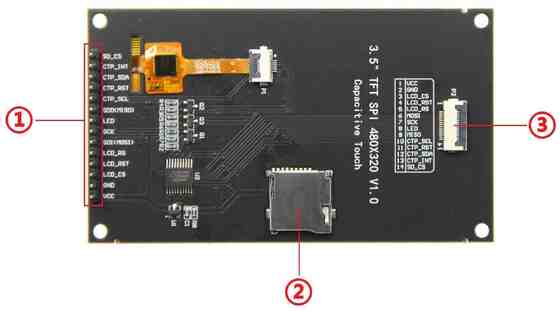

Module Back Side

Mechanical Dimension Drawing

Mechanical Outline Drawing

Application Areas

YBC035GJS‑Q1 3.5‑inch IPS TFT SPI display module is widely adopted for embedded development projects, industrial control handheld equipment, smart home control panel, instrument and meter display, IoT terminal, DIY electronic project, robot human‑machine interaction and various small embedded display devices. It is friendly for MCU secondary development with complete driver resources.

Embedded Industrial Device Scene

Smart Instrument Scene

Important Notice

• Do not press, hit or scratch screen surface with hard sharp objects to avoid panel damage.
• Do not disassemble the module arbitrarily; avoid heavy pressure on LCD and touch components.
• Keep away from water, oil, high‑temperature and high‑humidity working environment.
• Please adopt correct 5V /3.3V power supply, wrong voltage will burn out the hardware.
• Do not touch pins and components with wet hands to prevent short‑circuit damage.
• Use soft dry cloth for screen cleaning, do not spray liquid cleaner directly onto display.

Contact Us for More Information

If you are sourcing 3.5‑inch IPS TFT SPI display module for embedded and industrial projects, YBC035GJS‑Q1 is your reliable choice. We support sample testing and bulk orders, and can provide dimension drawings, demo code and full technical documentation.

Feel free to send inquiry for samples and bulk price.
