YBC170SPH‑D01 17 Inch TFT‑LCD Panel

SXGA 1280×1024, LVDS Interface, 16.7M Colors, Wide View Angle Industrial Display Module

Product Overview

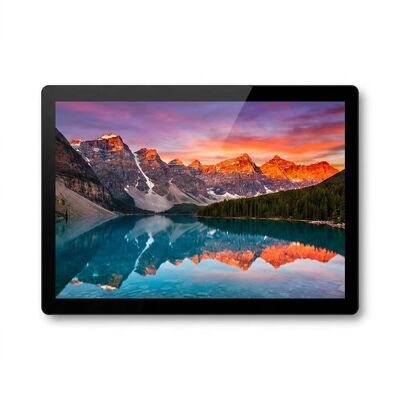

LCD Panel Front View

YBC170SPH‑D01 is a 17‑inch active‑matrix TFT‑LCD module with SXGA 1280×1024 resolution. It adopts LVDS 2 pixel/clock interface, supports 16.7M display colors with 6‑bit+FRC technology. Features wide viewing angle, anti‑glare 3H surface treatment, supports both landscape and portrait orientation. With long‑life LED backlight, stable performance for commercial digital display and industrial control terminal equipment.

Key Highlights

Main Specifications

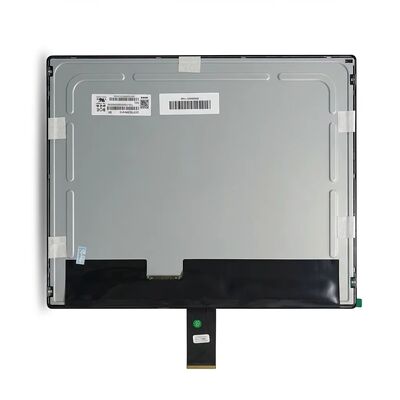

Back Side View

LCD Module Back Side

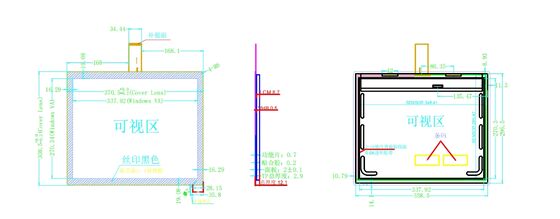

Mechanical Dimension Drawing

 Mechanical Outline Drawing

Application Areas

YBC170SPH‑D01 17‑inch TFT‑LCD panel is widely used for commercial digital display, industrial control system display terminal, automation equipment, kiosk display equipment, monitoring display unit and other industrial‑grade display devices. It supports landscape and portrait installation, meets long‑time stable running requirements for various industrial display integration projects.

Industrial Control Terminal Scene

Commercial Digital Display Scene

Important Notice

• Please follow the specified power‑on and power‑off sequence to avoid damage to YBC170SPH‑D01 LCD module.
• Avoid strong mechanical extrusion, impact and vibration on the display panel during assembly.
• Take anti‑static protection measures when operating the module, prevent ESD damage to circuit components.
• Do not touch polarizer surface with hard objects or bare hands, clean screen with soft dry cloth.
• Avoid condensation, water, corrosive gas and organic solvent environment for storage and operation.
• Do not disassemble the TFT‑LCD module arbitrarily, disassembly will void product warranty.

Contact Us

If you are sourcing 17‑inch industrial TFT‑LCD panel for commercial and industrial projects, YBC170SPH‑D01 is your reliable choice. We support sample testing and bulk orders, and can provide mechanical drawings, specification documents and relevant technical support.

Feel free to send inquiry for samples and bulk price.
