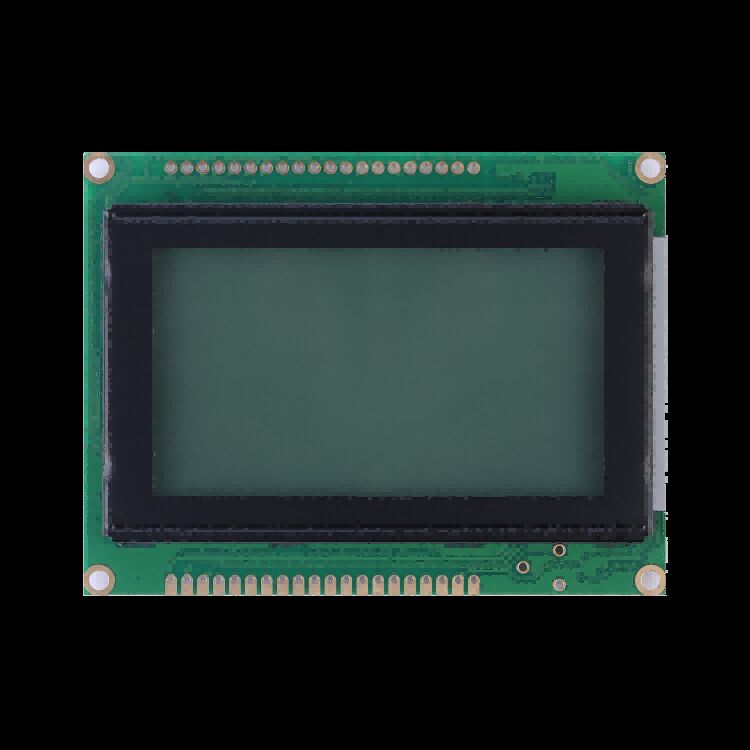

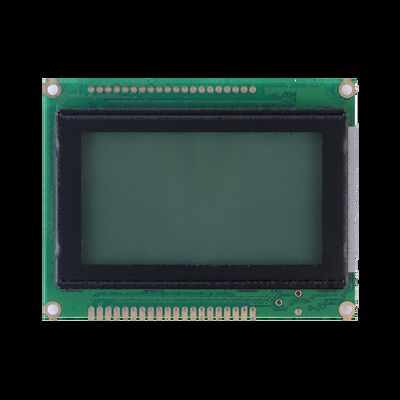

YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply
  • 名前
  • 名前
  • 名前
  • 名前

YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply

MOQ: 5個
価格: $4.68-5.99/pieces
standard packaging: 25*15*5
Delivery period: 14～60日
支払方法: T/T
Supply Capacity: 10000個
詳細情報
製品の説明
評価とレビュー
詳細情報
起源の場所
広東省、中国
ブランド名
YZY
証明
CE, ROHS
モデル番号
YMG12864SB-X10
ハイライト:

STN Blue Negative Display 128x64 LCD Module

,

5V Logic Supply Dot Matrix LCD Display

,

Wide Temperature Range Monochrome LCD Module

製品の説明
YZY 128x64 COB Dot Matrix LCD Module
Monochrome YMG12864SB-X10 COB Dot Matrix LCD Module with STN Blue Negative display, driven by SBN0064/SBN6400 ICs at 5V logic supply.
Product Overview
This industrial-grade 128x64 dot matrix LCD module features advanced COB (Chip On Board) packaging with STN blue negative transmissive display for high contrast monochrome effect. Driven by professional SBN0064/SBN6400 driver ICs, it offers reliable performance with 5.0V DC logic supply, 20-pin parallel interface, and excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage).
Technical Specifications
Display Type Monochrome COB Dot Matrix LCD Module (STN/Blue, Negative, Transmissive)
Part Number YMG12864SB-X10
Display Format 128(Dots) * 64(Dots)
Driver IC SBN0064 + SBN6400
Interface Type 20-pin Parallel Interface (J1/J2)
Logic Supply Voltage 5.0V DC (Typ.)
LCD Driving Voltage 9.3V DC (Typ.)
Driving Method 1/64 Duty, 1/9 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6 O'clock
Backlight Type White LED Backlight, Vf=2.8~3.2V, If=45mA
Module Dimension (PCB) 93.00mm(W) * 70.00mm(H) * 1.60mm(T)
Compliance RoHS
Key Features
  • 128*64 dot matrix COB packaging with STN blue negative transmissive display for high contrast and clear readability
  • Professional SBN0064/SBN6400 driver ICs with 1/64 Duty & 1/9 Bias driving method for stable long-term operation
  • 20-pin parallel interface with standard control logic (RS/R/W/E/RST/CS), compatible with mainstream embedded systems
  • Stable 5.0V logic supply voltage matching industrial standard power specifications
  • 6 O'clock optimized viewing direction for front-facing operation without visual distortion
  • White LED backlight with uniform illumination for low-light environments
  • Excellent wide temperature adaptability for reliable performance in harsh industrial conditions
  • Precise mechanical dimensions with detailed mounting parameters for consistent assembly
  • COB chip-on-board design for high structural reliability, anti-vibration and anti-fall
  • RoHS compliant for global market environmental requirements
Applications
  • Industrial control equipment and intelligent operation control panels
  • Portable measuring instruments and precision electronic test meters
  • Smart home appliance control panels and graphic display screens
  • Embedded system display modules and IoT terminal control devices
  • Medical portable devices and health monitoring equipment
  • Handheld consumer electronics and battery-powered display products
  • Office equipment and small instrument display interfaces
  • Smart sensor terminals and industrial data acquisition equipment
  • DIY electronic projects and embedded development kits
  • Automotive electronic auxiliary display components

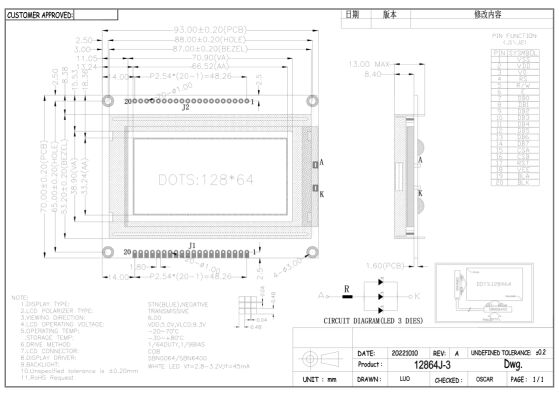

Product Drawing
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply 0

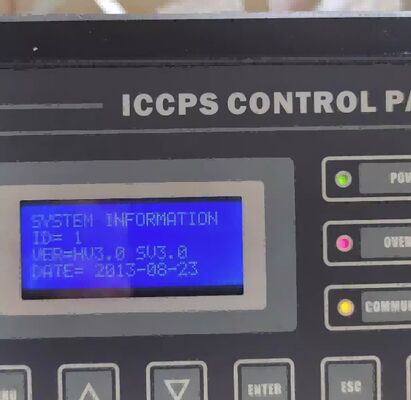

Product Application
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply 1
Our Partners
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply 2
Our Factory
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply 3
Shipment & Payment
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 5V Logic Supply 4
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution.
What are your main products?
Comprehensive range including LCD modules, touch modules, LCD panels, FPC boards and optoelectronic materials.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
