5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface
  • Nome
  • Nome
  • Nome
  • Nome

5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface

MOQ: 5 peças
Preço: $49.2~64/pieces
standard packaging: 19*8*5
Delivery period: 14-60 dias
Método do pagamento: T/T
Supply Capacity: 10.000 peças
Informações detalhadas
Descrição do produto
Avaliações e Comentários
Informações detalhadas
Lugar de origem
Cantão, China
Marca
YZY
Certificação
CE, ROHS
Número do modelo
YOK0550OGB-J1
Descrição do produto
5.5 Inch 256x64 Dot Matrix OLED Module with SSD1322 Driver
This industrial-grade 5.5-inch OLED module is driven by the professional SSD1322 driver IC, featuring a 256x64 high-resolution dot matrix green display with full viewing angle performance. It supports multi-interface compatibility including 8-bit 68XX/80XX parallel and 3-/4-wire SPI, with dual pin configuration options for different interface needs and a 15-pin core connection design for parallel mode. The module boasts excellent temperature adaptability (-20℃~+70℃ operating, -30℃~+80℃ storage), precise mechanical tolerance (±0.2mm), and a large active display area (135.65mm*33.89mm), making it an ideal choice for industrial control equipment, large-size embedded display systems, intelligent operation panels, professional instruments and various electronic projects with high display size and resolution requirements.
Product Specifications
Display Type 5.5" PMOLED Module (Green Display, Full Viewing)
Part Number GME050G-916
Driver IC SSD1322
Connection Type 15-Pin Parallel / 7-Pin SPI, PCB Mount Design
Working Voltage (VCC) 3.3V/5V DC (Standard Power Supply)
Interface Type 8-bit 68XX/80XX Parallel, 3-wire SPI, 4-wire SPI
Pin Configuration 15-Pin (Parallel): GND/VCC/D0-D7/RD/WR/DC/RST/CS
7-Pin (SPI): GND/VCC/SCL/SDA/RST/DC/CS
Pixel Resolution 256x64 Pixels
Display Color Green
Operating Temperature -20℃ ~ +70℃ (Wide Temperature Adaptation)
Storage Temperature -30℃ ~ +80℃
Viewing Direction All Viewing Angle (360° Clear Display)

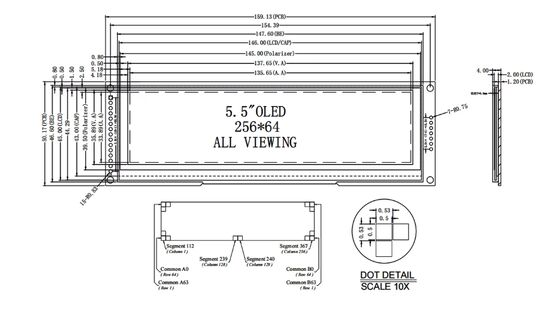

Active Area (A/A) 135.65mm(L)*33.89mm(W)
Viewing Area (V/A) 137.65mm(L)*35.89mm(W)
Module Core Size (LCD) 146.00mm(L)*45.00mm(W)
PCB Dimension 159.13mm(L)*50.17mm(W)
Iron Frame Thickness 0.8mm
Unnoted Tolerance ±0.2mm
Display Dot Pitch 0.53mm(L)*0.53mm(W) (Typ)
Compliance Standard RoHS (EU Environmental Instructions)
Product Features
  • 5.5-inch large-size PMOLED display with 256x64 high-resolution dot matrix, green display for clear visual effect in industrial scenarios
  • SSD1322 professional dedicated driver IC with stable performance, supporting multi-interface drive and high-precision display control
  • Multi-interface compatibility (8-bit 68XX/80XX parallel, 3/4-wire SPI) for flexible matching with various MCU/embedded systems
  • Dual pin configuration options (15-pin parallel /7-pin SPI) to meet different project wiring and interface design requirements
  • Full viewing angle display characteristic (360°), no visual loss from any direction, suitable for multi-position installation and viewing
  • Excellent wide temperature adaptability (-20℃~+70℃ operating, -30℃~+80℃ storage) for harsh industrial and outdoor environments
  • Large active display area (135.65mm*33.89mm) to display more text and graphic information for industrial equipment
  • Precise mechanical tolerance (±0.2mm) for consistent product quality and accurate installation matching in professional equipment
  • Integrated iron frame design (0.8mm thickness) for enhanced module structural stability and anti-collision performance
  • Optimized PCB and LCD size matching, compact structural design for large-size display module, saving installation space
  • Industrial-grade circuit design, stable signal transmission for parallel and SPI interfaces, no data loss during high-speed transmission
  • Green monochrome display with high contrast, ensuring clear visibility even in strong light industrial sites
  • Support for hardware reset (RST pin) and chip select (CS pin), easy system integration and multi-module cascade control
  • Low power consumption characteristic of PMOLED technology, balancing large-size display and energy saving for embedded devices
  • RoHS compliant materials and components, meeting EU environmental protection requirements for global market sales
Product Applications
  • Industrial control equipment and large-size intelligent operation panels with 256x64 high-resolution display requirements
  • Professional industrial instruments, precision measuring equipment and large-screen handheld testing devices
  • Embedded display systems, industrial single-board computers and large-size control equipment display modules
  • Intelligent factory equipment, industrial automation control terminals and production line monitoring display screens
  • Building automation systems, large-size intelligent control panels and property management display equipment
  • Power system equipment, electric power monitoring instruments and large-size data display terminals
  • Communication base station equipment, network monitoring terminals and industrial communication display modules
  • Smart transportation equipment, traffic control instruments and road condition monitoring display screens
  • Marine and aerospace auxiliary equipment, industrial-grade display modules with wide temperature adaptation
  • Medical equipment, large-size professional medical instrument display panels and health monitoring equipment
  • Financial self-service equipment, bank terminal display screens and large-size financial electronic display components
  • Commercial service equipment, intelligent vending machines and large-size self-service terminal display modules
  • Outdoor electronic equipment, field detection instruments and large-size display devices for harsh environments
  • DIY electronic projects, high-performance microcontroller development boards and large-size open-source hardware display accessories
  • Various industrial and professional electronic products with large-size, high-resolution monochrome display needs

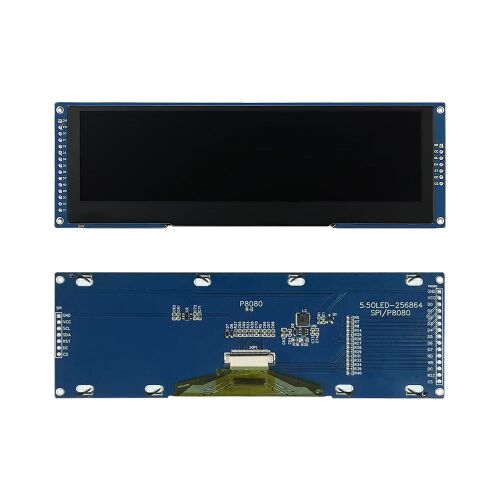

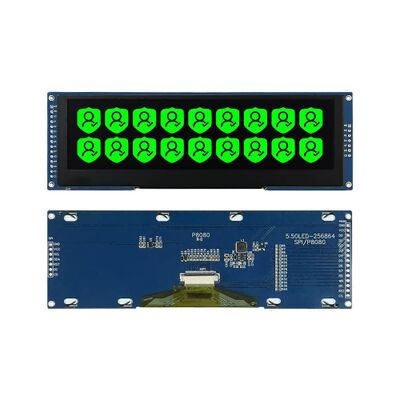

Product Image
5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface 0
Application Examples
5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface 1
Cooperative Partners
5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface 2
Manufacturing Facility
5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface 3
Payment & Logistics
5.5 Inch 256x64 OLED Module SSD1322 15-Pin 3/4-wire SPI 8-bit Parallel Interface 4
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.
Do you supply samples?
Yes, we provide samples for evaluation, supporting small batch testing for your project development.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery for your convenience.
