10.1 Inch Industrial Computer IP65 Fanless HMI 350 Cd/M2 Industrial Touch Panel PC

Products

10.1 Inch Industrial Computer IP65 Fanless HMI 350 Cd/M2 Industrial Touch Panel PC

MOQ:	300
Price:	$180-232/pieces
Standard Packaging:	460 ×445 × 100mm/3.4KG
Delivery Period:	10 work days
Payment Method:	T/T
Supply Capacity:	5K/Month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Model Number

PC101H

Type:

Industrial Computer

Display Size:

10.1 Inch

Supplier Type:

Factory

Mounting Type:

Embedded

Packing Dimensions:

460 ×445 × 100mm

Net Weight:

2.9KG

Gross Weight:

3.4KG

Highlight:

10.1 inch industrial computer

Industrial Computer IP65 Fanless

350 Cd/M2 Industrial Touch Panel PC

Product Description

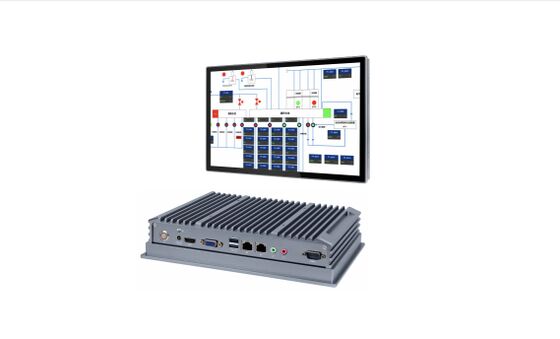

10.1 Inch H Type Industrial Computer Embedded Touch IP65 Fanless HMI for Industrial Monitoring

Product Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
24/7 Operation: Designed for continuous use with robust performance and long service life.

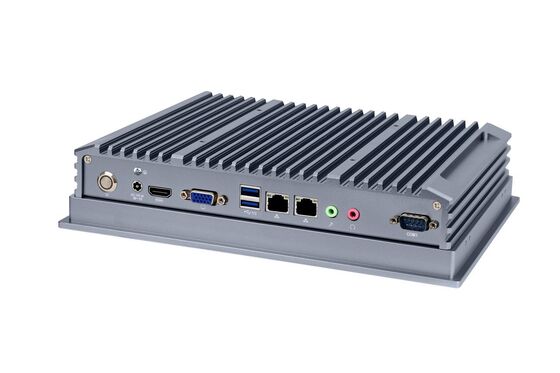

Product Six Views

Product Dimensions

I/O Interface Diagram

Extensible Interface

Product Specifications

CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588

Memory: 4G/8G/16G/32G/64G

Storage: 64G/128G/256G/512G/1TB/2TB

Touch Type: Multi-point Capacitive / 5-Wire Resistive

Touch Driver Support: Windows 7/8/10, Linux, Android

LCD Display: 10.1" XGA TFT (1280*800)

Active Area: 216.96mm*135.6mm

Viewing Angle: 89° (L/R/T/B)

Brightness: 350 cd/m²

I/O Interfaces: 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot

Dimensions: 452.50mm × 272.50mm × 55.98mm

Power Input: DC 12V (9-30V optional)

Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting | Cantilever Mounting

Packing List

No.	Item	QTY
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

2. Do not place in humid environments to prevent condensation and component damage.

3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

5. Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
