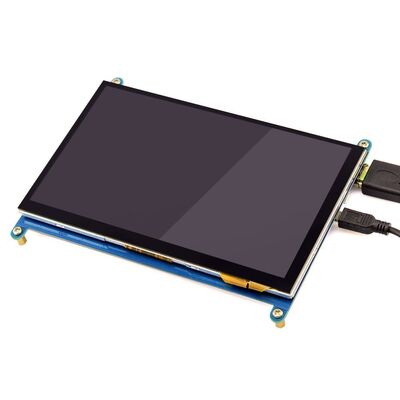

Name: YQX6-7A 7 Inch 1024x600 Capacitive Touch Screen Raspberry Pi Compatibility
Brand: Shenzhen YZY Technology Co., Ltd
SKU: YQX6-7A
Price: 24.50 USD
Availability: InStock

MOQ:	100
Price:	$23.5-26.5/pieces
Standard Packaging:	15414338(mm)/180g
Delivery Period:	30-45days
Payment Method:	T/T
Supply Capacity:	50K/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YZY

Certification

CE/ROHS

Model Number

YQX6-7A

Type:

7 Inch 1024x600 Capacitive Touch Screen

Display Size:

7 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

7 Inch 1024x600 Capacitive Touch Screen

7 Inch HDMI LCD USB Capacitive Touch 1024x600

7 Inch Capacitive Touch Screen For Raspberry Pi

Product Description

YQX6-7A 7 Inch IPS HDMI LCD Display with 1024*600 Resolution and Raspberry Pi Compatibility

Product Overview

7-inch IPS TFT touch screen with 1024*600 resolution, 5-point capacitive touch, and compatibility with Raspberry Pi and other mini PCs.

Key Features

7-inch standard display with 1024*600 hardware resolution (supports up to 1920*1080 via software configuration)
5-point capacitive touch screen
Independent backlight control for power saving
Compatible with Raspberry Pi, BB Black, Banana Pi, and other mini PCs
Functions as a general-purpose HDMI monitor for computers
Supports multiple operating systems including Raspbian, Ubuntu, Kali-Linux, Kodi, and Windows 10 IoT
CE and RoHS certified

Technical Specifications

Size	7.0 inch
SKU	MPI7002
Resolution	1024*600 dots
Touch	5 point capacitive touch
Dimensions	164.9 * 124.27 mm
Weight	380 g (including packaging)

Hardware Diagram

Backlight Power switch: Controls the backlight on/off for power saving
USB Touch/power supply connector: For power supply and touch output (both ports have identical functionality)
HDMI interface: Connects motherboard to LCD monitor for HDMI transmission

Setup Instructions for Raspbian/Ubuntu Mate/Win10 IoT Core

Step 1: Install Raspbian Official Image

Download the latest image from the official source
Install the system following official tutorial steps

Step 2: Modify config.txt

After installation, open the config.txt file in the Micro SD Card root directory and add the following code at the end:

max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0

Step 3: Connect Hardware

Insert the Micro SD Card to Raspberry Pi
Connect Raspberry Pi and LCD with HDMI cable
Connect USB cable between Raspberry Pi and LCD
Power on Raspberry Pi (use full 2A power supply)

Display Rotation Configuration

Rotate Display Direction

Open config.txt: sudo nano /boot/config.txt
Add rotation parameter (0: 0°; 1: 90°; 2: 180°; 3: 270°)
Save changes and reboot: sudo reboot

Rotate Touch Direction

Install libinput: sudo apt-get install xserver-xorg-input-libinput
Create xorg.conf.d directory: sudo mkdir /etc/X11/xorg.conf.d
Copy configuration file: sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/
Edit configuration file: sudo nano /etc/X11/xorg.conf.d/40-libinput.conf
Add calibration matrix for your rotation angle
Reboot: sudo reboot

Calibration Matrix Parameters:
0°: "1 0 0 0 1 0 0 0 1"
90°: "0 1 0 -1 0 1 0 0 1"
180°: "-1 0 1 0 -1 1 0 0 1"
270°: "0 -1 1 1 0 0 0 0 1"

Using as PC Monitor

Connect computer HDMI output to LCD HDMI interface
Connect LCD's USB Touch interface to device USB port
For initial testing, use LCD as the only connected monitor
